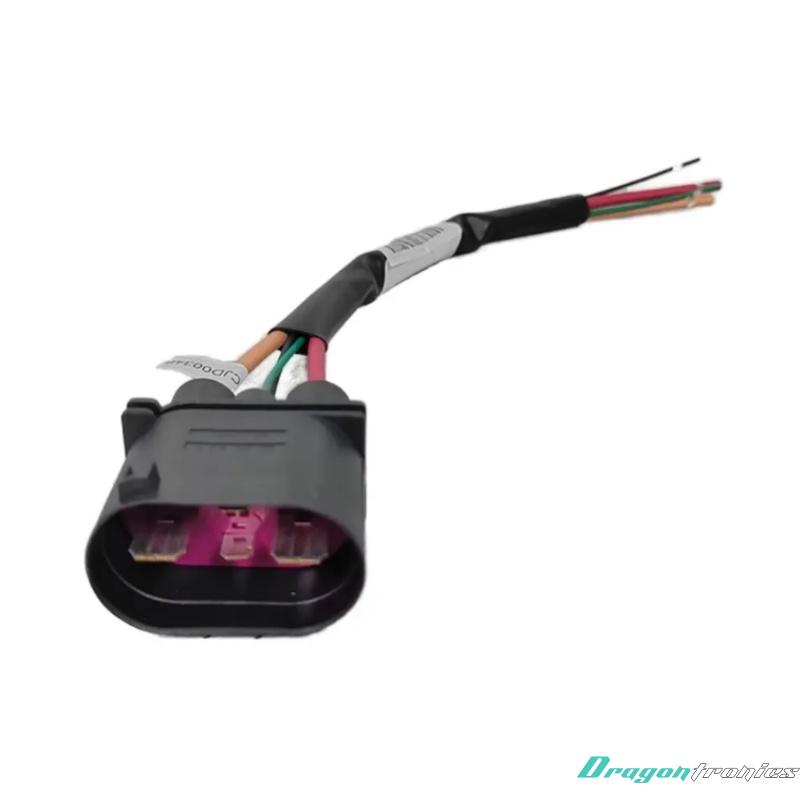

Automotive cooling fan wiring harness

An Automotive Cooling Fan Wiring Harness is a pre-assembled set of wires, connectors, and relays that provide the necessary electrical connections for the operation of the cooling fan system in a vehicle. This harness is responsible for transmitting power from the vehicle's electrical system (such as the battery or alternator) to the cooling fan motor and other associated components like temperature sensors or relays, ensuring the proper functioning of the vehicle’s engine cooling system.

The cooling fan in an automotive system helps regulate the engine temperature by drawing air through the radiator to keep the engine cool, especially when the vehicle is idling or moving slowly. The wiring harness ensures that all components of the fan system work together reliably and efficiently.

Key Features of an Automotive Cooling Fan Wiring Harness:

1. Wiring Connections:

o The wires in the harness carry electrical power from the battery or alternator to the cooling fan motor, relay, or control module. They are made of high-temperature-resistant materials to withstand the heat produced by the engine and other electrical systems in the vehicle.

2. Connectors and Terminals:

o The connectors and terminals in the harness are designed to plug directly into the cooling fan motor, the fan relay, temperature sensors, and the vehicle’s ECU (Engine Control Unit) or cooling fan control module. They ensure proper and secure electrical connections.

o Common types of connectors include two-pin, three-pin, or four-pin depending on the complexity of the cooling fan system.

3. Fuses and Relays:

o The wiring harness often includes fuses to protect the cooling fan circuit from overload or short circuits. These fuses will blow if the current exceeds safe levels, preventing damage to the fan motor or other electrical components.

o Relays help control the flow of electricity to the cooling fan, switching it on or off depending on signals received from the temperature sensors or the ECU. The relay ensures that the fan operates only when needed, saving power and reducing wear on the system.

4. Grounding Wires:

o Ground wires are included in the harness to provide a return path for the electrical current, ensuring that the fan motor operates safely and effectively.

5. Thermal Protection:

o Because the cooling fan operates in close proximity to the engine, the wiring harness is often designed with insulated or heat-resistant sheathing to protect the wires from excessive temperatures and prevent overheating.

6. Pre-assembled Design:

o Automotive cooling fan wiring harnesses are typically pre-assembled and custom-designed to match the specific vehicle model, making installation quicker and easier. The wiring lengths and connectors are pre-terminated to ensure a direct fit.

Functions of the Automotive Cooling Fan Wiring Harness:

1. Power Delivery to the Cooling Fan:

o The primary function of the harness is to supply electrical power to the cooling fan motor from the vehicle’s power system. The harness ensures that the fan motor receives the correct voltage and current to operate effectively.

2. Control of Fan Operation:

o The wiring harness carries control signals from temperature sensors or the vehicle’s ECU to the fan relay, which turns the cooling fan on or off based on the engine's temperature.

o If the engine gets too hot, the ECU or temperature sensor sends a signal to the relay to activate the fan, ensuring the engine does not overheat.

3. Protection Against Electrical Faults:

o The inclusion of fuses and relays in the harness protects the cooling fan system from overvoltage, short circuits, and other electrical issues, ensuring safe operation and preventing damage to components.

4. Ensuring Safe Grounding:

o The harness includes grounding wires that complete the electrical circuit, ensuring safe operation by directing excess current back to the vehicle’s chassis.

Applications of the Automotive Cooling Fan Wiring Harness:

1. Cooling Fan Systems:

o The wiring harness is an essential part of the cooling fan system in all modern vehicles. Whether it's a radiator fan, AC condenser fan, or electric fan, the harness ensures proper operation of these components, which are vital for maintaining engine temperature within the optimal range.

2. Vehicle Types:

o The cooling fan wiring harness is used in a wide variety of vehicles, including:

§ Passenger cars

§ Trucks

§ SUVs

§ Motorhomes

§ Electric and hybrid vehicles

o It is used in both single-fan and dual-fan configurations.

3. Performance and Modified Vehicles:

o In performance or modified vehicles, aftermarket cooling fans are often installed to improve cooling efficiency. The wiring harness can be used for custom setups or to replace damaged or worn-out harnesses in these systems.

4. Electric and Hybrid Vehicles:

o Electric vehicles (EVs) and hybrid cars often have cooling fan systems for cooling the battery pack or the electric motor. These vehicles rely on a robust and efficient wiring harness to regulate temperatures and ensure the longevity of the battery and electrical components.

Conclusion:

An Automotive Cooling Fan Wiring Harness is a crucial component of the vehicle’s engine cooling system, ensuring that the cooling fan operates efficiently and safely. By providing reliable electrical connections, it helps maintain the engine’s optimal temperature, preventing overheating and ensuring the longevity of engine components. Whether replacing a faulty harness or installing an aftermarket fan, the wiring harness plays an essential role in keeping your vehicle's engine cool and functioning properly under various driving conditions.
