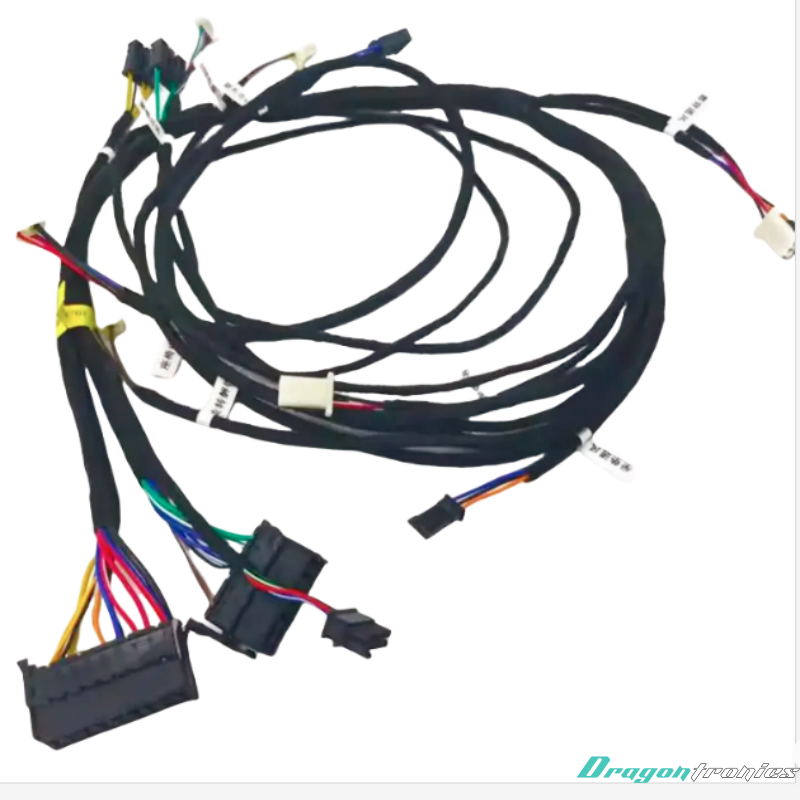

Custom Wiring Harness for New Energy Vehicles

A Custom Wiring Harness for New Energy Vehicles (NEVs) refers to a specialized electrical wiring system designed to meet the specific requirements of new energy vehicles—including electric vehicles (EVs), hybrid electric vehicles (HEVs), and plug-in hybrid electric vehicles (PHEVs). These vehicles use advanced powertrains and energy storage systems, which demand unique wiring solutions to integrate various components like batteries, electric motors, regenerative braking systems, charging ports, and control units.

Key Functions of a Custom Wiring Harness for NEVs:

1. Power Distribution:

o One of the primary roles of the wiring harness in NEVs is to distribute high-voltage power from the battery pack to critical systems such as the electric motor, inverter, and DC-DC converters (which convert high-voltage power to low-voltage power for accessories and control systems).

2. Signal and Data Transmission:

o Modern NEVs use advanced communication protocols like CAN (Controller Area Network), LIN (Local Interconnect Network), and Ethernet for data transmission between various control units and modules. Custom wiring harnesses are designed to carry these signals securely and without interference, ensuring proper operation of battery management systems (BMS), motor control units (MCU), infotainment systems, and other electronics.

3. Battery Pack Connections:

o In EVs and PHEVs, the custom wiring harness facilitates the connection between the battery pack and other parts of the vehicle’s electrical system. This includes battery management systems (BMS) that monitor voltage levels, charge cycles, temperature, and health of the battery to optimize performance and safety.

4. Charging System Integration:

o The harness integrates the vehicle’s charging system, including the charging port, on-board charger (OBC), and power electronics. This system controls the flow of electricity from an external power source (e.g., wall outlet, charging station) to the vehicle's battery, ensuring the battery is safely and efficiently charged.

5. Safety and Protection:

o Wiring harnesses for NEVs are designed with safety in mind, especially given the high voltages involved in the battery and power systems. The harness includes protective features like fuses, circuit breakers, and insulated cables to prevent short circuits, overheating, and other electrical hazards.

6. Thermal Management:

o Many NEVs require specialized thermal management for high-voltage systems. Custom wiring harnesses may be integrated with temperature sensors to monitor and regulate the heat produced by the battery and motor, as well as coolant systems that help maintain safe operating temperatures for critical components.

7. Energy Recovery Systems:

o Regenerative braking and other energy recovery systems used in NEVs need to be integrated into the wiring harness. This requires specific wiring for brake actuators, electric motors, and power electronics to enable the vehicle to recover and store energy during braking or deceleration.

Applications of Custom Wiring Harnesses for NEVs:

1. Electric Vehicles (EVs):

o Full electric vehicles rely on custom wiring harnesses to connect the battery, electric motor, inverter, and charging port, ensuring the smooth flow of power between these components. EVs also rely on these harnesses for energy recovery systems like regenerative braking and power management systems.

2. Hybrid Electric Vehicles (HEVs):

o In hybrid vehicles, custom wiring harnesses must integrate both the internal combustion engine (ICE) and electric powertrain. The harness needs to support dual power sources, distributing power between the gas engine, electric motor, and battery, along with managing energy flow between them.

3. Plug-in Hybrid Electric Vehicles (PHEVs):

o Similar to HEVs, PHEVs feature both an internal combustion engine and an electric motor, but the electric motor can be charged through an external charging source. The custom wiring harness enables the coordination between the ICE, the electric motor, the high-voltage battery, and the charging system.

4. Battery Electric Commercial Vehicles:

o Custom wiring harnesses are also used in larger electric trucks, buses, and other commercial vehicles. These vehicles require highly durable and efficient wiring systems to handle larger battery packs, more robust charging systems, and heavy-duty powertrains.

5. Autonomous and Connected Vehicles:

o In autonomous or connected new energy vehicles, custom wiring harnesses also support communication between sensors (LiDAR, radar, cameras), control units, and infotainment systems. These systems rely on robust and interference-free data transmission, which the harness must provide.

Key Features of Custom Wiring Harnesses for NEVs:

1. High-Voltage Capability:

o NEVs often use high-voltage systems (typically 400V, 800V, or more) to power their electric motors and battery packs. Wiring harnesses in these vehicles are designed to handle these higher voltages while maintaining safety standards and electrical efficiency.

2. Durability and Flexibility:

o These wiring harnesses are made from durable, high-quality materials that can withstand the rigors of automotive environments, such as temperature extremes, vibration, moisture, and UV exposure. The wires are often flexible to accommodate vehicle movement and installation constraints.

3. Lightweight Design:

o Since energy efficiency is a critical factor in NEVs, custom wiring harnesses are often designed to be as lightweight as possible while still maintaining the required durability and performance.

4. Modular Construction:

o Custom harnesses can be modular, meaning they can be tailored to specific vehicle models or configurations. This allows for scalability and adaptability in mass production or when building different variants of NEVs (e.g., with or without certain options like a charging port or advanced sensors).

5. Compliance with Automotive Standards:

o Wiring harnesses for NEVs are built to meet stringent automotive safety standards, including ISO 26262 for functional safety and UL standards for electrical wiring. They also adhere to automotive industry regulations for electromagnetic interference (EMI) and signal integrity.

Benefits of Custom Wiring Harnesses for NEVs:

1. Optimized Performance:

o A custom wiring harness ensures that all systems (motor, battery, sensors, etc.) are properly integrated, allowing for optimized performance of the electric drivetrain and charging systems. It enables smooth and efficient energy flow within the vehicle.

2. Safety:

o Given the high-voltage systems and complex electronics in NEVs, custom harnesses provide safe and reliable electrical connections, reducing the risk of shorts, overheating, and electrical failures. Built-in safety mechanisms like fuses and circuit breakers help ensure the vehicle remains safe during operation.

3. Customization and Scalability:

o A custom wiring harness can be tailored to the specific needs of different models, whether it's an electric car, hybrid vehicle, or commercial EV. This level of customization ensures that each vehicle is built with the right wiring configuration and ensures easy installation and maintenance.

4. Reliability and Longevity:

o Custom harnesses are designed to be long-lasting and capable of withstanding harsh conditions like heat, moisture, and vibration. This contributes to the overall reliability of the vehicle's electrical systems over its lifespan.

5. Cost Efficiency:

o While custom wiring harnesses can be more expensive upfront, they provide long-term cost savings by improving the efficiency and safety of the vehicle, reducing the need for costly repairs or modifications later on.

Conclusion:

A Custom Wiring Harness for New Energy Vehicles plays a critical role in the design, integration, and operation of modern electric and hybrid vehicles. These harnesses are specifically built to handle the unique needs of NEVs, from high-voltage power distribution to data transmission between complex systems. By ensuring reliable connections, safety, and optimized energy flow, they enable the smooth operation of various components like batteries, motors, inverters, charging systems, and advanced electronics. As the market for new energy vehicles continues to grow, these custom wiring solutions will be increasingly important in ensuring that vehicles are safe, efficient, and high-performance.
