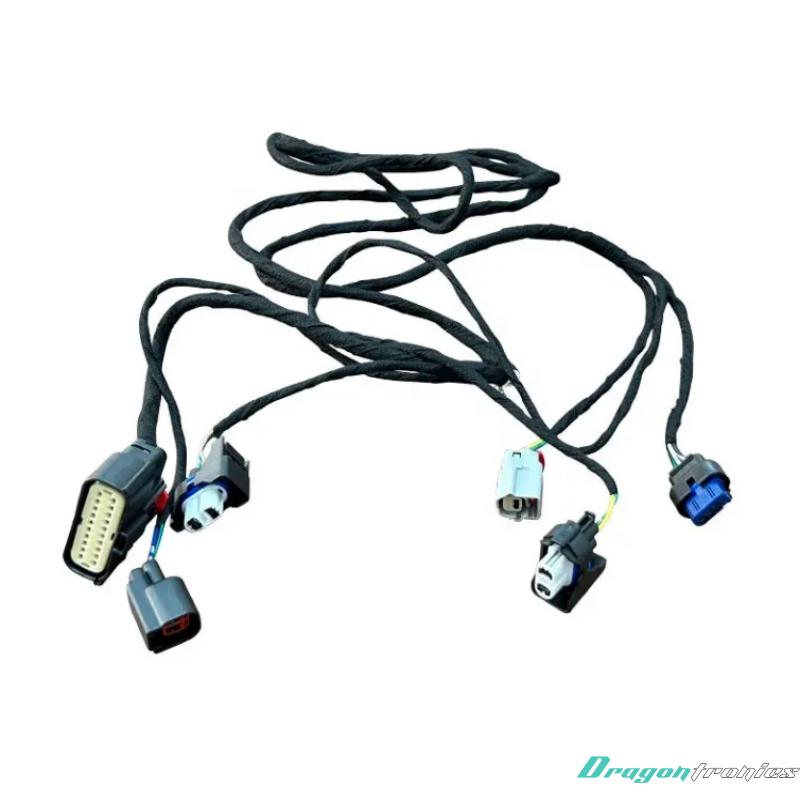

Front Headlight Wiring Harness

A front headlight wiring harness is a set of electrical wires, connectors, and components that provide power and signals to the headlights of a vehicle. It connects the headlights to the vehicle's electrical system, allowing for proper operation of the lights. The harness typically includes wires for the low beams, high beams, turn signals, and possibly additional functions like daytime running lights (DRLs) or fog lights.

Function of the Front Headlight Wiring Harness:

The front headlight wiring harness serves as a crucial electrical link between the vehicle's headlights (and associated lighting systems) and the vehicle's power source (typically the battery or alternator). Its primary functions include:

1. Power Distribution:

o It delivers electrical power from the vehicle's battery or alternator to the headlight assembly, ensuring that both the low beam and high beam headlights function as needed.

2. Signal Control:

o The harness carries signals that control various lighting functions such as turn signals, daytime running lights (DRLs), fog lights, and high/low beam switching.

o It enables the vehicle's headlight switch and multi-function stalk to communicate with the headlights and turn signal lights.

3. Grounding:

o The wiring harness includes ground wires, providing a return path for electrical current and helping to complete the circuit, ensuring that all lights operate correctly and safely.

4. Safety Features:

o The wiring harness includes fuses or relays to protect the system from electrical overloads, preventing damage to the lights or the vehicle's electrical system in the case of faults or shorts.

Applications of the Front Headlight Wiring Harness:

The front headlight wiring harness is widely used in the following areas:

1. Automobiles:

o The most common application is in passenger cars, trucks, SUVs, and other vehicles, where it connects the headlights and front lighting systems to the vehicle's electrical system. It ensures that the vehicle's headlights, turn signals, fog lights, and DRLs are powered and controlled correctly.

2. Motorcycles:

o On motorcycles, a front headlight wiring harness connects the headlight to the electrical system, ensuring proper operation of the headlamp, turn signals, and other lights like DRLs or auxiliary lights.

3. Commercial Vehicles:

o Larger vehicles like buses, trucks, and vans use front headlight wiring harnesses to manage the operation of multiple front lights and ensure visibility in different driving conditions.

4. Off-Road Vehicles:

o Off-road vehicles, such as ATVs or 4x4 trucks, often have specialized headlight wiring harnesses designed to handle rugged conditions and support additional lights, such as fog lights or auxiliary LED lights.

5. Replacement and Aftermarket:

o The harness is also used for replacement parts when an original headlight wiring harness becomes damaged, corroded, or malfunctioning. Aftermarket wiring harnesses may be installed to add additional lighting features, such as upgraded headlights, auxiliary lights, or custom lighting systems.

Summary of Function and Application:

· Function: The wiring harness connects and powers the headlight system (including low beams, high beams, turn signals, etc.), ensuring safe and proper operation by transmitting electrical power and signals, and providing grounding and protection.

· Applications: Used in various vehicles such as cars, motorcycles, trucks, and off-road vehicles to support the front lighting systems, as well as in replacement and aftermarket upgrades.
