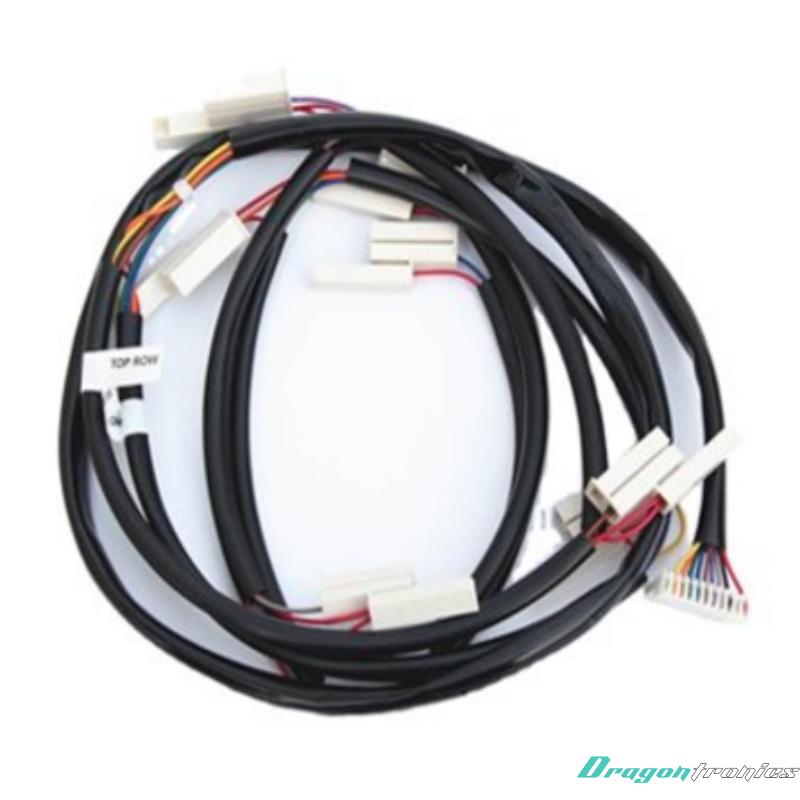

An Industry Vending Machine Wire Harness is a custom-made bundle of wires and connectors designed specifically for use in vending machines and other automated systems. These wire harnesses serve as the essential pathways for electrical signals, power, and control between the different components of the vending machine, ensuring that it operates smoothly and efficiently.

Key Functions of an Industry Vending Machine Wire Harness:

1. Power Supply:

o The wire harness provides electrical power from the main source to various components of the vending machine, including the motors, displays, payment systems, and cooling units (if applicable). It ensures that all parts of the machine receive the correct voltage and current.

2. Signal Transmission:

o It helps in transmitting signals between different parts of the vending machine, such as between the microcontroller (or control board) and other components like the product dispensing mechanism, coin acceptors, bill validators, and keypads.

3. Control and Communication:

o The wire harness is responsible for facilitating communication between various control units in the vending machine. This may include the communication between the control board and payment processing units, inventory sensors, temperature sensors, and product delivery mechanisms.

4. Safety Features:

o It includes safety connections to components like the door switches (to detect if the vending machine door is open or closed), overload protection (to prevent electrical faults), and fuse connections to safeguard the machine's circuitry.

Applications of an Industry Vending Machine Wire Harness:

1. Product Dispensing Mechanism:

o The wire harness connects the motors that power the product dispensing system, ensuring that the correct item is dispensed when a customer makes a selection.

2. Payment Systems:

o Wire harnesses connect components such as coin acceptors, bill validators, credit card readers, and mobile payment systems to the control board, allowing the vending machine to process payments.

3. Temperature Control:

o In refrigerated vending machines, wire harnesses connect the cooling system (such as compressors or fans) to the power source and thermostat, ensuring that the machine maintains the correct temperature for food or beverages.

4. User Interface:

o The wire harness connects components like the keypad or touchscreen, LED displays, and buttons to the control board. This allows customers to interact with the vending machine to make selections, check product availability, or get change.

5. Sensors and Detection Systems:

o Wire harnesses connect various sensors to the control board, such as inventory sensors (to track available products), door sensors (to detect if the machine's door is opened), and weight sensors (to detect if a product has been successfully dispensed).

6. Lighting:

o It connects the LED lights that illuminate the product area or display, ensuring the machine is easy to use and attractive to customers, especially in low-light environments.

7. Safety and Security:

o Wire harnesses also integrate security features such as tamper sensors or alarm systems to alert operators to potential issues like attempted theft or machine malfunctions.

Advantages of Industry Vending Machine Wire Harnesses:

1. Streamlined Installation:

o A wire harness simplifies the assembly process of vending machines by grouping wires together in an organized manner. This reduces installation time and complexity.

2. Improved Durability and Safety:

o The wire harness is designed to withstand the wear and tear of daily usage in harsh environments, such as high foot traffic areas. It is built to be resistant to vibrations, temperature changes, and moisture exposure.

3. Reduced Risk of Wiring Errors:

o Since the wires are pre-arranged in a harness, there is less chance of wiring mistakes during installation or maintenance. The color-coded wires and connectors ensure proper connections and reduce troubleshooting time.

4. Efficient Maintenance and Repairs:

o If any part of the vending machine experiences a malfunction, the wire harness makes it easier to identify the problematic component. It also simplifies the process of replacing or repairing specific parts of the wiring without affecting the whole system.

5. Compact and Organized Design:

o The wire harness keeps the wiring neat, preventing tangling or damage. A compact design is particularly important in vending machines, where space is limited.

6. Enhanced Reliability:

o The components of the wire harness are designed to meet industry standards for reliability, safety, and durability, ensuring that the vending machine continues to function properly over time.

Conclusion:

An Industry Vending Machine Wire Harness is a vital component that ensures the seamless operation of vending machines by connecting various internal systems such as the power supply, payment mechanisms, sensors, motors, and user interfaces. It streamlines installation, improves reliability, and provides an organized, durable, and safe way to manage electrical connections in a vending machine. Whether for dispensing products, processing payments, or ensuring machine safety, the wire harness plays a key role in the effective and efficient operation of vending machines.
