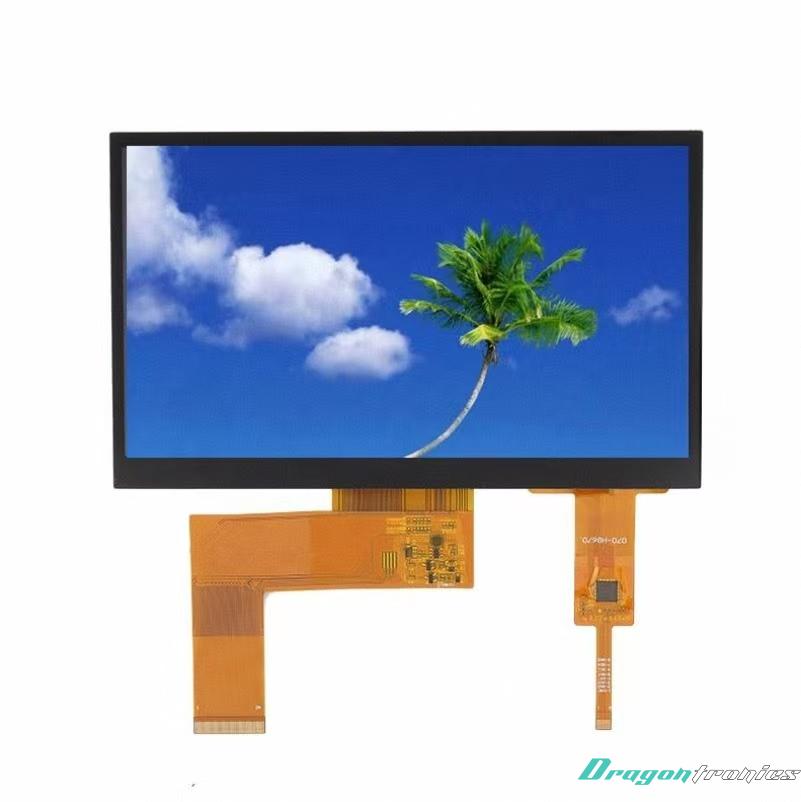

4.5 Inch TN TFT LCD Module Display 480×800

4.5" TN TFT LCD Module

1. Specifications

Specification Notes

• TN / Normally White:
o Default display state is white when no voltage is applied
o Provides fast response time and cost-effective performance, with limited viewing angles

• 480×800 Resolution:
o WVGA resolution with RGB sub-pixels
o Suitable for detailed graphics, images, and GUI applications

• 3 o’clock Viewing Direction:
o Best image quality when viewed from the right side
o Viewing from other angles may result in contrast or color shift

• SPI + 24-bit RGB Interface:
o 3-wire SPI: Used for command control and initialization
o 24-bit RGB: Handles high-speed pixel data transmission
o Combination provides good performance and flexible control

2. Functions

Display Function

• Displays full-color text, graphics, icons, and advanced UI elements
• Supports 24-bit color depth for rich and detailed images

Communication Function

• Uses SPI interface for commands and configuration
• Uses 24-bit RGB interface for real-time display data
• Compatible with microcontrollers and embedded processors

Control Function

• Supports standard display operations:
o Display ON/OFF
o Sleep / standby mode
o Address window setting
o Screen orientation control

Performance Characteristics

• Fast response time typical of TN panels
• Optimized viewing from the right side (3 o’clock)
• Cost-effective solution for medium-resolution displays

3. Applications

This 4.5-inch TN TFT LCD module is suitable for a wide range of applications:

Industrial Equipment

• Control panels
• Monitoring systems
• Instrument displays

Consumer Electronics

• Portable multimedia devices
• Handheld display units
• Smart interface panels

Embedded Systems / IoT

• Microcontroller or processor-based systems (e.g., STM32, ESP32, Raspberry Pi)
• Human-Machine Interface (HMI)
• Smart control systems

Portable Devices

• Data loggers
• Field testing tools
• Portable monitoring devices

 Summary

This 4.5-inch TN TFT LCD module features a 480×800 resolution, 3 o’clock viewing direction, and SPI + 24-bit RGB interface. It offers a cost-effective and responsive display solution for embedded systems, industrial equipment, and portable devices requiring reliable graphical performance and flexible integration.
