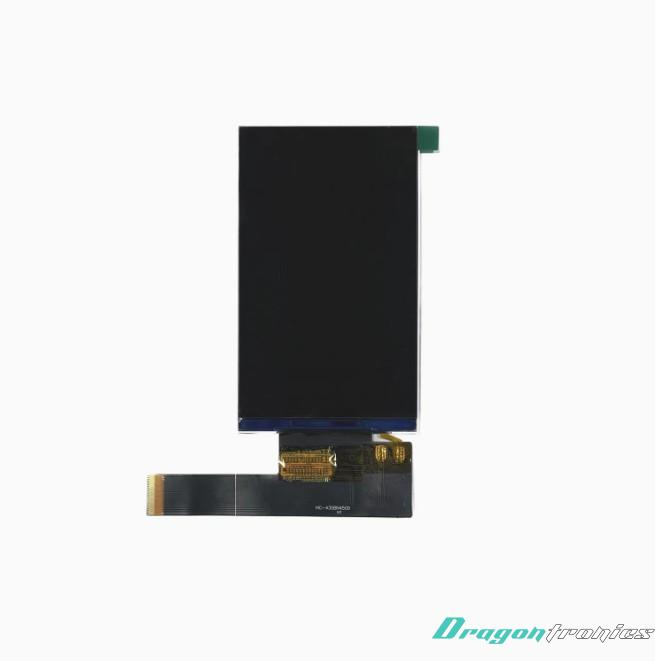

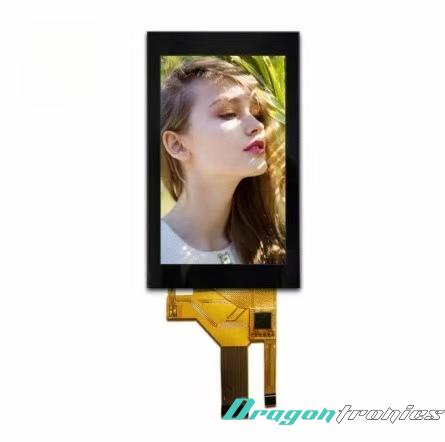

4.3 Inch IPS TFT LCD Module LCD Display 480*800

4.3" IPS TFT LCD Module

1. Specifications

Specification Notes

• IPS / Normally Black:
o Default display state is black when no voltage is applied
o Provides excellent color accuracy, high contrast, and wide viewing angles

• Transmissive Mode:
o Requires backlight for visibility
o Delivers bright and clear images in indoor environments

• 480×800 Resolution:
o High-resolution WVGA format with RGB sub-pixels
o Suitable for detailed graphics, images, and advanced UI design

• Full Viewing Angle:
o Maintains consistent color and contrast from all directions
o Ideal for applications requiring multi-angle visibility

2. Functions

Display Function

• Displays high-quality text, graphics, icons, and advanced UI elements
• Supports full-color rendering with rich color depth
• Ensures excellent visual performance for modern interfaces

Communication Function

• Designed to work with standard display interfaces (not specified)
• Compatible with microcontrollers and embedded processors

Control Function

• Supports standard display operations:
o Display ON/OFF
o Sleep / standby mode
o Address window setting
o Screen orientation control

Performance Characteristics

• Wide viewing angles with minimal color distortion
• High contrast and deep black levels
• Suitable for high-quality display applications

3. Applications

This 4.3-inch IPS TFT LCD module is suitable for a wide range of applications:

Industrial Equipment

• Control panels
• Monitoring and diagnostic systems
• Industrial HMIs

Consumer Electronics

• Smart display devices
• Portable multimedia devices
• Advanced GUI interfaces

Embedded Systems / IoT

• Microcontroller or processor-based systems (e.g., STM32, ESP32, Raspberry Pi)
• Human-Machine Interface (HMI) applications
• Smart home control panels

Portable Devices

• Data visualization tools
• Portable testing equipment
• Handheld terminals

Summary

This 4.3-inch IPS TFT LCD module features a 480×800 resolution, transmissive normally black display, and full viewing angle. It delivers excellent color performance, high contrast, and wide visibility, making it ideal for embedded systems, industrial applications, and portable devices requiring high-quality graphical display.
