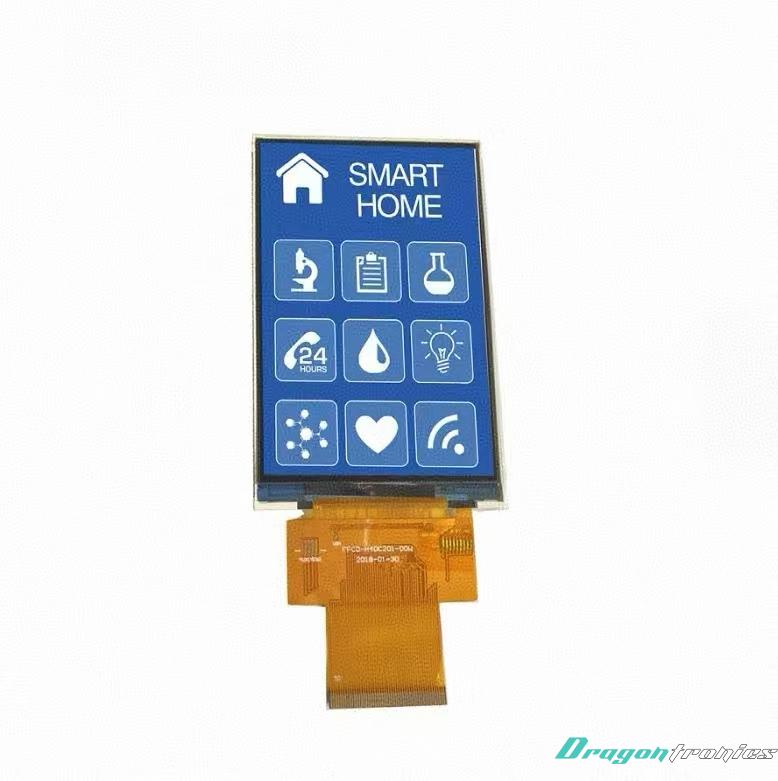

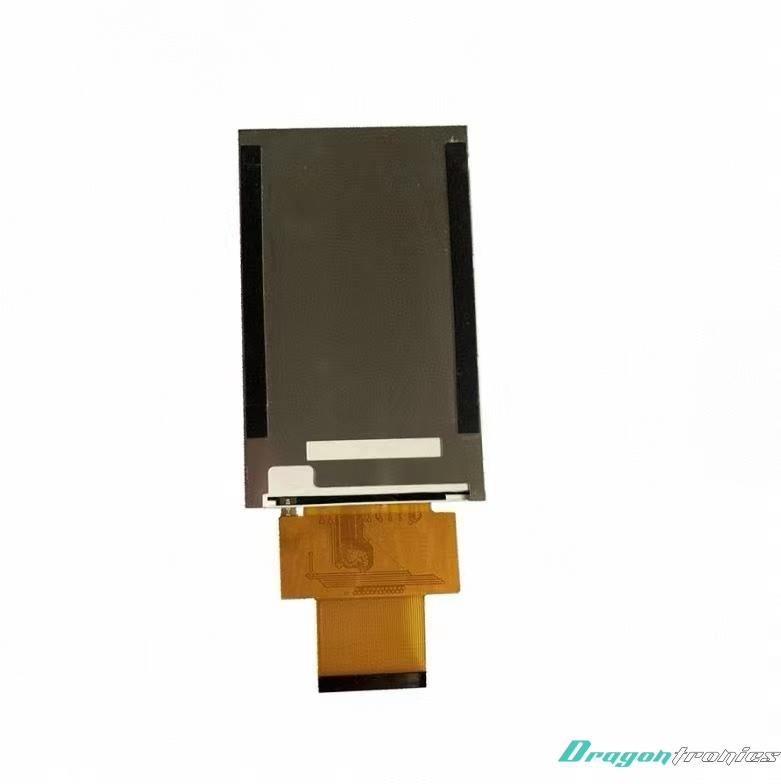

4.3 Inch a-Si TN TFT LCD Module Display 800×480

4.3" a-Si TN TFT LCD Module

1. Specifications

Specification Notes

• a-Si TFT Technology:
o Uses amorphous silicon thin-film transistor technology
o Widely adopted for cost-effective and stable display performance

• TN / Normally Black:
o Default display state is black, providing better contrast than normally white TN panels
o Maintains fast response time typical of TN technology

• Transmissive Mode:
o Requires backlight for operation
o Ensures bright and clear display in indoor environments

• 800×480 Resolution:
o WVGA resolution with RGB sub-pixels
o Suitable for detailed graphics, images, and GUI applications

• Full Viewing Direction:
o Improved viewing angle compared to standard TN panels
o Maintains acceptable visibility from multiple directions

2. Functions

Display Function

• Displays full-color text, graphics, icons, and user interfaces
• Supports RGB pixel structure for clear and vibrant images
• Suitable for medium-resolution GUI applications

Communication Function

• Designed to work with standard display interfaces (not specified)
• Compatible with microcontrollers and embedded processors

Control Function

• Supports standard display operations:
o Display ON/OFF
o Sleep / standby mode
o Address window setting
o Screen orientation control

Performance Characteristics

• Fast response time typical of TN panels
• Better contrast due to normally black mode
• Cost-effective solution with balanced performance

3. Applications

This 4.3-inch TFT LCD module is suitable for a wide range of applications:

Industrial Equipment

• Control panels
• Monitoring systems
• Instrument displays

Consumer Electronics

• Portable display devices
• Entry-level multimedia interfaces
• Smart home displays

Embedded Systems / IoT

• Microcontroller or processor-based systems (e.g., STM32, ESP32, Raspberry Pi)
• Human-Machine Interface (HMI)
• Smart control systems

Portable Devices

• Data loggers
• Handheld testing tools
• Portable monitoring units

Summary

This 4.3-inch a-Si TN TFT LCD module features an 800×480 resolution, transmissive normally black design, and full viewing direction. It offers a balance of cost, performance, and contrast, making it suitable for embedded systems, industrial applications, and portable devices requiring reliable graphical display.
