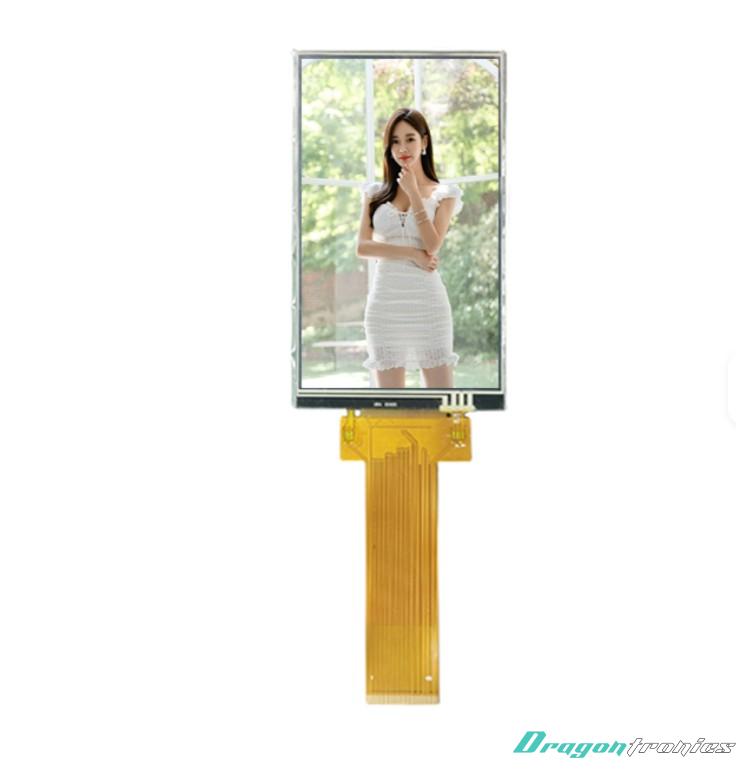

4.9" TN TFT LCD Module

1. Specifications

Specification Notes

• TN / Normally White:
o Default display state is white when no voltage is applied
o Provides fast response time and cost-effective performance, with limited viewing angles

• 364×78 Resolution:
o Wide and narrow format, suitable for status bars or elongated displays
o Supports RGB sub-pixels for full-color rendering

• 6 o’clock Viewing Direction:
o Best image quality when viewed from below the display
o Viewing from other directions may result in contrast or color shift

• 3-wire SPI + 24-bit RGB Interface:
o SPI: Used for command and configuration
o 24-bit RGB: Handles pixel data for full-color display
o Combination ensures flexible control and fast data transfer

2. Functions

Display Function

• Displays full-color text, graphics, icons, and simple UI elements
• Optimized for elongated, strip-type graphical layouts
• Supports RGB pixel rendering for clear and vibrant images

Communication Function

• Uses 3-wire SPI interface for commands and configuration
• Uses 24-bit RGB interface for high-speed pixel data transmission
• Compatible with microcontrollers and embedded processors

Control Function

• Standard display operations supported:
o Display ON/OFF
o Sleep / standby mode
o Address window setting
o Screen orientation control

Performance Characteristics

• Fast response typical of TN panels
• Optimized for bottom-view applications (6 o’clock)
• Suitable for elongated, narrow-format displays

3. Applications

This 4.9-inch TN TFT LCD module is suitable for:

Industrial Equipment

• Status and information bars
• Control panels with narrow display regions

Consumer Electronics

• Portable devices with elongated GUI layouts
• Smart appliances and multimedia panels

Embedded Systems / IoT

• Microcontroller-based systems (STM32, Arduino, ESP32, etc.)
• Human-Machine Interface (HMI)
• Smart control and monitoring panels

Portable Devices

• Data loggers
• Field testing tools
• Compact strip-type display devices

 Summary

This 4.9-inch TN TFT LCD module features a 364×78 resolution, 6 o’clock viewing direction, and 3-wire SPI + 24-bit RGB interface. Its normally white, transmissive design is ideal for elongated, narrow-format displays in embedded systems, industrial equipment, and portable applications requiring high-speed full-color rendering.
