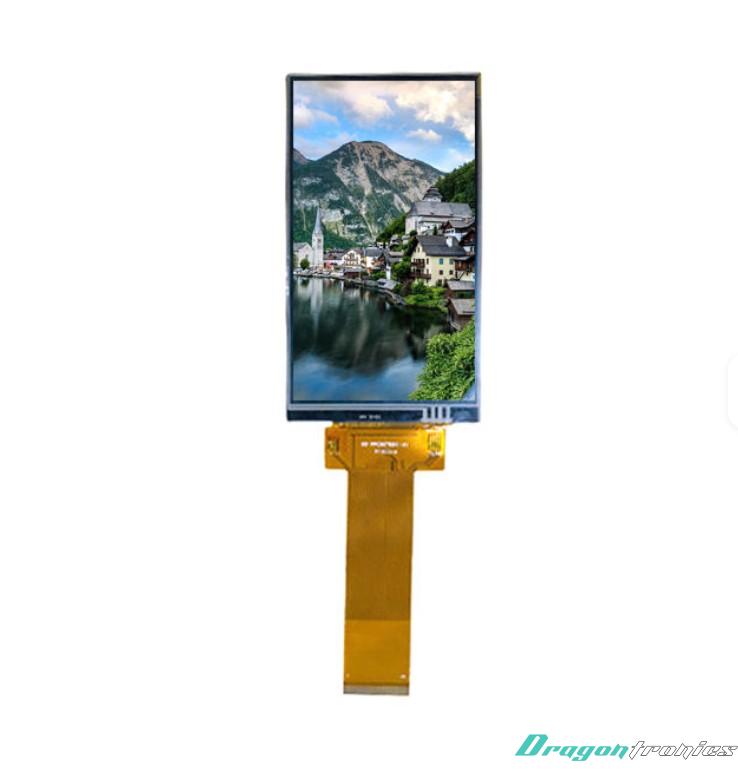

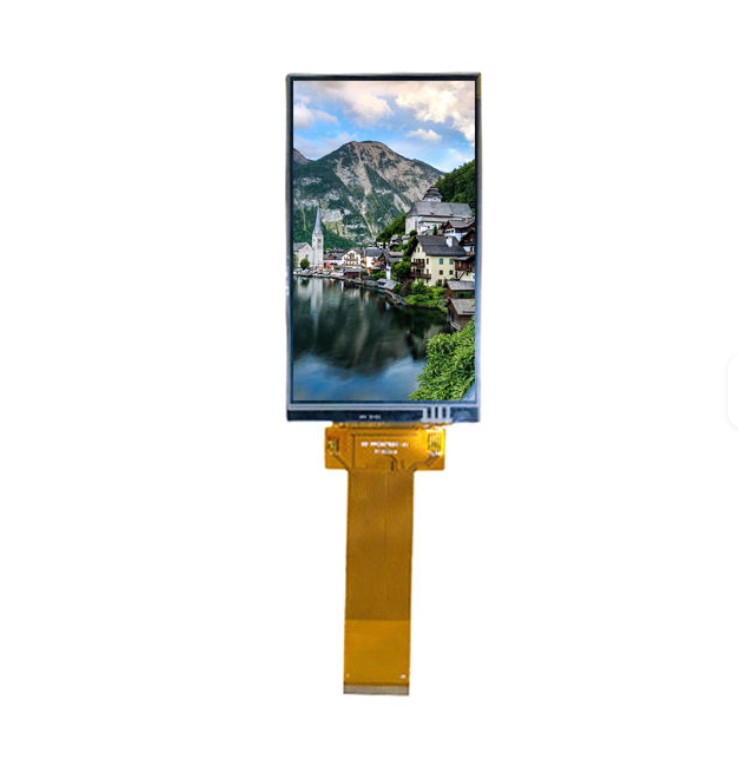

5.0 Inch MVA TFT LCD Module Display with Multi Capacitive Touch Panel RGB Interface LCD Module Screen

5.0" MVA TFT LCD Module

1. Specifications

Specification Notes

• MVA / Normally White / Anti-glare:
o Multi-domain Vertical Alignment ensures wide viewing angles with minimal color distortion
o Normally white mode provides good default contrast
o Anti-glare surface reduces reflections for better readability in bright environments

• 800×480 Resolution:
o Widescreen WVGA resolution with RGB sub-pixels
o Suitable for detailed graphics, images, and graphical user interfaces

• Full Viewing Direction:
o Maintains consistent color and contrast from all viewing angles
o Ideal for multi-user or public display applications

• 24-bit RGB Interface:
o Supports 16.7M colors
o High-speed pixel data transmission for smooth and vibrant graphics

2. Functions

Display Function

• Displays full-color text, graphics, icons, and GUI elements
• Supports 24-bit color depth for detailed and vivid images
• Anti-glare surface improves visual clarity

Communication Function

• Uses 24-bit RGB interface for high-speed data transmission
• Compatible with microcontrollers and embedded processors

Control Function

• Supports standard display operations:
o Display ON/OFF
o Sleep / standby mode
o Address window setting
o Screen orientation control

Performance Characteristics

• Wide viewing angles with stable color and contrast
• Enhanced readability in bright or reflective environments
• High-quality display for graphical and multimedia applications

3. Applications

Industrial Equipment

• Control panels
• Monitoring systems
• Human-Machine Interfaces (HMI)

Consumer Electronics

• Smart displays and multimedia panels
• Portable devices requiring wide viewing angles
• Anti-glare display panels

Embedded Systems / IoT

• Microcontroller-based systems (STM32, Arduino, ESP32, etc.)
• Smart control and visualization systems

Portable Devices

• Data loggers
• Field testing tools
• Widescreen handheld displays

Summary

This 5.0-inch MVA TFT LCD module features an 800×480 resolution, full viewing angle, anti-glare surface, and 24-bit RGB interface. Its normally white design and wide visibility make it ideal for industrial equipment, embedded systems, portable devices, and applications requiring clear, high-quality, full-color display from multiple viewing angles.
