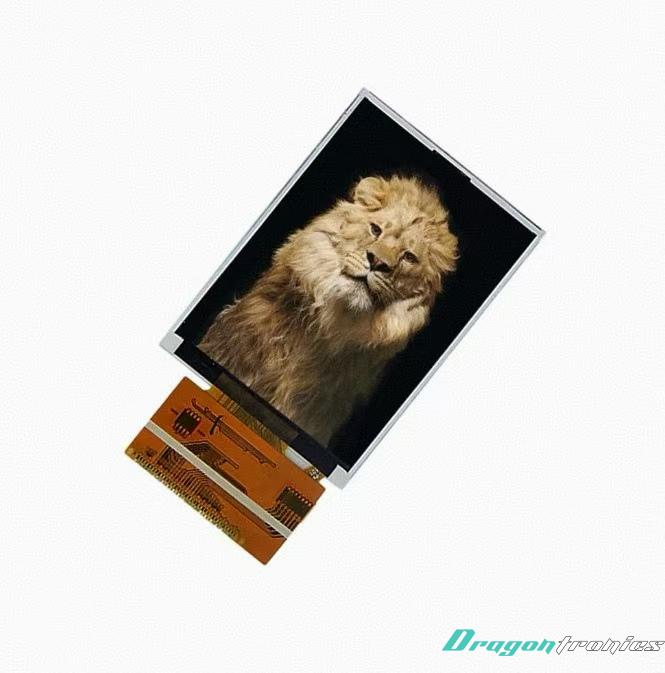

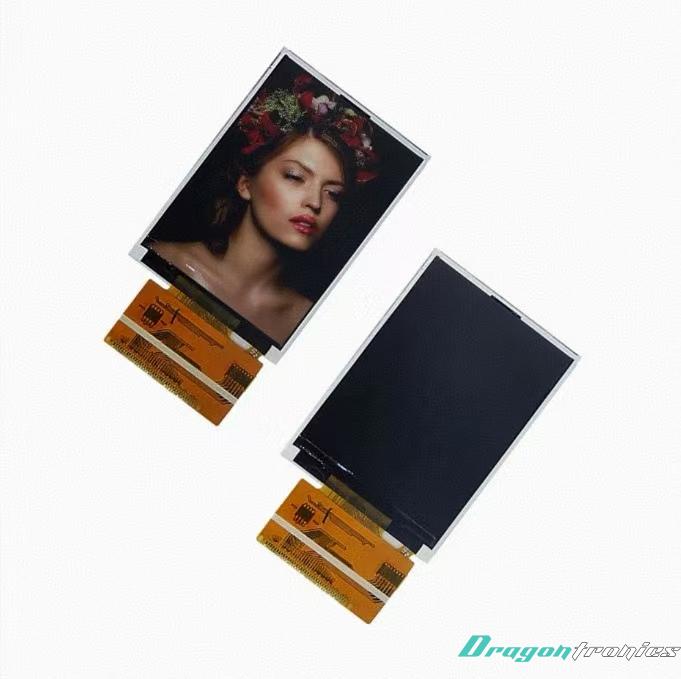

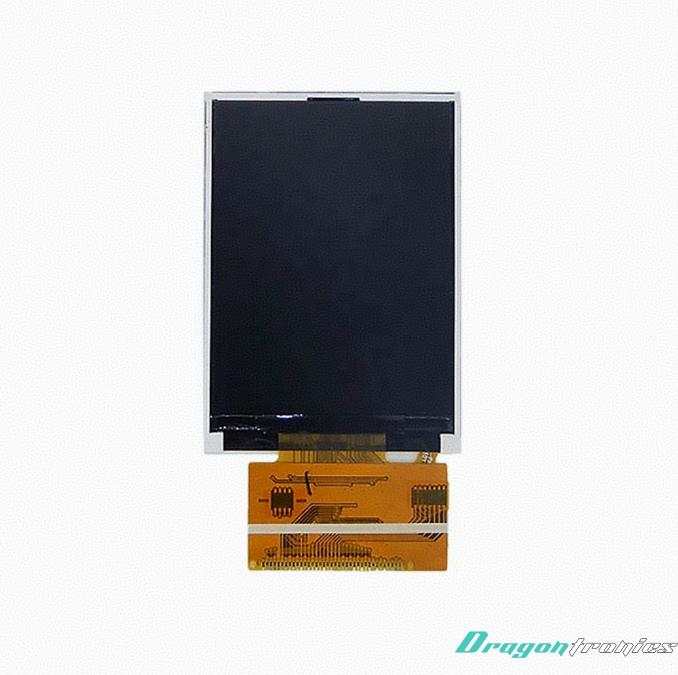

3.2 inch TFT Display With 240x320 Resolution Display Module

3.2" TN TFT LCD Module

1. Specifications

2. Functions

Display Function

· Displays text, graphics, icons, and basic graphical user interfaces

· Supports full-color rendering using RGB pixel structure

· Suitable for QVGA-based display applications

Communication Function

· Supports multiple MCU parallel interfaces (18/16/9/8-bit)

· Supports serial communication via 3-line or 4-line interface

· Flexible integration with a wide range of microcontrollers

Control Function

· Supports standard display operations:

o Display ON/OFF

o Sleep / standby mode

o Address window setting

o Screen orientation control

Performance Characteristics

· Fast response time typical of TN panels

· Normally white mode ensures bright default display

· Optimized viewing from the 9 o’clock direction (left side)

· Flexible interface options for various system requirements

3. Applications

This 3.2-inch TFT LCD module is suitable for a wide range of applications:

Industrial Equipment

· Control panels

· Monitoring and diagnostic devices

· Industrial instruments

Consumer Electronics

· Entry-level display modules

· Handheld controllers

· Home appliance interfaces

Embedded Systems / IoT

· Microcontroller-based systems (STM32, Arduino, ESP32, etc.)

· Human-Machine Interface (HMI)

· Smart control and automation systems

Portable Devices

· Data loggers

· Testing and measurement tools

· Portable display units

Summary

This 3.2-inch TN TFT LCD module features a 240×320 resolution, multiple interface options (parallel MCU and serial), and a 9 o’clock viewing direction. It offers a flexible, cost-effective display solution for embedded systems, industrial equipment, and portable devices requiring simple integration and reliable performance.
