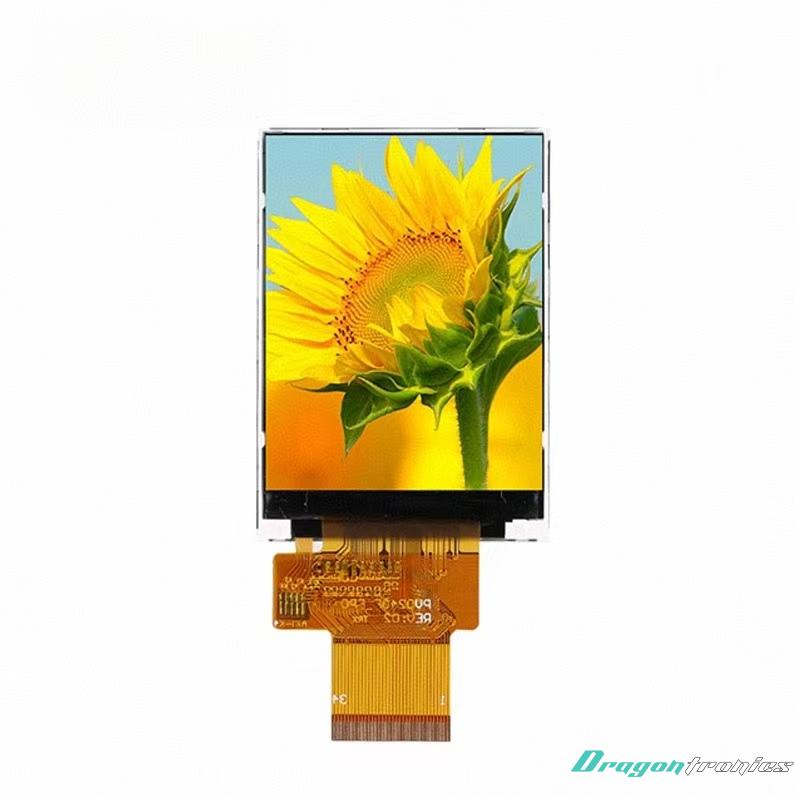

2.4 Inch IPS TFT LCD Module Resolution 240×320

2.4" IPS TFT LCD Module Description

1. Specifications

Specification Notes

· IPS / Normally Black:

o Provides superior color consistency and wide viewing angles compared to TN panels.

o Default state is black when no signal is applied, resulting in better contrast.

· 240×320 Resolution:

o Supports full-color display using RGB sub-pixels.

o Suitable for graphical user interfaces and image display.

· Full Viewing Angle:

o Clear visibility from all directions (up/down/left/right), ideal for user-facing applications.

· 16-bit MCU Interface:

o Parallel interface enabling direct communication with microcontrollers.

o Suitable for embedded systems requiring moderate-speed data transfer.

2. Functions

The LCD module provides the following functional capabilities:

Display Function

· Renders text, images, icons, and graphical user interfaces.

· Supports full-color output with good contrast and color accuracy.

Communication Function

· Interfaces with host systems (MCU/MPU) via 16-bit parallel MCU interface.

· Enables command and data transfer for display control and image rendering.

Control Function

· Supports common display operations such as:

o Display ON/OFF

o Sleep mode

o Brightness adjustment (via backlight control)

o Screen orientation and address window setting

Visual Performance

· Wide viewing angle ensures consistent image quality.

· IPS technology minimizes color distortion and inversion.

3. Applications

This 2.4-inch IPS TFT LCD module is widely used in compact electronic and embedded systems:

Industrial Equipment

· Handheld test and measurement devices

· Industrial control panels

· Portable diagnostic tools

Consumer Electronics

· Smart home control interfaces

· Portable media and gaming devices

· Small display terminals

Medical Devices

· Portable monitoring equipment

· Diagnostic instruments

Embedded Systems / IoT

· Microcontroller-based systems (e.g., STM32, ESP32)

· Human-Machine Interface (HMI) displays

· Smart controllers and IoT terminals

Portable Devices

· GPS navigation units

· Barcode scanners

· Data loggers

Summary

This 2.4-inch IPS TFT LCD module features 240×320 resolution, wide viewing angle, and a 16-bit MCU interface, offering a compact and high-quality display solution for embedded, industrial, and portable applications requiring reliable color performance and user interaction.
