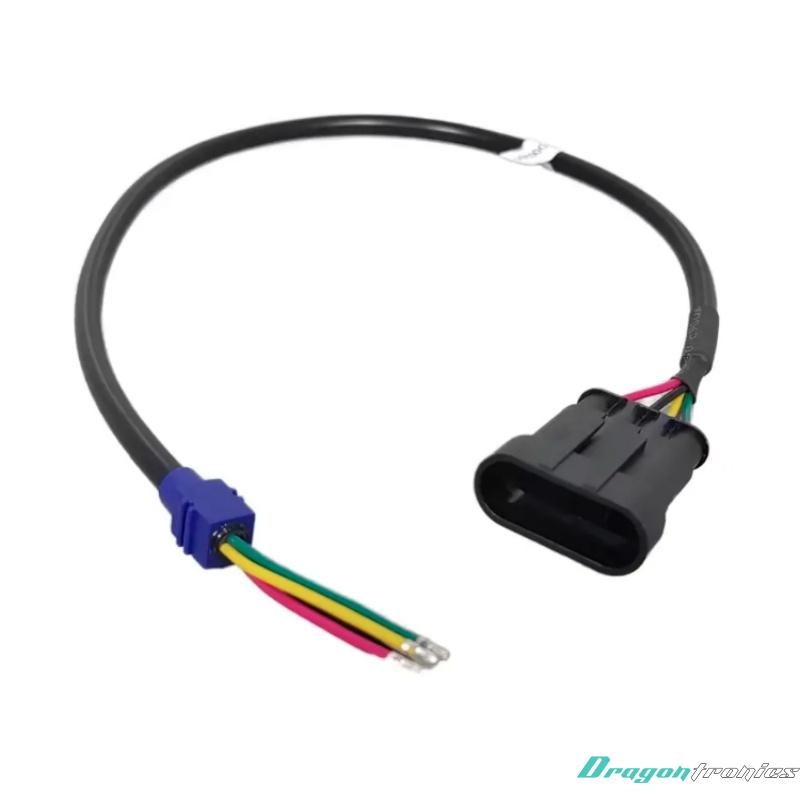

4-Pin Male Blue Automotive Connector Lighting Cable Assembly for Automobile Use

A 4-Pin Male Automotive Connector Lighting Cable Assembly is a pre-assembled wiring solution designed for connecting lighting components (such as headlights, tail lights, auxiliary lights, or LED lights) in an automotive system. It features a 4-pin male connector, which provides the necessary electrical connections to power and control lighting systems. The assembly includes both the wires and connectors required to interface the lighting system with the vehicle's electrical infrastructure.

Key Features of a 4-Pin Male Automotive Connector Lighting Cable Assembly:

1. 4-Pin Male Connector:

o The term "4-pin male" refers to the connector type. The "male" connector has 4 prongs or pins that plug into a female connector. This connector typically provides four electrical connections for power, ground, and control signals.

§ Power (12V or specific voltage for the light)

§ Ground (for completing the circuit)

§ Signal or Control (for controlling brightness, flashing, or triggering different lighting modes)

§ Signal (optional) for other purposes, such as dimming or activating auxiliary lighting.

2. Lighting Cable Assembly:

o The assembly includes wires (typically 4 individual wires) that run from the 4-pin male connector to the lighting device (like a lightbar, headlights, tail lights, turn signals, or fog lights). These wires are usually insulated for safety and to prevent short circuits, and they can be color-coded for easy identification during installation.

3. Durable and Weatherproof Design:

o The wires and connectors are designed to withstand automotive conditions, including vibration, heat, moisture, and dust. The connectors are usually made from weather-resistant materials (like nylon or plastic) to ensure long-lasting, reliable connections in harsh environments, especially under the vehicle's hood or on off-road vehicles.

4. Pre-assembled for Easy Installation:

o This assembly comes pre-wired and pre-terminated, meaning the wiring is already connected to the 4-pin male connector and ready to be installed, making the process faster and easier for technicians or DIY installers.

5. Color-Coded Wires:

o The individual wires are often color-coded to represent their functions. For example:

§ Red: Power (12V)

§ Black: Ground

§ Green/Yellow/White: Control or Signal wires (depending on the light type or function)

Applications of a 4-Pin Male Automotive Connector Lighting Cable Assembly:

1. Auxiliary Lighting Systems:

o A common use for this assembly is in off-road vehicles or trucks, where it connects auxiliary lights (e.g., LED light bars, fog lights, or spotlights) to the vehicle's electrical system. The 4-pin connector allows the lights to be easily connected and disconnected, simplifying installation and maintenance.

2. Headlights and Tail Lights:

o The assembly can be used in both front and rear lighting systems of the vehicle. It might connect to the headlights, tail lights, or turn signals, ensuring they receive power and function correctly. For multi-function lights (such as brake lights or tail/turn signal combos), the 4-pin connector can manage multiple signal types.

3. Lighting Control and Dimming:

o The control wires in the 4-pin connector can be used to adjust the brightness or turn the light on and off. In some systems, a dimming function is implemented using one of the pins, allowing the driver to adjust the lighting intensity according to their needs or conditions.

4. Trailer and Towing Lighting:

o A 4-pin male connector assembly is often used in trailer lighting systems to connect the lights on the trailer to the tow vehicle. The wiring typically includes connections for brake lights, turn signals, and running lights. The 4-pin configuration helps facilitate a simple and secure connection between the towing vehicle and the trailer.

5. LED Lighting Systems:

o Many LED lighting setups, such as off-road lighting, underbody lighting, or interior lights, use the 4-pin connector to provide electrical power and control. The assembly is often used for systems requiring multiple wires for controlling brightness, flashing, or triggering the lights from different switches.

How to Install a 4-Pin Male Automotive Connector Lighting Cable Assembly:

1. Preparation:

o Before starting the installation, disconnect the vehicle's battery to prevent accidental shorts or electrical issues during the wiring process.

o Identify the correct location for the lighting system (e.g., front bumper, rear of the vehicle, roof, etc.) and the location where the connector will be attached.

2. Connect the 4-Pin Male Connector:

o Plug the 4-pin male connector into the corresponding female connector of the lighting system. Ensure that each wire is securely connected to the appropriate pin (power, ground, signal, and control).

o If you’re connecting the system to the vehicle’s electrical system, ensure that the correct power source (12V) is used, and that the ground wire is securely attached to the vehicle's chassis or a proper ground point.

3. Mount the Lights:

o Mount the lighting components (LED light bar, fog lights, etc.) in the desired location. Ensure that the mounting brackets are secure, and that the lights are properly aimed for optimal performance.

4. Connect the Wiring to the Vehicle:

o Route the wiring through the vehicle’s engine bay or interior, securing it with cable ties or clips to prevent it from getting caught in moving parts.

o If applicable, connect the control wires to a switch or relay to control the lighting system. For instance, the control wire might be connected to a dash switch or an automatic relay to turn the lights on/off.

5. Test the Lighting System:

o Once everything is connected, reconnect the vehicle's battery and test the lighting system. Ensure that the lights function as expected, including turning on, off, and any additional control features such as dimming or flashing.

Conclusion:

The 4-Pin Male Automotive Connector Lighting Cable Assembly is a versatile, reliable, and easy-to-install solution for connecting automotive lighting systems. Whether for auxiliary lights, headlights, tail lights, LED systems, or trailer lighting, this assembly provides a simple and secure way to wire lighting components to the vehicle's electrical system. The custom cable design ensures efficiency, durability, and easy maintenance, making it a great option for both OEM (original equipment manufacturer) and aftermarket lighting setups.
