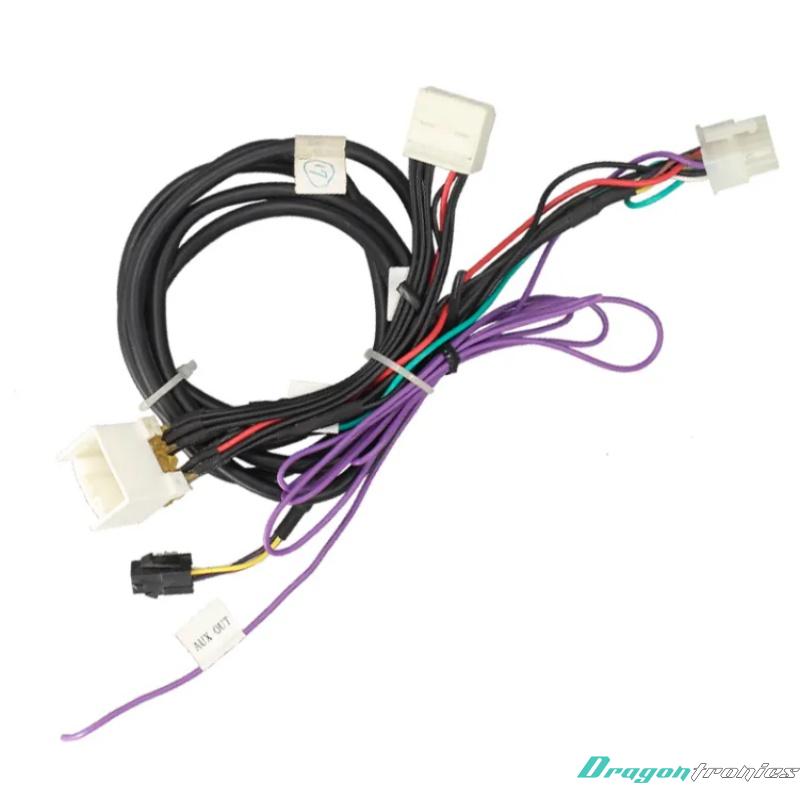

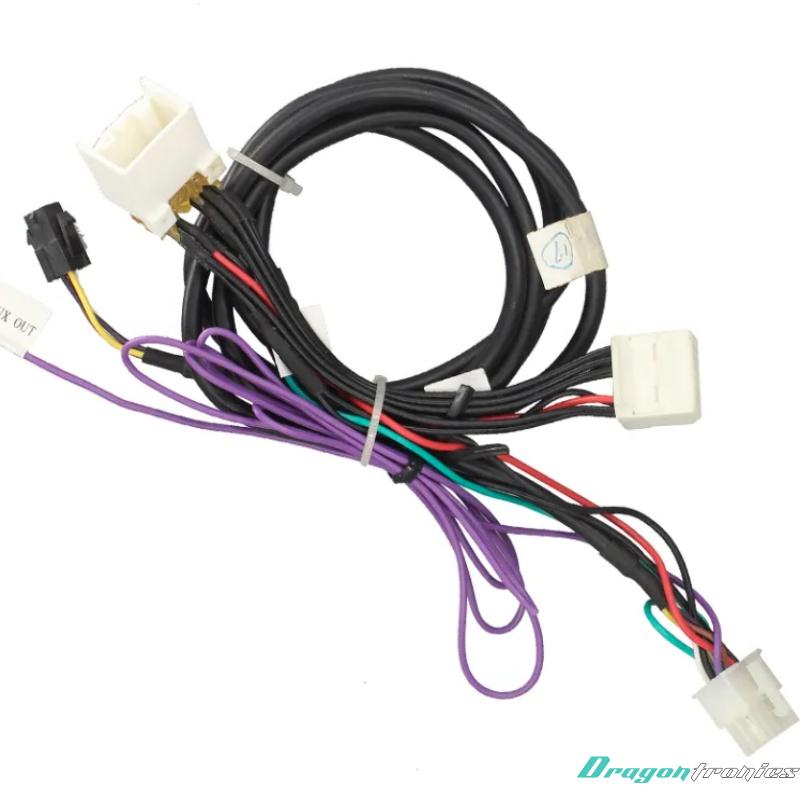

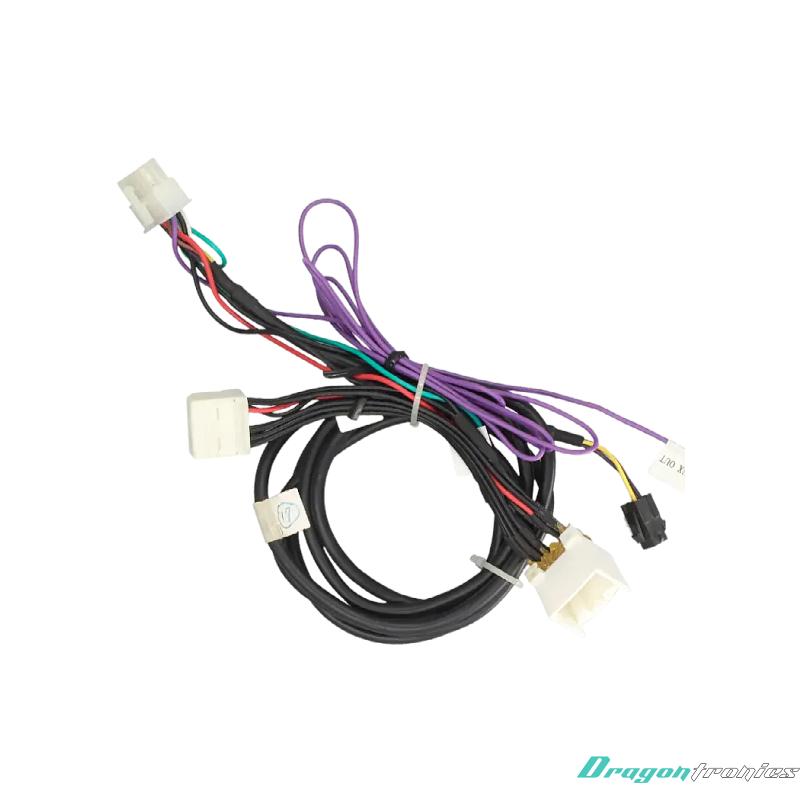

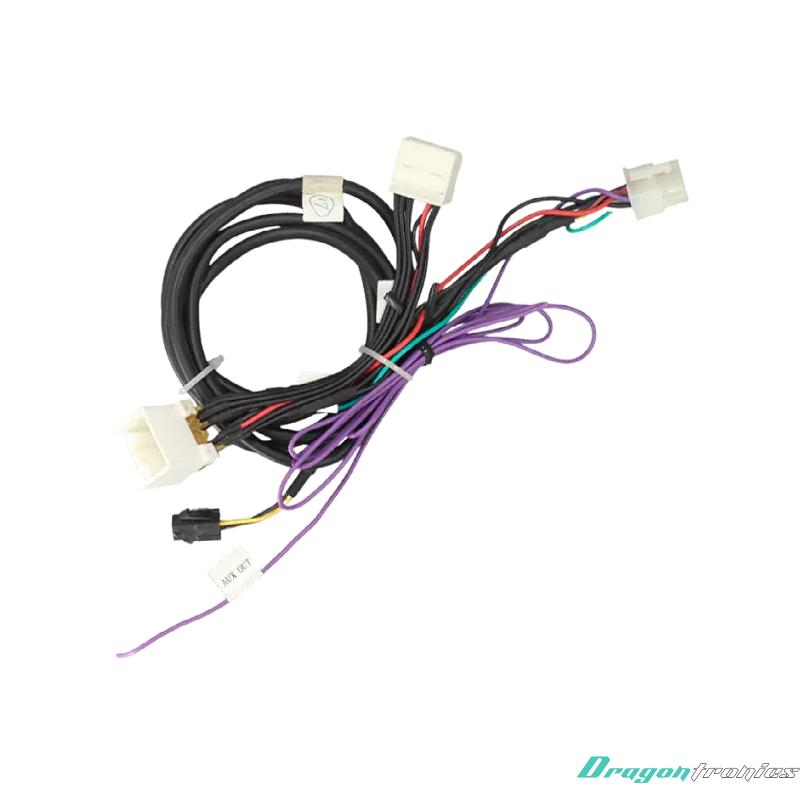

14pin Male To Female Auto Audio Wire Harness Transmission Adapter Equipment Cable Wire Harness cable assembly

A 14-pin Male to Female Auto Audio Wire Harness is an automotive electrical connector designed for use in vehicle audio systems. This wiring harness has a 14-pin connector on both ends, with one end being male and the other being female. The harness is specifically intended to transfer audio signals and possibly power between various components in the car's sound system, such as the head unit (stereo), amplifiers, speakers, subwoofers, and other audio equipment.

Key Features of a 14-pin Male to Female Auto Audio Wire Harness:

1. 14-Pin Connectors:

o The 14-pin connectors refer to the number of electrical contacts or terminals on the connectors. These pins allow for the transmission of multiple audio and control signals, which may include power, ground, speaker channels, audio signal lines, and possibly control signals for things like volume, bass, and balance adjustments.

o The male connector has 14 pins that plug into a corresponding female connector, which houses the sockets for the male pins.

2. Male and Female Configuration:

o The male end of the harness plugs into the vehicle's stereo or head unit, while the female end typically connects to the amplifier, speakers, or other audio equipment. This allows for easy and secure connections between various audio components.

3. Audio and Signal Transmission:

o The wiring harness is designed to transfer audio signals (e.g., from the stereo head unit to amplifiers or speakers), as well as power and ground connections for powering the devices. Depending on the system setup, it may also carry control signals for adjusting sound settings like volume, balance, or tone.

o It may support stereo sound and multi-channel audio, depending on the vehicle's audio system configuration.

4. Color-Coded Wires:

o The individual wires within the harness are often color-coded to make installation and troubleshooting easier. Each color corresponds to a specific function (e.g., red for power, black for ground, green and purple for rear speaker channels, etc.).

5. Durable and Heat-Resistant Construction:

o Automotive wiring harnesses are built to withstand the demanding conditions in a car, including heat, vibration, and exposure to moisture. They are typically constructed from materials like PVC (polyvinyl chloride) or TPE (thermoplastic elastomer) to provide insulation and protection.

Applications of a 14-pin Male to Female Auto Audio Wire Harness:

1. Car Audio System Installations:

o The 14-pin male to female harness is commonly used when installing or upgrading a car stereo system, enabling easy connection between the head unit (radio) and amplifiers, speakers, and other components of the audio system.

2. Aftermarket Audio Systems:

o If you're installing an aftermarket stereo system or audio equipment (such as a new amplifier or subwoofer), a 14-pin audio wire harness makes it easier to connect the new components without requiring extensive wiring work.

3. OEM Replacement Parts:

o For vehicles that come with OEM audio systems, the 14-pin harness can be used as a replacement part for damaged or worn-out wiring, ensuring the continued functionality of the car's audio system.

4. Custom Audio Builds:

o For custom audio systems in vehicles (like modified cars or show cars), this harness allows for the integration of high-power amplifiers, multiple speakers, and other complex audio components in a seamless and organized manner.

Advantages of a 14-pin Male to Female Auto Audio Wire Harness:

1. Easy Installation:

o The pre-wired nature of the harness simplifies installation, especially for those unfamiliar with automotive wiring. The color-coded wires make it clear which wire connects to which component, reducing the chances of incorrect connections.

2. Secure and Reliable Connection:

o The male-to-female connector design provides a secure and stable connection, reducing the likelihood of loose connections or poor signal quality, which could cause sound issues or component malfunction.

3. Versatile Compatibility:

o Many modern car audio systems use similar 14-pin connectors, meaning this wire harness can be used for a wide range of vehicle brands and audio system types (OEM or aftermarket). It's a common solution for connecting stereos, amplifiers, speakers, and other related equipment.

4. Durability:

o Designed for automotive environments, the wire harness is made from heat-resistant, vibration-resistant, and weather-resistant materials, ensuring it performs well even in hot, humid, or rough environments.

5. Organization:

o With the use of a wiring harness, all the necessary wires are bundled together, making the installation process cleaner and more organized. It reduces the chances of tangled or exposed wires, which can lead to safety issues or signal interference.

Conclusion:

A 14-pin Male to Female Auto Audio Wire Harness is a convenient and essential component for connecting various parts of an automobile’s audio system. It allows for the easy transfer of audio signals, power, and control signals between components like the head unit, amplifiers, and speakers. This harness is particularly useful in car audio system installations, upgrades, and aftermarket systems, where reliable and secure connections are needed. It simplifies the process of wiring, reduces installation time, and provides an organized and efficient solution for connecting your car's audio components.
