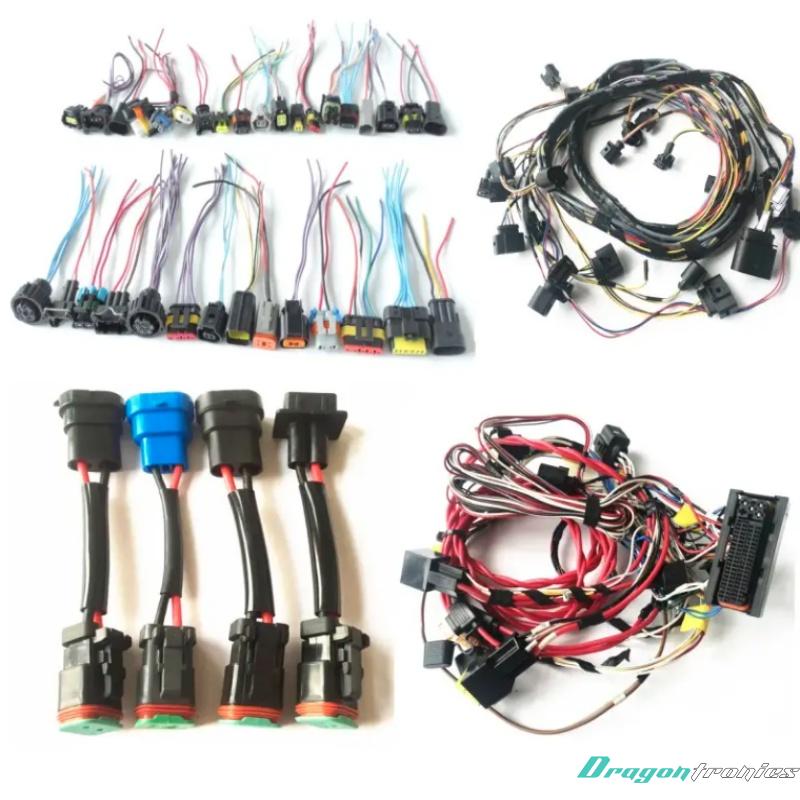

Manufacturer Motorcycle Replacement Wire Wiring Harness Assembly for Yamaha PW50 Car-styling Wire Harness

A Motorcycle Replacement Wire Harness is a pre-assembled set of electrical wires, connectors, and components designed to replace the original wiring harness in a motorcycle. It serves as the direct link between the battery, ignition system, lighting, sensors, and other electrical components, ensuring the proper functioning of the motorcycle's electrical system.

The replacement wire harness is typically used when the original harness becomes damaged, worn out, or faulty due to age, wear and tear, corrosion, or after an accident. It is designed to fit the specific make and model of the motorcycle, ensuring compatibility with all electrical systems.

Key Features of a Motorcycle Replacement Wire Harness:

1. Pre-assembled for Easy Installation:

o The replacement harness comes pre-wired with connectors and components that directly match the motorcycle's original system.

o It includes all the necessary wires, connectors, fuses, and relays needed to restore the bike’s electrical system.

2. Compatibility:

o Replacement wire harnesses are available for a wide range of motorcycles and are typically designed to be a direct replacement for the OEM (Original Equipment Manufacturer) wiring harness.

o Each harness is designed for a specific motorcycle model and year, ensuring all connections and lengths are correct.

3. Quality and Durability:

o These harnesses are built using high-quality materials such as heavy-duty wiring, high-temperature insulation, and abrasion-resistant sheathing to ensure long-term performance.

o They are engineered to withstand the harsh conditions of motorcycle use, including exposure to heat, moisture, vibrations, and mechanical wear.

4. Electrical System Restoration:

o The harness will restore the proper functioning of the ignition system, lighting (headlights, tail lights, turn signals), brake lights, horn, battery charging system, and other critical electrical components.

o The replacement harness often includes the necessary connectors for engine sensors, ECU (if applicable), starter motor, and other systems that require precise electrical wiring.

Applications of a Motorcycle Replacement Wire Harness:

1. Restoring a Faulty Electrical System:

o When the original harness becomes damaged, cut, frayed, or corroded, the replacement harness is a solution to restore the functionality of the motorcycle’s electrical system. This could be due to exposure to weather, wear over time, or even faulty electrical components.

2. Customization and Upgrades:

o Some riders choose to upgrade or customize their wiring harness to support additional accessories such as custom lights, heated grips, or aftermarket control systems. A replacement harness might be chosen to accommodate these upgrades while still maintaining the bike's stock systems.

3. Restoring Classic or Vintage Motorcycles:

o For vintage or classic motorcycles, a replacement wire harness is often essential, as the original wiring may be difficult to repair or source. A replacement harness ensures that the bike can be brought back to fully operational status.

4. Repairing After an Accident:

o In the case of a motorcycle accident, the wiring harness may get damaged. A replacement harness can be used to replace the damaged parts, allowing the bike to run safely again.

5. Preventive Maintenance:

o Over time, the wires in a motorcycle can degrade due to age, exposure to the elements, and wear from vibrations. Replacing the wiring harness as part of routine maintenance can help prevent unexpected failures and electrical problems.

How to Install a Motorcycle Replacement Wire Harness:

1. Preparation:

o Ensure that the motorcycle's battery is disconnected to prevent electrical shock or short circuits during the installation.

o Take note of the motorcycle's electrical system setup (take pictures, label wires, or refer to the service manual) to avoid confusion during the installation.

2. Remove the Old Harness:

o Carefully disconnect and remove the old or damaged harness. Note how the old wiring was routed and connected so you can replicate the setup with the new harness.

o Pay attention to any connectors, mounting points, or clips used to secure the harness.

3. Install the Replacement Harness:

o Begin by connecting the main electrical components (battery, ignition, fuse box, etc.).

o Ensure that each wire is connected to its corresponding component correctly, paying attention to the wire colors and connector types.

o Secure the harness in place using mounting clips and fasteners to prevent it from interfering with moving parts or becoming damaged.

4. Testing:

o Once installed, carefully test all electrical functions (lights, horn, ignition, etc.) to ensure the new harness is working as expected.

o Check for any loose connections, and ensure that wires are routed properly and not exposed to excessive wear or heat sources.

5. Reconnect the Battery:

o After confirming that the harness is properly installed, reconnect the motorcycle’s battery and perform a final test to verify the electrical system is fully operational.

Conclusion

A Motorcycle Replacement Wire Harness is a practical solution for restoring or upgrading the electrical system of a motorcycle. Whether the original harness is damaged, outdated, or no longer functional, a replacement harness provides a direct, reliable way to get your motorcycle’s electrical systems back to proper working order. With the right harness, installation is straightforward, and your motorcycle will benefit from improved safety, reliable performance, and a longer lifespan for its electrical components.
