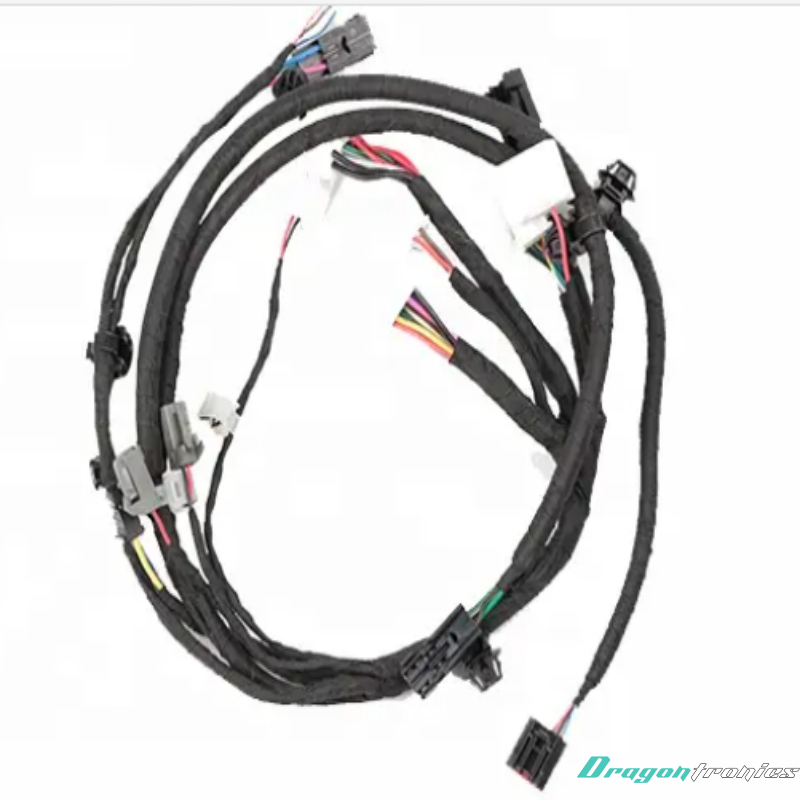

Swap Fuel Injector Wire Harness

A Swap Fuel Injector Wire Harness refers to a customized or replacement wiring system that connects the fuel injectors of a vehicle's engine to its electrical system. Specifically, it is designed for situations where the original or factory-installed wiring harness needs to be replaced or modified—often during an engine swap or upgrade. This harness plays a critical role in ensuring the proper electrical connection and function of the fuel injectors, which are responsible for delivering fuel into the engine's combustion chambers.

Key Functions of a Swap Fuel Injector Wire Harness:

1. Power Supply to Fuel Injectors:

o The fuel injectors rely on electrical power to open and close their valves, allowing fuel to be injected into the engine. The wire harness provides the 12V power supply required for the injectors to function.

2. Signal Transmission:

o The fuel injectors also require control signals to determine when and for how long they should inject fuel. The wiring harness transmits these signals from the engine control unit (ECU) or engine control module (ECM) to the fuel injectors. These signals determine the timing and duration of fuel injection based on factors like throttle position, air intake, and engine load.

3. Connector Compatibility:

o A swap fuel injector wire harness is typically custom-made to ensure compatibility with specific injectors, especially when replacing the injectors with aftermarket parts or during an engine swap. It may include connectors that are designed to work with different injector types or specific vehicle models.

4. Temperature and Vibration Resistance:

o The wire harness is built to withstand high temperatures under the hood, as well as vibrations and exposure to harsh engine conditions. This ensures that the fuel injector system works reliably even in challenging environments.

5. Fuel Injector Activation:

o In many modern vehicles, the injectors are triggered via pulse width modulation (PWM), where the duration and frequency of electrical pulses control the injector timing. The harness carries these signals accurately to ensure that the injectors deliver the right amount of fuel at the right time.

Components of a Swap Fuel Injector Wire Harness:

1. Wires and Insulation:

o The harness typically includes wires made from high-quality copper or other conductive materials. These wires are insulated with materials like PVC, Teflon, or silicone to ensure safe operation in high-temperature and high-vibration environments.

2. Connectors:

o The wiring harness will include injector connectors that fit the specific type of fuel injector used in the engine swap. These connectors may be weatherproof, sealed, and designed to provide a secure connection to prevent electrical shorts or disconnections.

3. Grounding Wires:

o Ground wires are included in the harness to ensure that all components of the fuel injection system are properly grounded, which is essential for the proper operation of the injectors and to avoid electrical interference.

4. Relay and Fuse:

o Some fuel injector wiring harnesses include a relay or fuse to protect the injectors from overcurrent or electrical surges. This helps prevent damage to the injectors or the ECU in case of a short circuit or other electrical faults.

5. Terminals:

o The wire harness may include terminals that connect to the ECU or other components in the engine’s electrical system. These terminals are designed to ensure a stable and reliable electrical connection.

6. Color Coding:

o The wires in the harness are typically color-coded for easy identification. This makes installation easier and ensures that the wiring is done correctly, especially when swapping injectors or changing the engine setup.

Applications of a Swap Fuel Injector Wire Harness:

1. Engine Swaps:

o When performing an engine swap, a fuel injector wire harness might be necessary to ensure that the fuel injectors in the new engine are properly connected to the vehicle's electrical system. The original harness may not be compatible with the new engine's injector setup, so a customized harness is often needed.

2. Injector Upgrades:

o If you're upgrading to larger or more advanced fuel injectors, the stock wiring may not be compatible with the new injectors. In this case, a swap fuel injector wire harness can be used to connect the new injectors to the ECU and ensure that they function correctly.

3. Replacing a Faulty Harness:

o Over time, the fuel injector wiring harness may wear out, corrode, or become damaged, leading to malfunctioning injectors. A replacement wiring harness may be necessary to restore proper functionality, especially if the OEM harness is no longer available or practical to repair.

4. Custom Builds and Tuning:

o For custom engine builds or tuning applications (like performance vehicles or race cars), a swap fuel injector wire harness allows for more flexibility in choosing the right type of injectors and ensuring that they are compatible with the vehicle’s ECU and tuning setup.

Conclusion:

A Swap Fuel Injector Wire Harness is a custom or replacement wiring system designed to connect fuel injectors to the electrical system in vehicles, particularly during engine swaps or upgrades. It ensures that the injectors receive power and control signals from the engine control unit (ECU) to deliver the right amount of fuel at the right time. This wiring harness is essential for vehicles with modified engines or injectors, providing the flexibility, reliability, and functionality needed to ensure optimal fuel delivery and engine performance. Whether for engine swaps, injector upgrades, or custom builds, the swap fuel injector wire harness plays a crucial role in the overall success of the vehicle's fuel injection system.
