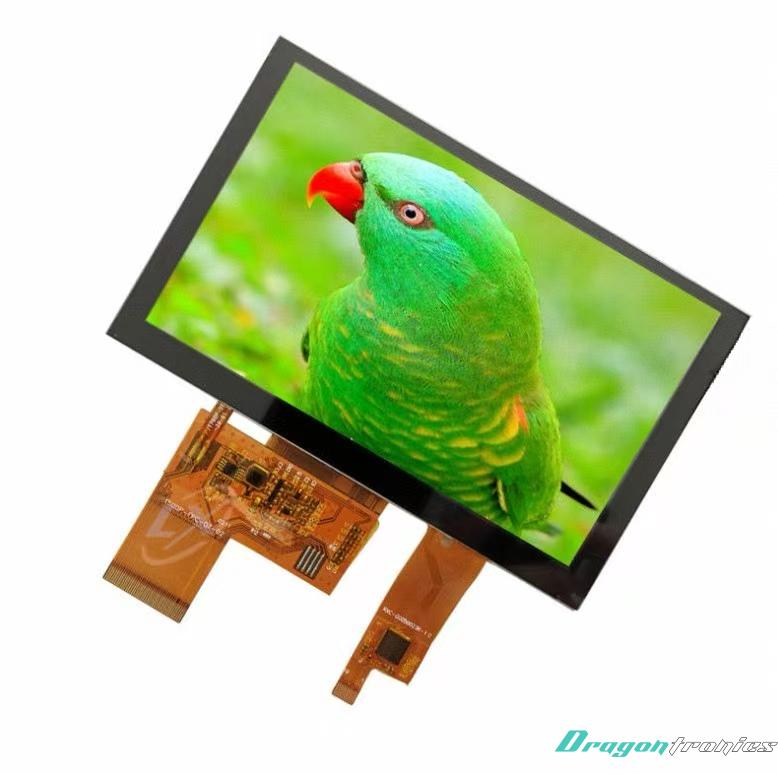

5.0" TN TFT LCD Module

1. Specifications

Specification Notes

• TN / Normally White:
o Default display state is white when no voltage is applied
o Provides fast response time and cost-effective performance, with limited viewing angles

• 800×480 Resolution:
o Widescreen WVGA resolution with RGB sub-pixels
o Suitable for detailed graphics, text, and multimedia applications

• 12 o’clock Viewing Direction:
o Best image quality when viewed from the top
o Viewing from other directions may result in contrast or color shift

• 24-bit RGB Interface:
o Handles pixel data for full-color display (16.7M colors)
o Supports high-speed transmission for smooth graphics

2. Functions

Display Function

• Displays full-color text, graphics, icons, and GUI elements
• Supports 24-bit color depth for vibrant and detailed images

Communication Function

• Controlled via 24-bit RGB interface
• Compatible with microcontrollers and embedded processors

Control Function

• Supports standard display operations:
o Display ON/OFF
o Sleep / standby mode
o Address window setting
o Screen orientation control

Performance Characteristics

• Fast response time typical of TN panels
• Optimized for top-view applications (12 o’clock)
• Cost-effective solution for widescreen displays

3. Applications

This 5.0-inch TN TFT LCD module is suitable for:

Industrial Equipment

• Control panels
• Monitoring systems
• Instrument displays

Consumer Electronics

• Portable multimedia devices
• Smart display panels
• Entry-level GUI devices

Embedded Systems / IoT

• Microcontroller or processor-based systems (STM32, Arduino, ESP32, etc.)
• Human-Machine Interface (HMI)
• Smart control panels

Portable Devices

• Data loggers
• Field testing tools
• Portable monitoring devices

Summary

This 5.0-inch TN TFT LCD module features an 800×480 resolution, 12 o’clock viewing direction, and 24-bit RGB interface. Its normally white design offers fast response and reliable full-color display, making it ideal for embedded systems, industrial equipment, and portable applications requiring widescreen graphical performance.
