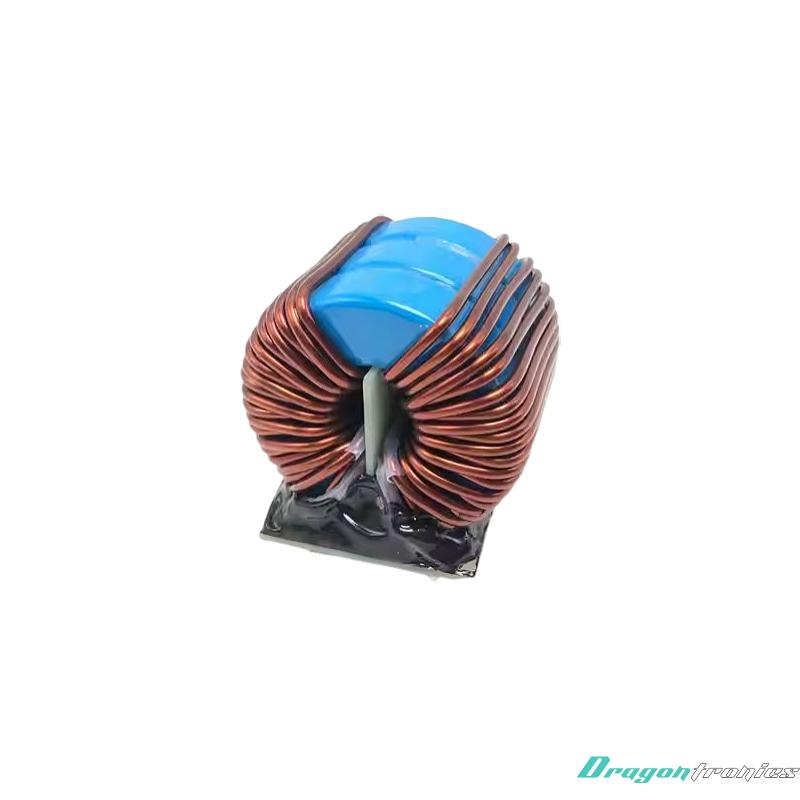

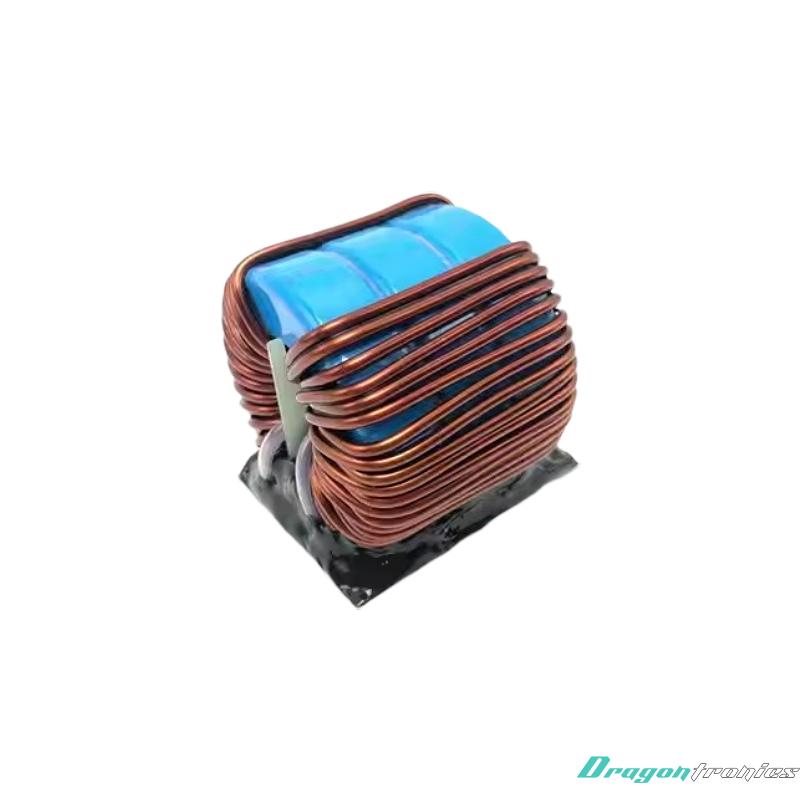

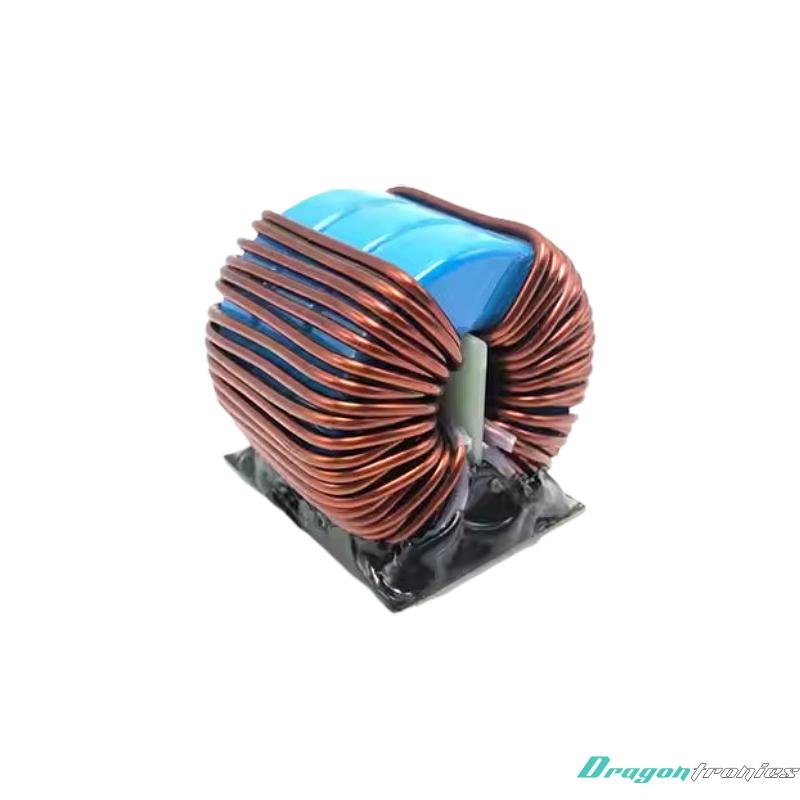

PFC Toroidal Inductors

Here's the PFC toroidal inductors operates:

1. Purpose: The main goal of a PFC inductor is to reduce reactive power in the system, improving the overall efficiency of power delivery and reducing losses.
2. Inductive Reactance: When an AC current passes through the inductor, it creates a magnetic field. The inductor opposes changes in current due to its inductive reactance, which helps manage the phase difference between voltage and current.
3. Phase Alignment: By adding a PFC inductor, the current waveform can be adjusted to align more closely with the voltage waveform. This alignment reduces the phase difference, thus improving the power factor.
4. Energy Storage: The inductor stores energy in its magnetic field when current flows through it. This stored energy is then released back into the circuit, helping to smooth out current fluctuations.
5. ApAplications: Used in industrial power systems, switching power supplies and grid systems.
