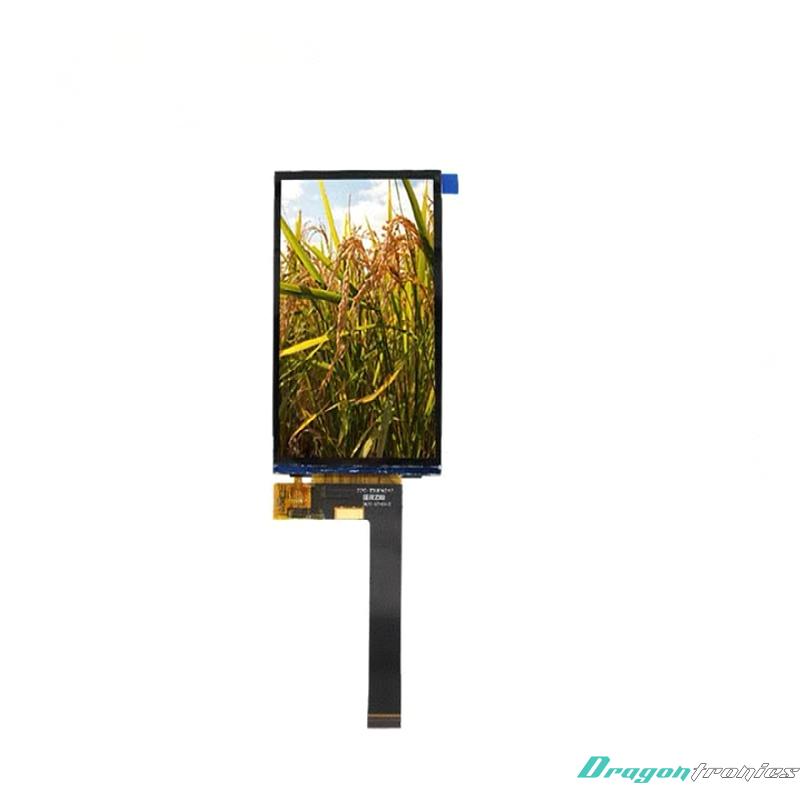

Customized 5 Inch TFT LCD Touch Display Module Unique 500 Nits

Product description: Customized 5 Inch TFT LCD Touch Display Module Unique 500 Nits High Brightness with Touch Panel for Outdoor RGB LCD Screen Resolution: 800X480 Operating Temperature: -20~+70℃ Screen Size: 120.7* 75
INQUIRY

5.0" TFT LCD Touch Display Module (High Brightness, RGB Interface)

1. Specifications

Parameter	Description
Display Type	TFT LCD with Touch Panel
Display Size	5.0 inch
Resolution	800 × 480 pixels
Module Dimensions (W × H × T)	120.7 × 75.8 × 3.0 mm
Interface	RGB (40-pin)
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C

Specification Notes

• 800×480 Resolution:
o WVGA resolution suitable for clear graphics, text, and UI display
o Supports full-color rendering with RGB pixel structure

• RGB 40-pin Interface:
o Parallel interface for high-speed pixel data transmission
o Commonly used in embedded systems and display controllers

• Integrated Touch Panel:
o Enables user interaction for control and navigation
o Suitable for HMI and smart interface applications

• Wide Temperature Range:
o Designed for reliable operation in industrial and outdoor environments

2. Functions

Display Function

• Displays full-color text, graphics, icons, and UI elements
• Suitable for graphical interfaces and control panels

Communication Function

• Uses RGB 40-pin interface for display data transmission
• Compatible with microcontrollers and embedded processors

Touch Function

• Provides interactive touch input
• Enables user-friendly control interfaces

Control Function

• Supports standard display operations:
o Display ON/OFF
o Sleep / standby mode
o Screen orientation control

Performance Characteristics

• Stable performance across wide temperature ranges
• Suitable for embedded and industrial applications
• Optimized for interactive display systems

3. Applications

Industrial Equipment

• Control panels
• Monitoring systems
• Human-Machine Interfaces (HMI)

Embedded Systems / IoT

• Smart control devices
• Interactive embedded systems
• Automation interfaces

Consumer Electronics

• Smart home control panels
• Portable display devices

Outdoor Applications

• Equipment interfaces exposed to varying environments
• Touch-enabled outdoor display systems

Summary

This customized 5.0-inch TFT LCD touch display module features an 800×480 resolution, RGB 40-pin interface, and integrated touch functionality. With a wide operating temperature range and compact design, it is well-suited for industrial, embedded, and outdoor applications requiring reliable and interactive display performance.
