Magnetic Choke

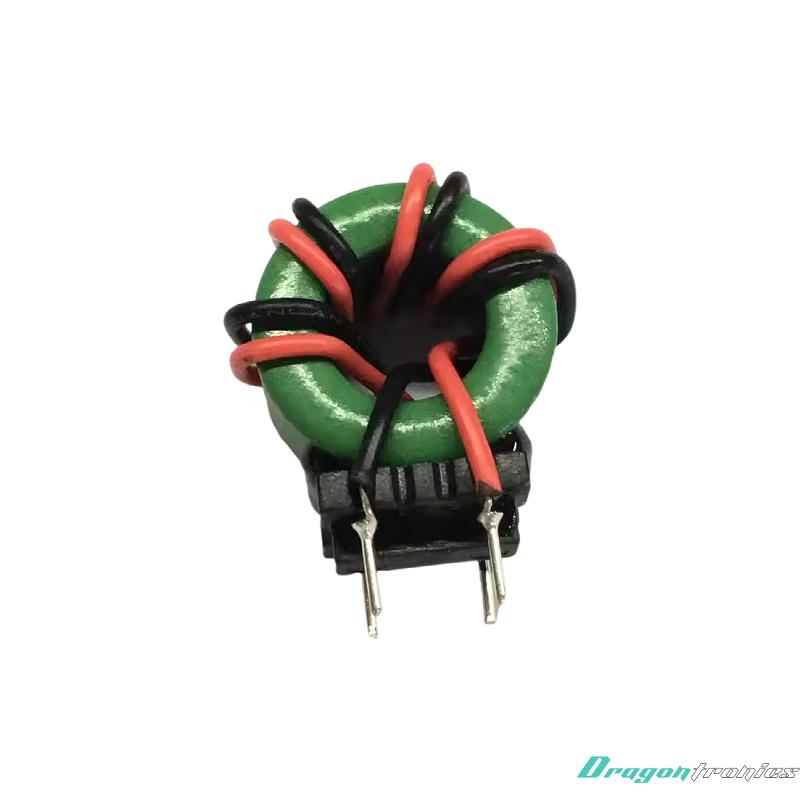

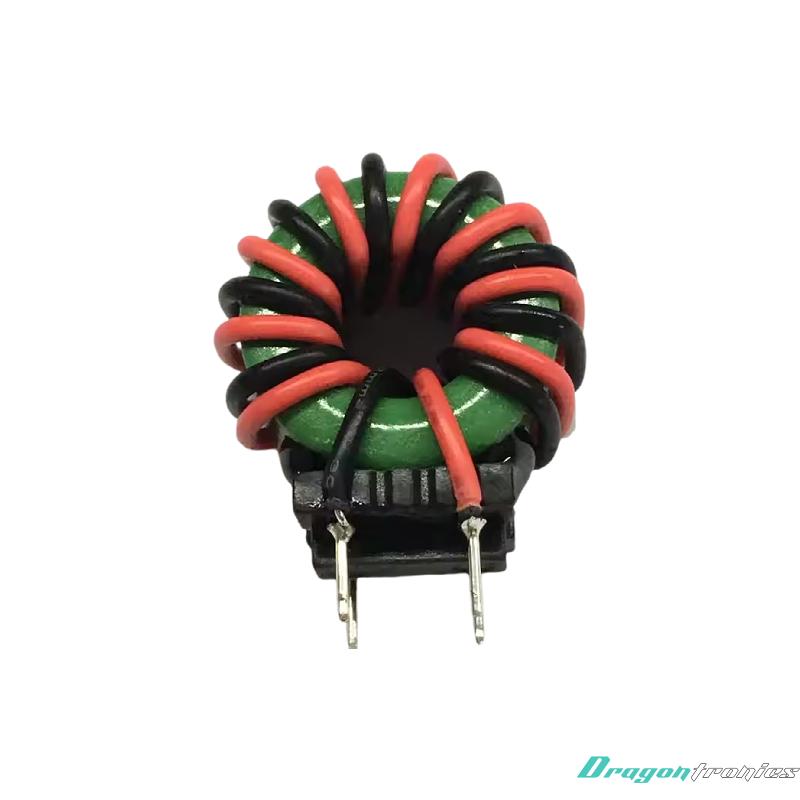

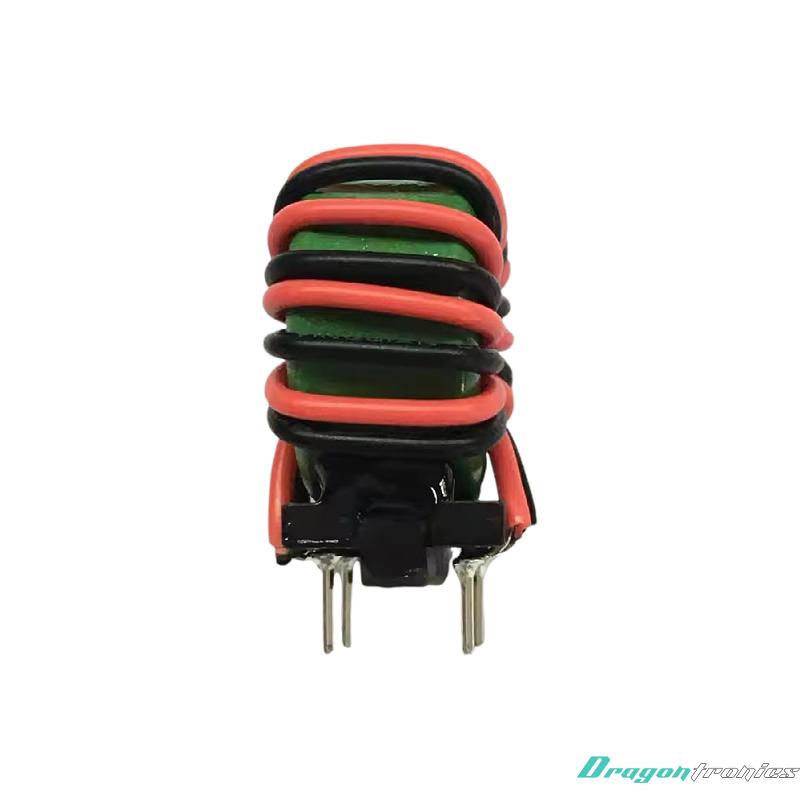

Product description: The magnetic choke functions by using a wire coil wound around a magnetic ring core to generate and store magnetic energy. The design of the core and its material properties play a critical role in de
INQUIRY

Key Characteristics:

Inductance (L): The property of an inductor that quantifies how much it opposes changes in current. It's measured in Henrys (H).
Core Material: The ferromagnetic material used in the core of the inductor determines how effective the inductor is at storing magnetic energy. Materials like ferrite or iron powder are commonly used.
Self-Inductance: The ability of the inductor to generate a voltage that opposes the change in its own current.
Saturation: If the magnetic field in the core becomes too large (due to excessive current), the core material may reach saturation and lose its ability to effectively store energy. This can reduce the efficiency of the inductor.

Applications:

Magnetic chokes are commonly used in transformers, power supplies, RF circuits, and filters. Their ring shape helps optimize the magnetic field distribution, making them ideal for high-efficiency applications where minimizing losses and reducing electromagnetic interference are important.
