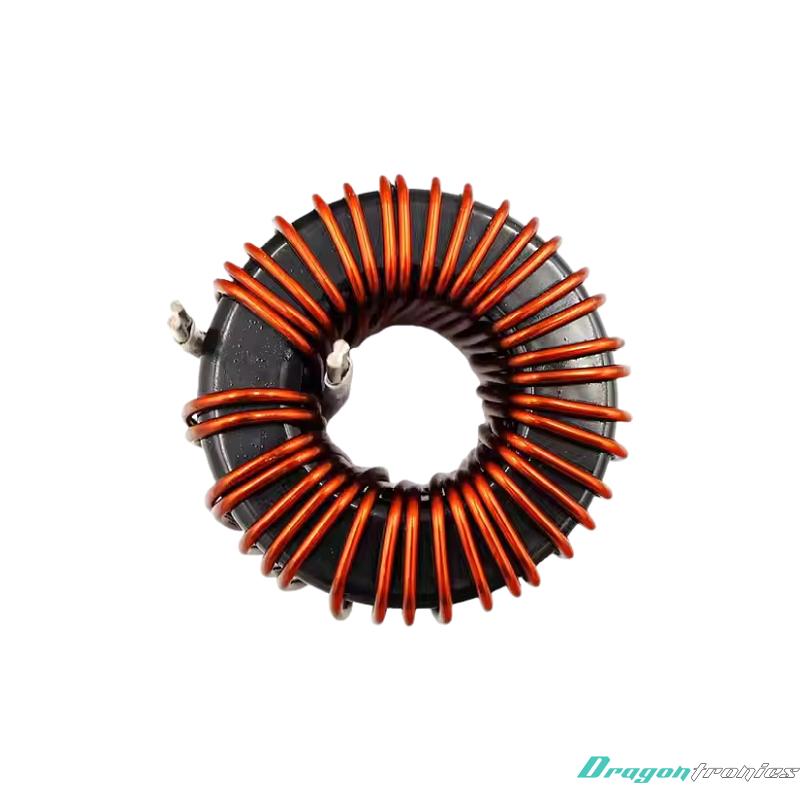

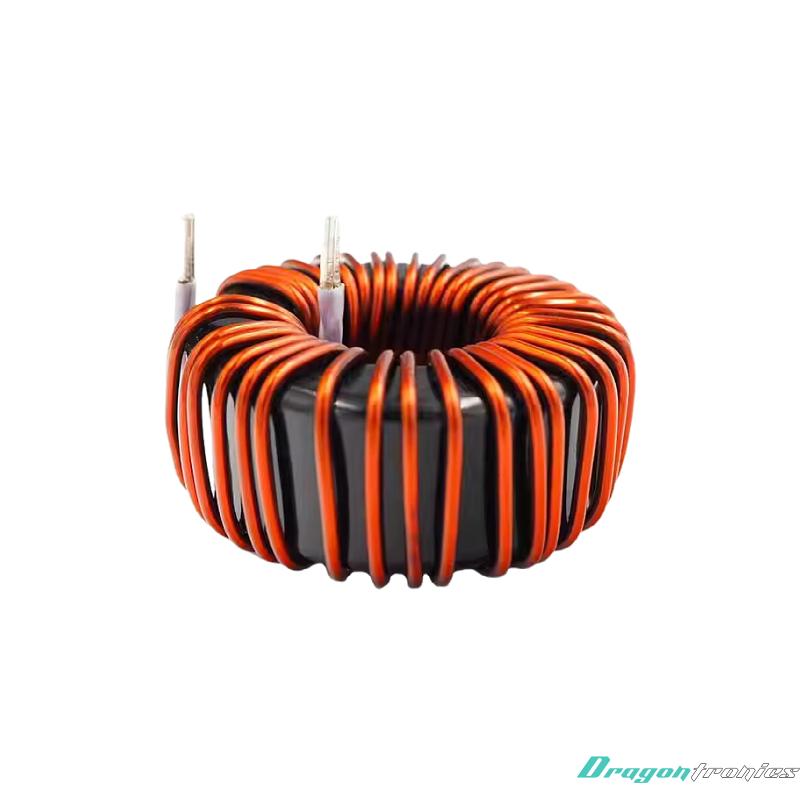

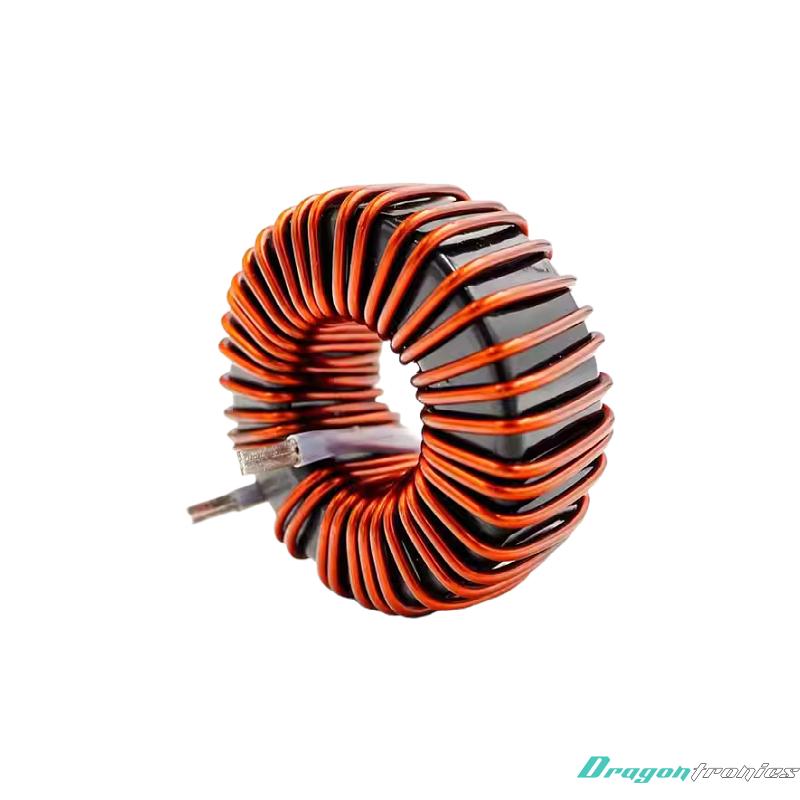

Magnetic Inductors

How the magnetic inductor functions:

1. Core Material: The magnetic ring, often made of ferrite or other magnetic materials, increases the magnetic permeability, allowing for more efficient energy storage in the magnetic field.
2. Induction Principle: When an alternating current (AC) flows through the coil, it generates a magnetic field around the wire. The ring core helps concentrate and direct this magnetic field.
3. Energy Storage: The magnetic field created around the inductor stores energy. The amount of energy stored is proportional to the inductance, which is influenced by the number of turns in the coil and the core material.
4. Reactance: The inductor opposes changes in current due to the induced electromotive force (EMF), which helps filter out high-frequency noise and stabilize the current in electronic circuits.
5. Applications: Magnetic ring inductors are commonly used in power supplies, RF applications, and noise suppression circuits, providing compact and efficient energy storage solutions.
