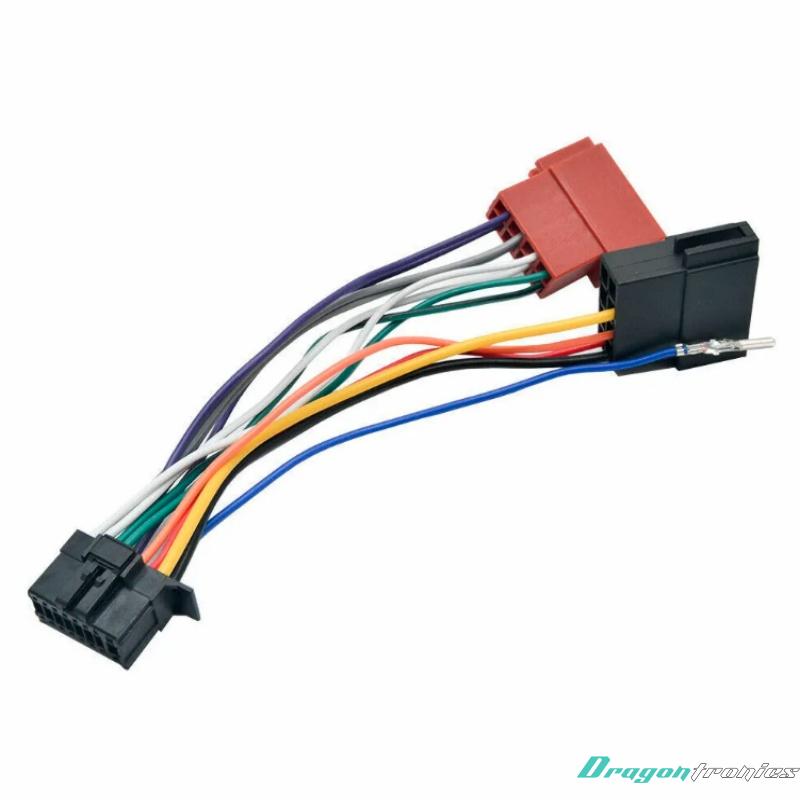

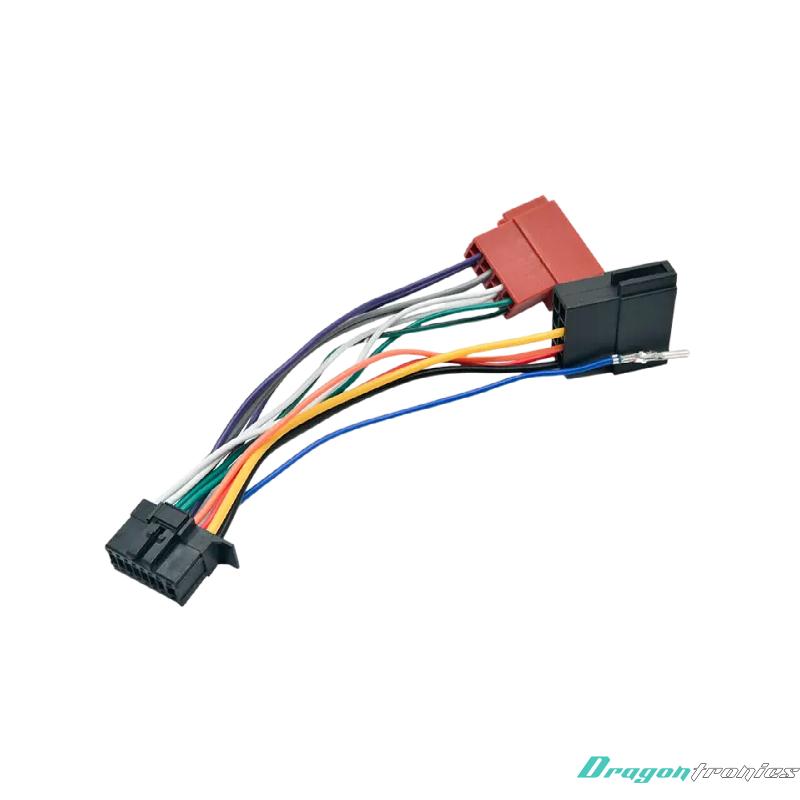

16Pin Car Stereo Radio Player ISO Wiring Harness

A Car Stereo Radio Player Wiring Harness is an essential component used to connect a car stereo (or radio player) to a vehicle's electrical system. It is a pre-configured bundle of wires and connectors designed to facilitate the connection between the car's power source, speakers, antenna, and other necessary functions for the operation of an aftermarket or factory-installed car stereo system.

This wiring harness helps in the installation and replacement of a car stereo without the need for cutting or modifying the vehicle's original wiring. It simplifies the process of connecting the car stereo to the car's electrical and audio systems, ensuring proper power supply, audio output, and control integration.

Functions of a Car Stereo Radio Player Wiring Harness:

1. Power Supply Connection:

o The wiring harness delivers the power needed for the car stereo to function. It connects to the vehicle’s battery or ignition system to provide the correct voltage (usually 12V) to the stereo when the vehicle is turned on.

2. Audio Signal Transmission:

o The harness transmits audio signals from the car stereo to the car’s speakers. It ensures that sound from the stereo system is correctly routed to the audio outputs, such as the left and right speakers.

3. Antenna Connection:

o A portion of the wiring harness often includes a connection for the radio antenna. This allows the stereo to receive radio signals for FM/AM radio functionality.

4. Integration with Vehicle Controls:

o The wiring harness may include connections that allow the car stereo to be controlled via the vehicle’s steering wheel controls, dash buttons, or other factory-installed control systems. This makes it easier to operate the radio while keeping the vehicle's built-in control functions intact.

5. Speaker Connections:

o The harness connects the stereo unit to the vehicle's speakers. These are typically color-coded to identify the positive and negative connections for each speaker (e.g., front left, front right, rear left, and rear right).

6. Additional Functions:

o Depending on the harness design, it can also support connections for USB ports, auxiliary inputs, Bluetooth modules, rear camera connections, and other advanced features integrated into modern car stereo systems.

Components of a Car Stereo Radio Player Wiring Harness:

1. Power Wires:

o These wires carry electrical current from the car’s power source to the stereo unit. They usually include a constant power wire (to keep presets, clock, etc. when the car is off) and an ignition wire (to turn the stereo on when the vehicle is running).

2. Ground Wire:

o The ground wire provides a return path for the electrical current, completing the circuit and allowing the stereo to function safely.

3. Speaker Wires:

o These wires transmit audio signals from the stereo to the car’s speakers. They are usually color-coded to identify the left and right channels and to indicate which speakers are connected (front, rear, left, right).

4. Antenna Cable:

o This wire connects the stereo to the vehicle’s antenna, allowing the stereo to pick up AM/FM radio signals.

5. Control Wires:

o These wires allow for integration with the vehicle’s controls, such as steering wheel controls, dashboard buttons, or voice control for hands-free operation.

6. Additional Connection Wires:

o Some wiring harnesses may include additional wires for integrating features like Bluetooth, USB, back-up cameras, or navigation systems into the car stereo.

Applications of a Car Stereo Radio Player Wiring Harness:

1. Aftermarket Car Stereo Installation:

o The wiring harness is commonly used when installing an aftermarket stereo system. It allows the user to replace the factory-installed stereo with a new one, while maintaining compatibility with the vehicle’s original wiring.

2. Car Radio Replacement:

o When a car radio stops working or gets damaged, a wiring harness makes the process of replacing it quick and easy. The new stereo can be connected to the existing wiring without complex rewiring or modification.

3. Upgrading Audio Systems:

o For car enthusiasts looking to upgrade their sound system, the wiring harness ensures that the new stereo integrates seamlessly with the existing speakers, amplifiers, and other components in the vehicle.

4. Integration of Advanced Features:

o Many modern car stereos come with features like Bluetooth, USB ports, GPS navigation, and backup cameras. A wiring harness helps connect these additional features to the vehicle’s electrical system, making it easy to add new functionality.

5. Retrofitting Older Vehicles:

o For older vehicles that have outdated or non-functional stereo systems, the wiring harness is a practical solution to install a new radio or multimedia unit while retaining compatibility with the car’s wiring.

Conclusion:

A Car Stereo Radio Player Wiring Harness is an essential tool for anyone looking to install, replace, or upgrade a car stereo system. It simplifies the connection between the vehicle’s electrical system and the aftermarket stereo, ensuring that power, audio signals, and additional functions are properly routed. The harness provides a quick, safe, and reliable way to integrate the stereo into the vehicle without the need for complex wiring modifications. Whether you're replacing an old radio, upgrading your sound system, or retrofitting a vehicle, the wiring harness makes the process efficient and straightforward.
