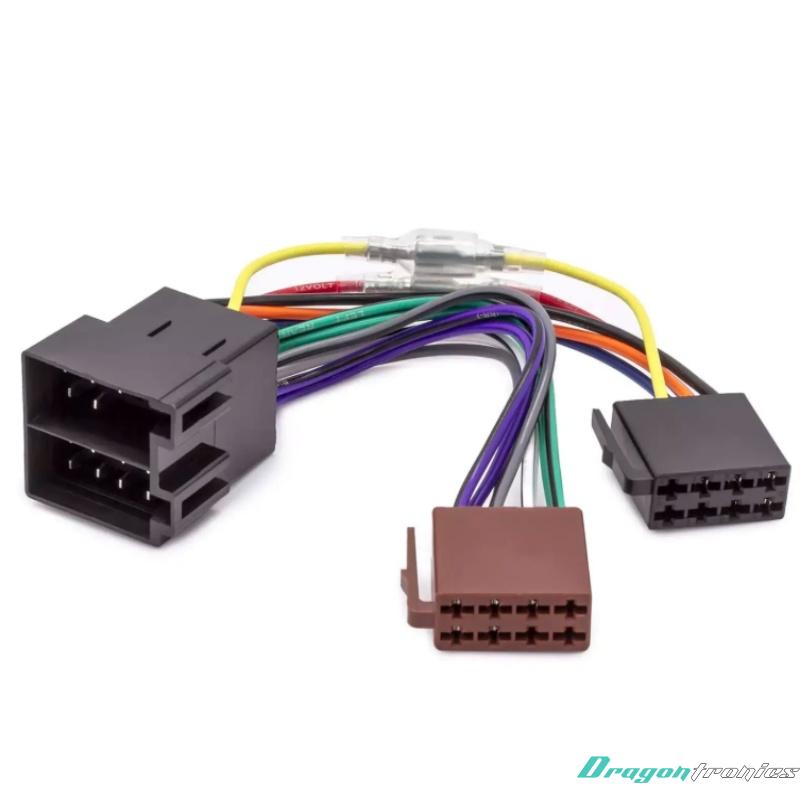

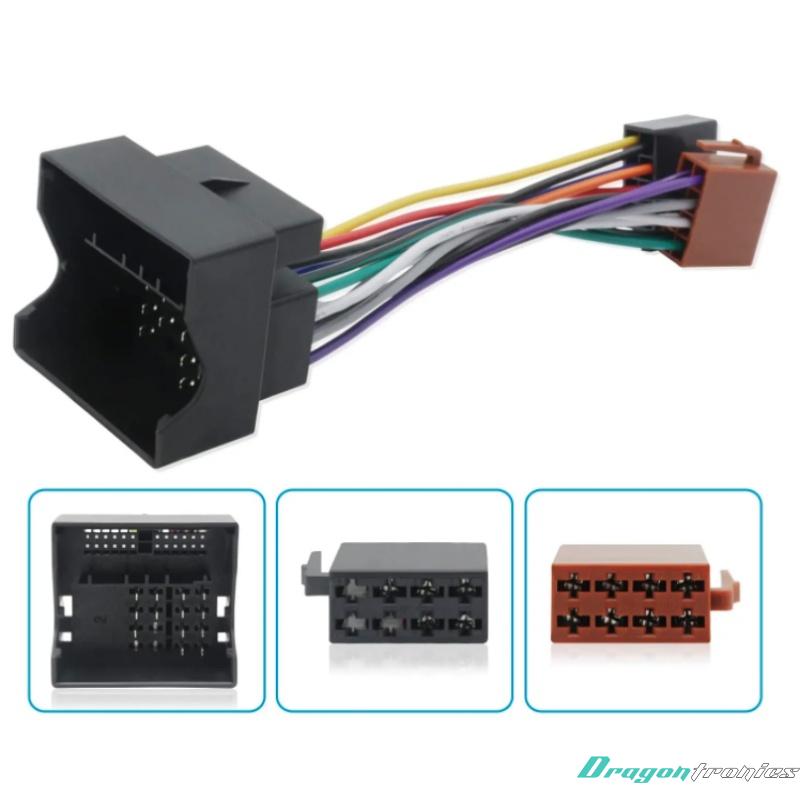

16Pin Auto Car Radio Adapter Cable

A 16-Pin Auto Car Radio Adapter Cable is a specific type of wiring cable used to connect a car radio (or car stereo) to a vehicle's electrical system. It typically has a 16-pin connector on one end, which plugs into the car's original wiring harness, and a set of connectors or wires on the other end, which connect to the new or replacement car radio. This cable ensures that the car's audio system, power, and other electrical functions are properly integrated with the vehicle's electrical system.

Functions of a 16-Pin Auto Car Radio Adapter Cable:

1. Connection Between Car Stereo and Vehicle Wiring:

o The main function of the 16-pin adapter cable is to allow a seamless connection between the car's electrical system (specifically, the wiring harness for the radio) and the new car radio. It simplifies the installation process by providing a plug-and-play solution.

2. Power Supply:

o The adapter cable transmits power from the vehicle’s electrical system to the car radio, ensuring the radio is powered on when the vehicle is in operation.

3. Speaker Wiring:

o It carries the audio signals from the car radio to the speakers in the vehicle, ensuring proper audio output through the car's sound system.

4. Control Functions:

o The cable often includes connections for controls such as volume, track selection, source switching, and other interface options like steering wheel controls or Bluetooth functionality. This allows the car radio to interface correctly with the vehicle's electrical systems for integrated control.

5. Antenna Signal:

o The adapter cable may also include a connection for the radio antenna, allowing the car radio to receive AM/FM signals and other radio frequencies.

6. Auxiliary Inputs:

o Some 16-pin adapter cables can accommodate additional features such as USB ports, AUX inputs, or microphone connections for Bluetooth hands-free calling.

Applications of a 16-Pin Auto Car Radio Adapter Cable:

1. Aftermarket Car Radio Installation:

o The primary application is in installing aftermarket radios in vehicles. Many vehicles come with a proprietary radio connection, and the 16-pin adapter cable allows users to connect an aftermarket radio to the vehicle’s existing wiring.

2. Replacing a Faulty Car Radio:

o When replacing an old or broken car radio, this adapter cable provides an easy way to integrate the new unit with the vehicle's electrical system without needing to rewire the entire system.

3. Upgrading Car Audio Systems:

o For drivers looking to upgrade their car audio systems, this adapter cable helps in connecting high-quality aftermarket stereos with the vehicle's built-in wiring harness, allowing the new stereo to work seamlessly with the existing speakers, antenna, and controls.

4. Integrating Additional Features:

o For vehicles with modern entertainment systems, this cable may enable integration with Bluetooth, USB ports, auxiliary inputs, and other advanced features, enhancing the radio's functionality.

5. Restoring or Retrofitting Older Vehicles:

o If a vehicle has an outdated or broken stereo system, the 16-pin adapter can help fit a modern stereo system, restoring audio and entertainment functionality while retaining the use of the vehicle’s existing wiring.

Advantages of a 16-Pin Auto Car Radio Adapter Cable:

1. Easy Installation:

o It simplifies the installation of aftermarket radios by eliminating the need for custom wiring. The 16-pin connector is designed to be a plug-and-play solution, reducing installation time and effort.

2. Compatibility:

o The adapter cable ensures that aftermarket radios are compatible with the vehicle’s original wiring setup, even if the radio’s wiring harness has a different connector style or pin configuration.

3. Cost-Effective:

o Using a 16-pin adapter cable is a more affordable solution than completely rewiring the car's audio system or purchasing a custom adapter for each specific car model.

4. Preserves Factory Wiring:

o The cable allows users to retain the vehicle’s original wiring, preventing unnecessary modifications or damage to the car’s electrical system.

5. Supports Advanced Features:

o Many 16-pin adapter cables are designed to support advanced features such as Bluetooth functionality, hands-free calling, steering wheel controls, and auxiliary inputs, which can improve the overall audio and entertainment experience.

Conclusion:

A 16-Pin Auto Car Radio Adapter Cable is a practical and efficient tool for connecting an aftermarket car radio or stereo to a vehicle’s existing electrical system. It simplifies the installation process, ensures compatibility, and allows for the easy integration of modern audio features, all while maintaining the functionality of the vehicle’s factory wiring system. Whether replacing a damaged radio or upgrading to a higher-quality stereo, this cable is essential for ensuring a seamless and reliable connection.
