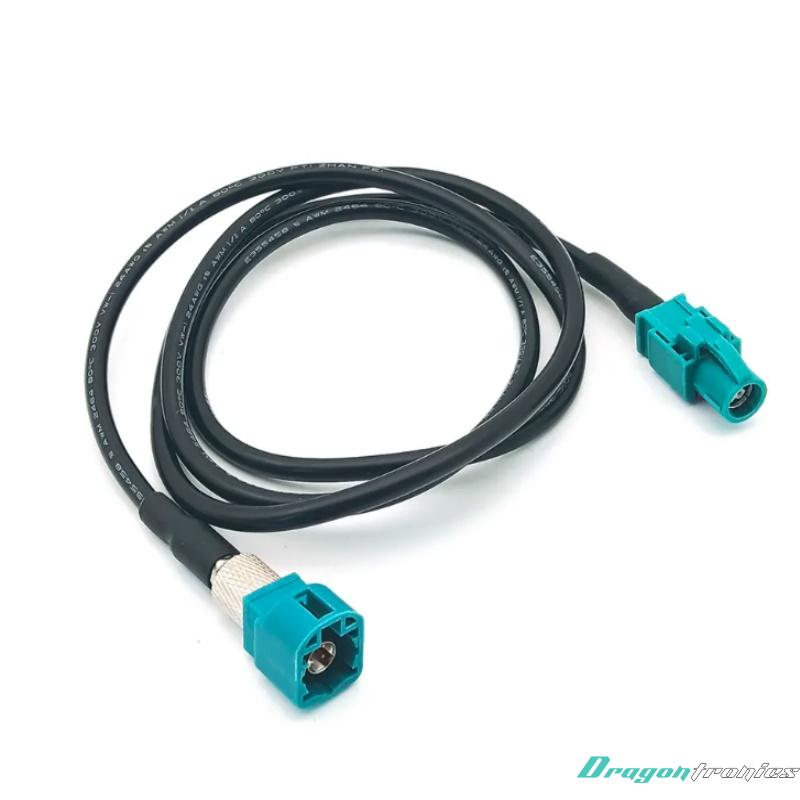

Coaxial Communication Cable for Car Audio and Camera

A Coaxial Communication Cable for Car Audio and Camera is a type of electrical cable specifically designed to transmit signals, either audio or video, in automotive systems. It is used to connect components in car audio systems and vehicle camera setups, ensuring high-quality signal transmission while minimizing interference.

Coaxial Cable Structure:

Coaxial cables are named for their design, where the inner conductor is surrounded by a shield and an insulating layer. Here’s a breakdown of the common structure of a coaxial

Primary Functions:

1. Signal Transmission:

o Audio Signals: Coaxial cables are used to transmit audio signals in car audio systems, particularly for connecting subwoofers, amplifiers, and receivers. Though less common for standard speaker wiring (where more robust speaker wires are usually used), coaxial cables can still be used in certain audio setups.

o Video Signals: Coaxial cables are widely used in vehicle camera systems, especially for transmitting video signals from cameras (e.g., rearview, parking assist, or surround-view cameras) to the vehicle's monitor or infotainment system. The cable ensures that the video signal from the camera reaches the display clearly and without distortion.

2. Reducing Interference: The shielding in coaxial cables is critical in environments like vehicles, where there are many electronic devices that could cause interference. The shielding ensures that the audio and video signals remain clean and unaffected by nearby electronic noise (such as from the car’s engine, power electronics, or other systems).

3. Durability and Flexibility: Coaxial cables are designed to be both flexible and rugged. This is essential in automotive applications where the cables need to be routed through tight spaces and endure harsh conditions like vibrations, heat, and exposure to moisture.

Applications in Car Audio and Camera Systems:

1. Car Audio Systems:

o Coaxial cables are sometimes used to connect various audio components, such as amplifiers, subwoofers, or head units. While coaxial cables are more commonly used in home audio systems for digital signals (e.g., digital audio over coaxial), in cars, they can be used for analog audio signal transmission or in applications where signal integrity and shielding are essential.

2. Car Camera Systems:

o Rearview Cameras: Coaxial cables are used to transmit video signals from the rearview camera (or backup camera) to the car's display screen. The video feed shows the driver what's behind the car, assisting in parking and reversing safely.

o Parking Assistance Cameras: These cameras help drivers see obstacles around the vehicle when parking. The coaxial cable transmits video from these cameras to the display.

o 360-Degree Camera Systems: These systems use multiple cameras placed around the car to provide a bird’s-eye view of the surroundings. Coaxial cables carry the video signals from each camera to a central processing unit, which combines the feeds for display on the car's screen.

o Dash Cameras: Some dash cameras may also use coaxial cables for video transmission to a display or recording device, particularly if the vehicle’s existing systems integrate with the dash cam.

Benefits of Using Coaxial Cables in Car Audio and Camera Systems:

1. Signal Integrity: Coaxial cables ensure that both audio and video signals are transmitted without significant loss or distortion, providing clear, high-quality sound and video, which is critical for both entertainment and safety applications in cars.

2. Minimized Interference: The shielding in coaxial cables helps protect the signals from interference caused by electromagnetic fields (EMF), which is especially important in a vehicle environment with multiple electronic devices.

3. Durability: Coaxial cables are designed to be highly durable, withstanding the vibrations, heat, moisture, and physical stresses common in automotive environments.

4. Versatility: Coaxial cables can be used for a variety of applications, including transmitting audio and video signals, providing one cable solution for both car audio systems and camera systems.

5. Compact and Flexible: Coaxial cables are generally compact and flexible, making them easy to route through the vehicle, even in tight spaces behind dashboards, under seats, or along door frames.

Conclusion:

A Coaxial Communication Cable for Car Audio and Camera is a critical component in modern automotive systems that involve the transmission of audio and video signals. It provides reliable, high-quality signal transmission while minimizing interference from other electrical systems in the car. Whether used in car audio systems for subwoofer connections or in camera systems for rearview or parking assist cameras, coaxial cables offer the durability, flexibility, and shielding necessary for safe and efficient vehicle operation.
