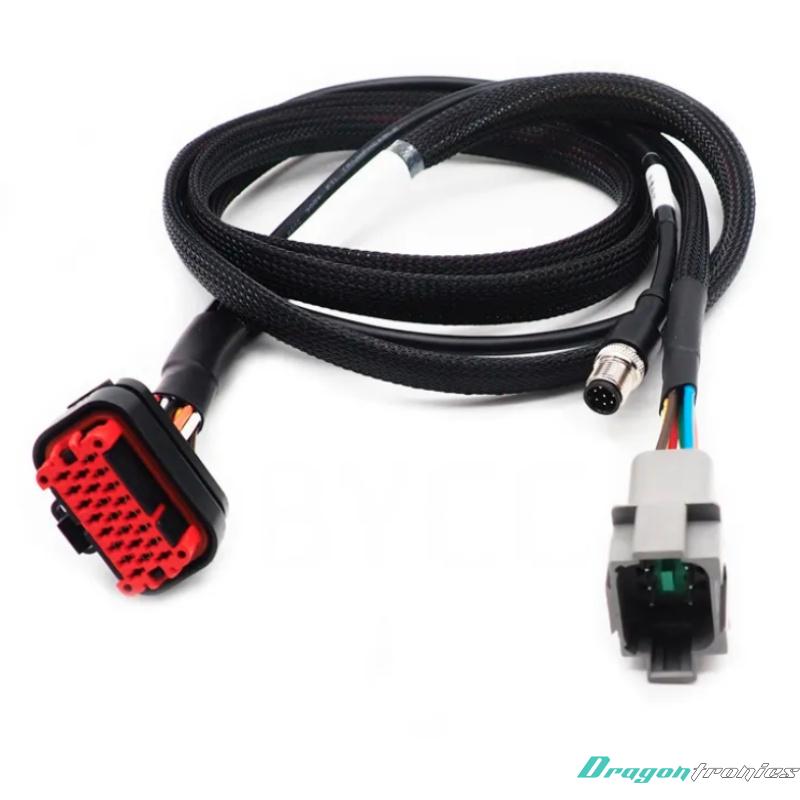

Auto navigation wiring harness Farm vehicle farm-equipment navigation wire harness

An Auto Navigation Wiring Harness or Farm Vehicle Farm-Equipment Navigation Wire Harness refers to a specialized bundle of electrical wires, connectors, and components used to integrate and support the navigation system within agricultural machinery and farm vehicles (like tractors, combine harvesters, sprayers, etc.). This wiring harness is designed to handle the specific needs of agricultural equipment, where navigation systems such as GPS (Global Positioning System), auto-steering, and precision farming technologies are becoming more common.

Function of the Auto Navigation Wiring Harness:

1. Powering the Navigation System:

o The wiring harness provides electrical power from the vehicle’s main electrical system to the various components of the navigation system, such as the GPS receiver, control unit, and auto-steering motor.

o It ensures that the navigation system has a stable and continuous power supply to operate without interruption, even in rugged and variable conditions.

2. Signal Transmission:

o The harness transmits data and signals between the different components of the navigation system. For instance, it carries signals from the GPS receiver to the vehicle's computer or auto-steering system, enabling real-time positioning and route tracking.

o The harness also facilitates communication between sensors and the central control unit (ECU), allowing for adjustments to be made based on terrain, field boundaries, and other factors.

3. Connectivity for GPS and Auto-Steering:

o GPS Receiver: Receives satellite signals to determine the precise location of the farm vehicle.

o Auto-Steering: The harness connects the navigation system to the auto-steering system, which adjusts the vehicle’s steering based on GPS data. This helps the vehicle stay on the correct path with minimal operator input.

o The harness also integrates other components such as RTK (Real-Time Kinematic) correction systems, which increase the accuracy of GPS signals to sub-inch levels.

4. Communication with Other Farm Equipment:

o In advanced precision farming setups, multiple pieces of equipment may be linked together. The navigation harness allows different pieces of equipment (e.g., tractors, harvesters, planters, and sprayers) to communicate with each other. This is especially useful for tasks like field mapping, soil sampling, or synchronized planting.

o The harness can also help connect the navigation system to the vehicle’s diagnostic system, providing feedback to the operator about system performance, potential malfunctions, or calibration issues.

5. Supporting Additional Features:

o The wiring harness might also connect other components related to farm equipment navigation, such as auto-rate controllers (which control the rate of fertilizer or pesticide application) or section control systems (which help optimize coverage and avoid overlap).

Applications of the Auto Navigation Wiring Harness in Farm Vehicles:

1. Tractors:

o The navigation harness is used in autonomous tractors or tractors with auto-steering systems that allow the vehicle to follow GPS coordinates for planting, tilling, or spraying. This helps reduce fuel consumption, increase precision, and minimize overlap.

2. Combine Harvesters:

o In harvesting machines, the navigation system helps optimize the harvesting route, ensuring that the vehicle follows predetermined paths to maximize efficiency, reduce fuel consumption, and improve harvesting accuracy.

3. Sprayers and Spreaders:

o Farm vehicles used for spraying pesticides, herbicides, or fertilizers benefit from section control systems, which ensure that the chemicals are applied evenly without overlap. The wiring harness connects the section control systems to the vehicle’s navigation system.

4. Seeders and Planters:

o In precision agriculture, seeders and planters are equipped with navigation systems to ensure uniform planting. The wiring harness helps ensure these systems are powered and communicating correctly.

5. Fleet Management:

o In larger farming operations, multiple pieces of equipment may be used simultaneously. The wiring harness helps connect all vehicles and implements in a fleet management system, enabling operators to monitor equipment performance, track location, and ensure synchronization across different machines.

6. Field Mapping and Data Collection:

o Some advanced systems allow farm vehicles to map the field in real time using GPS coordinates. The navigation wiring harness transmits data from sensors to a central system, providing data on soil moisture, crop health, and other critical factors that can be used for precision farming.

The Auto Navigation Wiring Harness for farm vehicles and farm equipment is a vital component for integrating advanced navigation technologies like GPS and auto-steering into agricultural machinery. It enables automated, precise, and efficient operations across a range of farm equipment, from tractors to harvesters to sprayers. By ensuring reliable power distribution, signal transmission, and system integration, the wiring harness helps optimize fieldwork, reduce costs, increase yield, and contribute to precision farming practices that improve sustainability and productivity on the farm.
