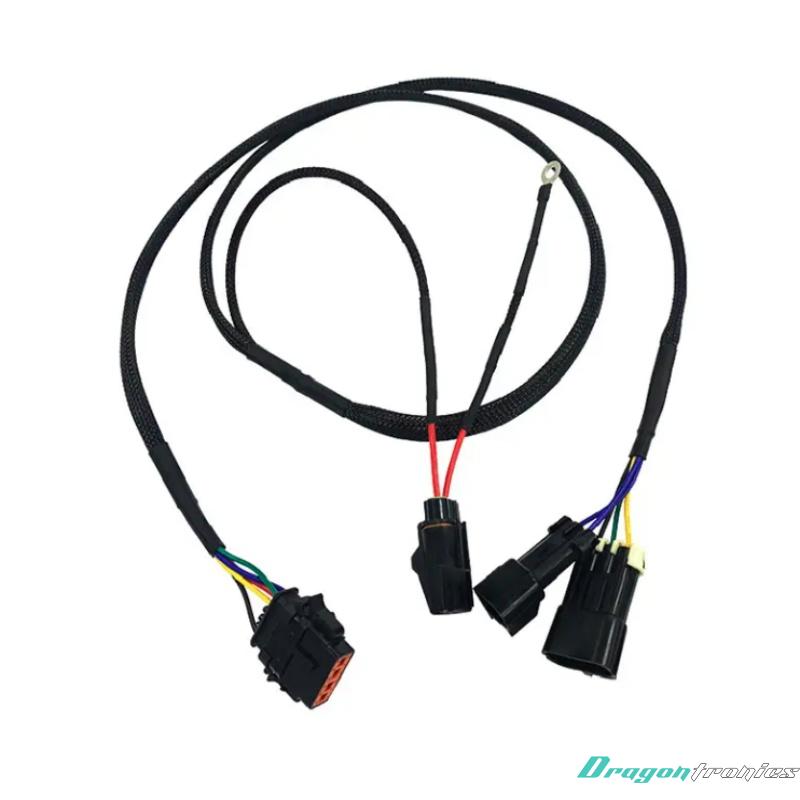

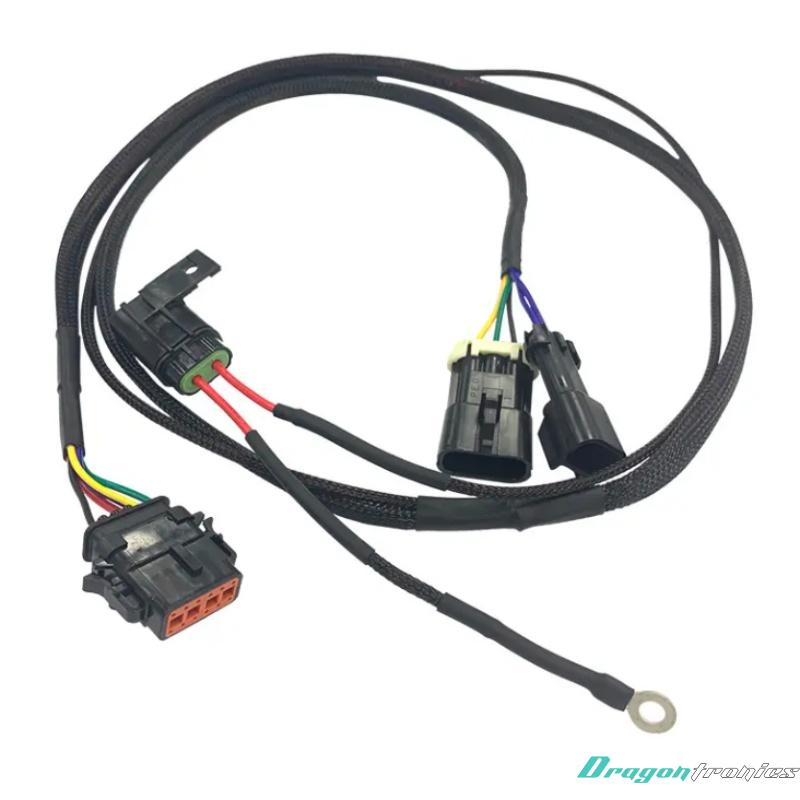

Cold Chain Vehicle Controller Control Harness Custom Cables And Wire Electrical Cables Wiring Harness

A Cold Chain Vehicle Controller Control Harness is an electrical wiring system used in cold chain logistics vehicles (such as refrigerated trucks, trailers, or delivery vans) to manage the operation of temperature-sensitive cargo. It connects various components of the refrigeration system (such as the compressor, thermostat, sensors, and the cold chain controller) to ensure the vehicle's cooling system maintains the proper temperature for perishable goods during transport.

Key Functions:

1. Power Distribution:

o The control harness provides electrical power to the various components of the cold chain system, including the refrigeration unit, compressors, fans, evaporators, and temperature sensors.

o It ensures that the cold chain controller has the necessary power to regulate and control the temperature within the refrigerated compartment.

2. Signal Transmission:

o The control harness is responsible for transmitting signals between the cold chain controller and the various system components. For example:

§ Temperature sensors inside the cargo area send data to the controller to indicate the current temperature.

§ The controller processes the data and sends signals to the compressor or fans to adjust the temperature accordingly.

§ Alarm systems or indicators may be activated if the temperature goes out of range, alerting the driver to any issues.

3. Temperature Regulation:

o The cold chain controller, typically connected to the vehicle's wiring harness, monitors the temperature and controls the refrigeration system to ensure that the cooling unit operates efficiently. It keeps the temperature within a specific range suitable for transporting perishable goods like food, pharmaceuticals, or chemicals.

4. Safety and Monitoring:

o The control harness may include features for monitoring and safety, such as triggering alarms if there is a failure in the refrigeration system (e.g., a malfunctioning compressor or power failure). These signals may be transmitted to the vehicle’s driver interface or to a central monitoring system for real-time tracking.

Components of a Cold Chain Vehicle Controller Control Harness:

1. Wires and Cables:

o The harness is made up of power wires to supply electricity to various parts of the refrigeration system, and signal wires for transmitting data from the sensors to the control unit and vice versa. These wires are usually designed to be durable and resistant to temperature extremes, vibration, and moisture.

2. Connectors:

o The harness includes connectors at each end to plug into the cold chain components such as the temperature sensors, compressors, evaporators, and the controller. These connectors are often designed to be waterproof, corrosion-resistant, and vibration-resistant to withstand the harsh conditions of a moving vehicle.

3. Fuses and Relays:

o Fuses and relays are included in the harness to protect the system from electrical surges or faults. For example, if the refrigeration unit draws too much current, a fuse will blow, preventing damage to the entire system. Relays are used to switch on and off components like the compressor or fan, based on signals from the controller.

4. Temperature Sensors:

o The wiring harness connects temperature sensors to the cold chain controller. These sensors are installed within the refrigerated space to constantly measure the temperature and ensure it stays within the desired range. If the temperature deviates beyond the preset thresholds, the system can activate cooling or heating components to correct it.

5. Control Unit or Controller:

o The cold chain controller is the brain of the system, receiving inputs from the temperature sensors and controlling the various components (such as the refrigeration unit and fans). It ensures the cooling system maintains the proper temperature for the perishable goods being transported.

Applications of Cold Chain Vehicle Controller Control Harness:

1. Refrigerated Transport:

o The harness is most commonly found in refrigerated trucks, trailers, vans, and shipping containers. These vehicles are used to transport perishable goods such as food, medicine, chemicals, and other temperature-sensitive products that need to be kept within a specific temperature range to maintain quality and safety during transport.

2. Pharmaceutical and Medical Supply Transport:

o In the pharmaceutical industry, the temperature control system is critical for the safe transport of drugs, vaccines, and other sensitive medical supplies. A well-functioning cold chain vehicle harness ensures that the temperature-sensitive products are kept at the proper temperature throughout the delivery process.

3. Food Industry:

o The cold chain vehicle harness is essential for transporting fresh produce, meats, dairy products, and frozen foods, ensuring that these items are kept at safe temperatures from the warehouse to the point of delivery.

4. Temperature-Controlled Logistics:

o Beyond just food and pharmaceuticals, the cold chain control system is used in various industries that require strict temperature control, such as cosmetics, chemicals, and biotechnology.

Conclusion:

A Cold Chain Vehicle Controller Control Harness is a specialized wiring system that ensures the efficient and reliable operation of a vehicle's refrigeration system, keeping temperature-sensitive goods like food, pharmaceuticals, and chemicals at the correct temperature during transport. It connects various components of the cooling system, including the cold chain controller, temperature sensors, compressors, and fans, enabling precise temperature regulation. With features like signal transmission, safety monitoring, and environmental durability, this wiring harness plays a critical role in maintaining the integrity of perishable goods in transit and ensuring compliance with industry regulations.
