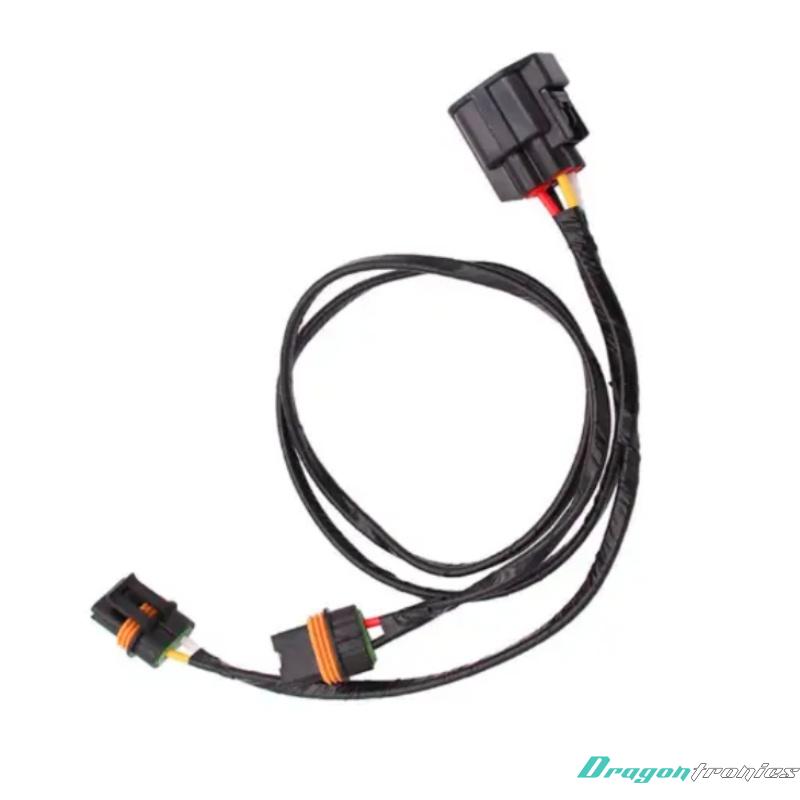

Cooling Fan Wiring Harness

A Cooling Fan Wiring Harness is a specialized electrical component used in vehicles and machinery to control the cooling fan system. This wiring harness connects the cooling fan to the vehicle’s electrical system, ensuring the fan operates at the appropriate times to regulate the engine's temperature. It is designed to transfer power and control signals between the cooling fan, the engine control unit (ECU), temperature sensors, and other components that regulate engine cooling.

Key Features of a Cooling Fan Wiring Harness:

1. Connects the Cooling Fan to Power and Control Signals:

o The wiring harness ensures that the cooling fan receives the necessary power from the vehicle’s electrical system and the control signals (on/off or variable speed) from the ECU or a dedicated fan relay.

o The relay or temperature switch in the harness is responsible for controlling when the fan turns on, based on the engine's temperature or other conditions.

2. Temperature Sensing:

o The harness may incorporate wires connected to temperature sensors or thermostats located in the engine block or radiator. When the temperature exceeds a preset level, the sensor sends a signal to the fan relay or ECU to activate the fan and reduce the engine temperature.

3. Durable and Heat-Resistant:

o Cooling fan wiring harnesses are built to withstand the high temperatures, vibration, and environmental conditions inside the engine bay. They are typically made from high-quality, heat-resistant materials like PVC, Teflon, or silicone, which help prevent damage from engine heat or corrosive elements.

4. Relays and Fuses:

o The wiring harness typically includes relays to control the fan's operation and fuses for overcurrent protection. If the fan draws too much current (due to a fault), the fuse will blow, protecting the rest of the system from electrical damage.

5. Connectors and Terminals:

o The harness features connectors for securely attaching the wires to the cooling fan, temperature sensors, and the vehicle's electrical system. These connectors are often sealed to prevent water, dust, and corrosion from damaging the connections.

6. Color-Coded Wiring:

o Many cooling fan wiring harnesses use color-coded wires for easy identification of different circuits, such as power, ground, and signal wires.

Applications of a Cooling Fan Wiring Harness:

1. Automobiles:

o In cars, trucks, and SUVs, the cooling fan wiring harness plays a crucial role in controlling the radiator fan or engine cooling fan. It ensures the fan operates when the engine temperature rises beyond a safe threshold.

o The harness connects the fan motor to the vehicle's ECU, temperature sensor, and relays to automatically turn the fan on and off as needed.

2. Trucks and Heavy-Duty Vehicles:

o Larger vehicles like trucks, buses, and heavy equipment also use cooling fans to regulate engine temperature. A cooling fan wiring harness in these applications must handle higher power loads and be built to withstand more extreme environments.

3. Industrial Equipment:

o In industrial machinery, generators, construction equipment, and HVAC systems, cooling fans are used to prevent overheating of components. The wiring harness in these applications connects the cooling fan to the system’s control circuitry, ensuring reliable operation.

4. Electric and Hybrid Vehicles:

o In electric vehicles (EVs) and hybrid vehicles, cooling fans are essential to regulate the temperature of the battery pack and electric motor. The wiring harnesses in these vehicles connect the cooling fans to the power electronics and battery management system to ensure efficient thermal management.

Advantages of a Cooling Fan Wiring Harness:

1. Simplifies Installation:

o A dedicated wiring harness for the cooling fan simplifies installation by ensuring that all the necessary connections (power, signal, ground) are pre-wired and clearly labeled. It reduces the time and effort needed for wiring the fan system.

2. Improves Reliability:

o A quality cooling fan wiring harness improves the reliability of the cooling fan system by reducing the risk of wiring errors, loose connections, or shorts, which could lead to fan failure or engine overheating.

3. Protection and Safety:

o The inclusion of fuses and relays in the harness helps protect the fan system and the vehicle's electrical system from overloading or short circuits. If there's a fault, the fuse will blow, preventing damage to other components.

4. Durable Construction:

o The use of heat-resistant and abrasion-resistant materials ensures that the wiring harness can withstand the high temperatures and harsh conditions inside the engine compartment, enhancing its lifespan and performance.

5. Efficient Temperature Control:

o A properly functioning cooling fan wiring harness ensures that the engine or system stays within the optimal operating temperature range, preventing overheating, which can lead to engine damage and poor performance.

Conclusion:

A Cooling Fan Wiring Harness is a crucial part of the vehicle or machinery’s cooling system that ensures the cooling fan operates efficiently to prevent overheating. It connects the cooling fan to the vehicle’s electrical system, including the ECU, temperature sensors, and relays, allowing the fan to turn on or off based on the engine’s or system’s temperature. With its durable construction, heat resistance, and safety features like fuses and relays, the cooling fan wiring harness plays a key role in maintaining engine health and preventing damage caused by excessive heat. Whether in automobiles, trucks, industrial equipment, or electric vehicles, a well-designed cooling fan wiring harness ensures that the engine stays cool and performs optimally.
