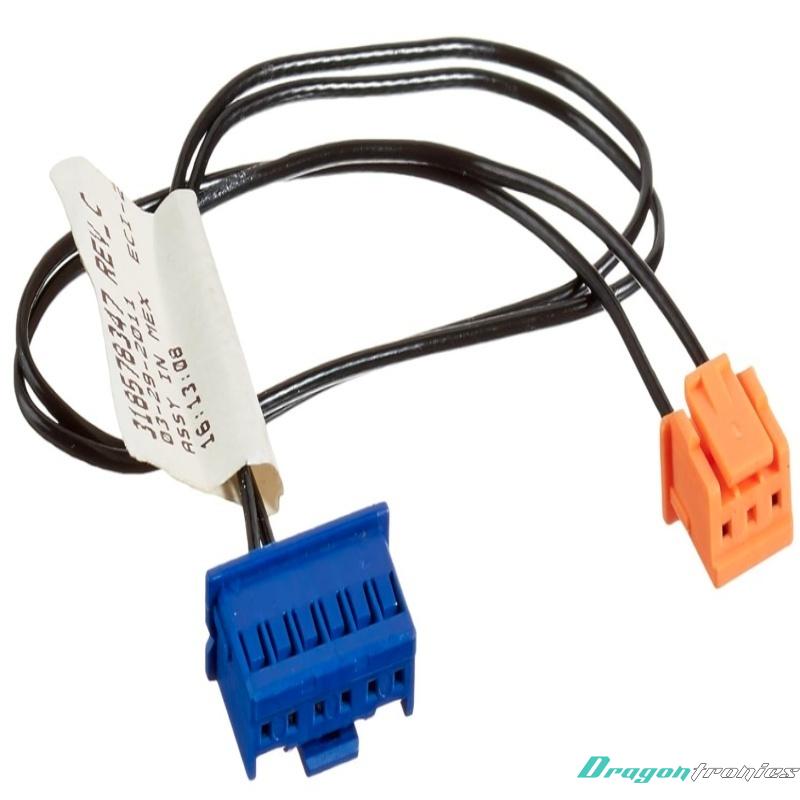

Oven Wire Harness

1. High-Temperature Resistance:

· Materials: Typically made from materials like silicone, fiberglass, or Teflon, which can withstand high temperatures without degrading

· Temperature Rating: Designed to operate safely at temperatures exceeding 200°C (392°F)

2. Wire Gauge:

· AWG (American Wire Gauge): Commonly used wire sizes range from 10 AWG to 14 AWG, depending on the current requirements of the oven

· Current Capacity: The wire gauge is selected based on the amperage rating of the oven, ensuring safe and efficient operation

3. Insulation:

· Type: High-temperature insulation materials such as silicone or fiberglass are used to protect the wires from heat and abrasion

· Durability: Insulation is designed to resist moisture, chemicals, and physical wear

4. Connectors:

· Types: High-quality connectors like crimp terminals or screw terminals are used to ensure secure and reliable connections

· Material: Often made from metals like copper or brass, which provide good conductivity and resistance to corrosion

Applications of Oven Wire Harness

1. Household Ovens:

· Electric Ovens: Connects heating elements, temperature sensors, and control panels, ensuring efficient and safe operation

· Gas Ovens: Used to connect electronic ignition systems, timers, and safety controls

2. Commercial Ovens:

· Industrial Kitchens: Ensures reliable operation of large-scale ovens used in restaurants and bakeries

· Specialized Equipment: Used in ovens designed for specific industrial applications, such as curing or drying processes

3. Other High-Temperature Appliances:

· Toasters and Broilers: Similar wire harnesses are used in other kitchen appliances that operate at high temperatures

· Kilns and Furnaces: In industrial settings, these wire harnesses are used in equipment that requires high-temperature resistance

By using high-quality materials and precise construction techniques, oven wire harnesses ensure the safe and efficient operation of ovens and other high-temperature appliances. If you have any more specific questions or need further details, feel free to ask!

Key Considerations

· Heat Resistance: Since the oven operates at high temperatures, the wire insulation must be rated for heat tolerance.

· Durability: The wire harness must be robust enough to withstand the mechanical stresses inside the oven, such as vibration and thermal cycling.

· Safety: Proper insulation and secure connectors are vital to prevent electrical shorts or fires.

· Customization: Depending on the oven model, wire harnesses can be customized to fit specific designs or features, such as multi-stage heating, smart controls, or additional safety mechanisms.

In summary, oven wire harnesses are crucial for ensuring the safe and efficient operation of the oven by connecting all the electrical components while withstanding high temperatures and mechanical stress. They are used in connecting heating elements, thermostats, safety features, and other electrical parts to the power supply and control systems of the oven.
