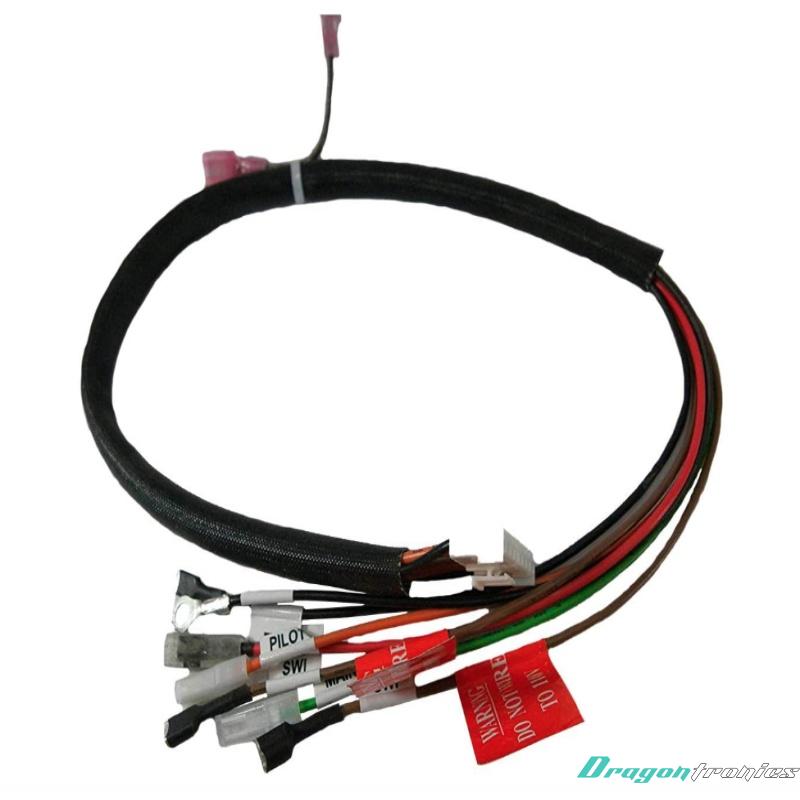

Hearth & Home Wiring Harness Cable Assembly

A Hearth & Home wiring harness is a critical component used in various hearth appliances, including gas fireplaces, wood stoves, inserts, and other types of home heating equipment. The wiring harness ensures proper electrical connections between all components of the appliance, enabling them to operate safely and efficiently. Below is an overview of the specifications and applications of a typical Hearth & Home wiring harness.

Key Considerations

· Heat Resistance: Since hearth appliances generate significant heat, the wiring harness must be able to withstand these conditions, which is why heat-resistant insulation materials like silicone or Teflon are used.

· Safety: Proper insulation, secure connectors, and the use of corrosion-resistant materials are vital to ensure the wiring harness does not pose a fire or electrical hazard.

· Vibration Resistance: Given the movement and vibrations from appliances such as stoves and fireplaces, the wiring harness must be built to endure mechanical stresses without compromising electrical performance.

· Durability: The harness must be able to function reliably over long periods, even in environments with high temperatures, dust, moisture, and other challenging conditions typical in hearth settings.

Summary

The Hearth & Home wiring harness is a specialized electrical component that plays an essential role in ensuring the proper and safe functioning of hearth appliances, such as gas fireplaces, stoves, and inserts. The harness connects various components like ignition systems, gas valves, thermocouples, blowers, and control systems, allowing them to operate in a coordinated manner. Specifications such as wire material, insulation type, wire gauge, and temperature rating are carefully selected to withstand the high temperatures and demanding conditions typical of these appliances. The wiring harness provides not only safety and reliability but also enables modern features such as remote control, LED lighting, and thermostat regulation.

Applications of Hearth & Home Wiring Harness

1. Fireplaces:

· Gas Fireplaces: Connects ignition systems, control modules, and safety sensors to ensure safe and efficient operation.

· Electric Fireplaces: Used to connect heating elements, fans, and control panels.

2. Home Heating Systems:

· Furnaces: Ensures reliable connections between thermostats, control boards, and heating elements.

· Space Heaters: Used in portable and fixed space heaters to connect various electronic components.

3. Outdoor Heating:

· Patio Heaters: Connects ignition systems and control units in outdoor patio heaters.

· Fire Pits: Used in gas fire pits to connect ignition and control systems.

4. Other Hearth Products:

· Stoves: Used in gas and electric stoves to connect control panels, igniters, and safety sensors.

· Inserts: Ensures reliable operation of fireplace inserts by connecting various electronic components.

The Hearth & Home wiring harness is designed to meet the specific needs of hearth and home applications, ensuring safe, efficient, and reliable operation. If you need more detailed information or have specific questions, feel free to ask!
