Customized Agricultural machinery Wiring Harness

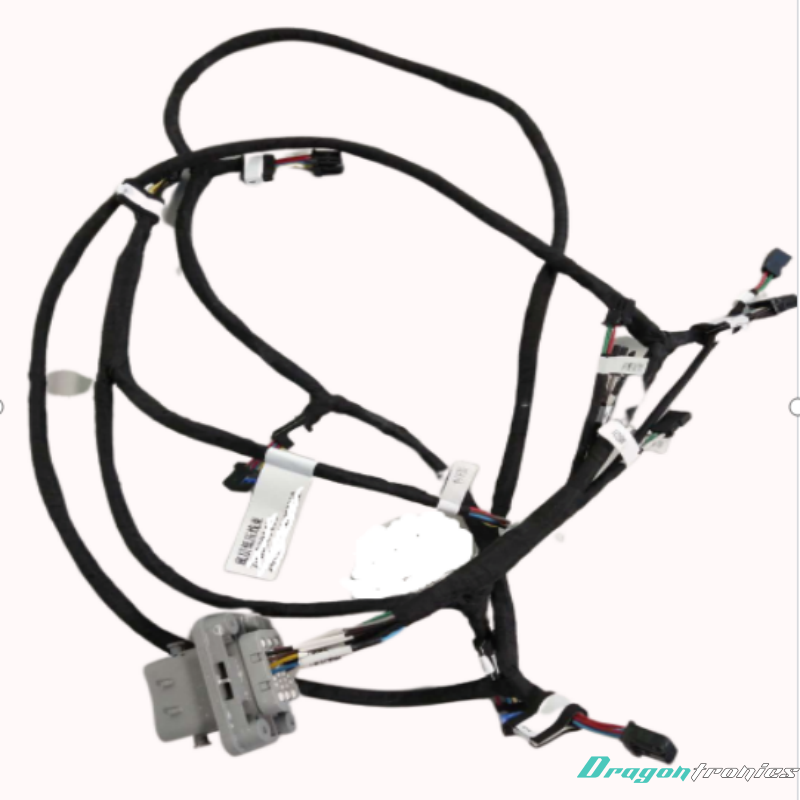

An Agricultural Machinery Wiring Harness is a specialized electrical wiring assembly used in agricultural machinery, such as tractors, combines, harvesters, plows, and other farming equipment. The wiring harness ensures that various electrical systems on the machinery are connected and function properly. It enables the transmission of power and signals to critical components, including the engine, lighting systems, sensors, GPS systems, and hydraulic controls.

Functions of an Agricultural Machinery Wiring Harness:

1. Power Distribution:

o The wiring harness distributes electrical power from the vehicle's power source (typically a battery or alternator) to various components of the machinery, such as engines, hydraulic systems, lights, fans, and control panels.

2. Signal Transmission:

o It transmits signals from sensors, switches, and control units to ensure proper communication between components. For instance, signals from sensors (e.g., temperature sensors, oil pressure sensors) are routed through the wiring harness to the machinery's control system.

3. Control System Integration:

o The wiring harness integrates the machinery’s electrical control systems, ensuring that electrical signals are properly transmitted between ECUs (Engine Control Units), hydraulic systems, lights, motors, and other electrical systems.

4. Safety and Diagnostic Functions:

o The wiring harness connects safety features, such as emergency stop switches, warning lights, and alarm systems, to the vehicle's electrical circuits. It also supports diagnostic systems that allow technicians to troubleshoot issues with the machinery’s electrical components.

5. Lighting Systems:

o The wiring harness powers the machinery’s lighting systems, such as headlights, work lights, turn signals, and hazard lights, allowing operators to work in low light or night-time conditions safely.

6. Advanced Features Integration:

o In modern agricultural machinery, wiring harnesses support the integration of advanced technologies such as GPS, automated steering systems, autonomous functions, and telematics systems for data collection and remote monitoring.

Advantages of an Agricultural Machinery Wiring Harness:

1. Reliability:

o A well-designed wiring harness ensures that all electrical systems on agricultural machinery work efficiently and reliably, even in harsh and challenging environments like farms.

2. Safety:

o The wiring harness protects vital components of agricultural machinery by preventing short circuits, overcurrent, and electrical malfunctions through the use of fuses, relays, and grounding.

3. Durability:

o Agricultural machinery wiring harnesses are typically built to withstand the tough conditions of farming, including exposure to dirt, moisture, vibration, and extreme temperatures.

4. Easy Maintenance:

o A properly organized and well-marked wiring harness simplifies maintenance and repair. It reduces downtime by making it easier for technicians to troubleshoot electrical issues, locate faults, and replace damaged parts quickly.

5. Customization:

o Wiring harnesses can be custom-designed to meet the specific needs of different types of agricultural machinery or specific configurations. This ensures that the electrical system supports unique functions or modifications of the machinery.

6. Improved Efficiency:

o By integrating advanced systems such as GPS, automatic steering, and sensors, wiring harnesses enhance the precision and automation of farming tasks, leading to better operational efficiency and yield.

Conclusion:

An Agricultural Machinery Wiring Harness is a critical component that connects and powers the electrical systems of farming equipment. From engine control to lighting, sensors, and telemetry systems, the wiring harness ensures that all electrical functions are seamlessly integrated. It plays a vital role in the overall performance, safety, and efficiency of agricultural machinery, helping farmers to manage their equipment effectively and improve productivity in the field.
