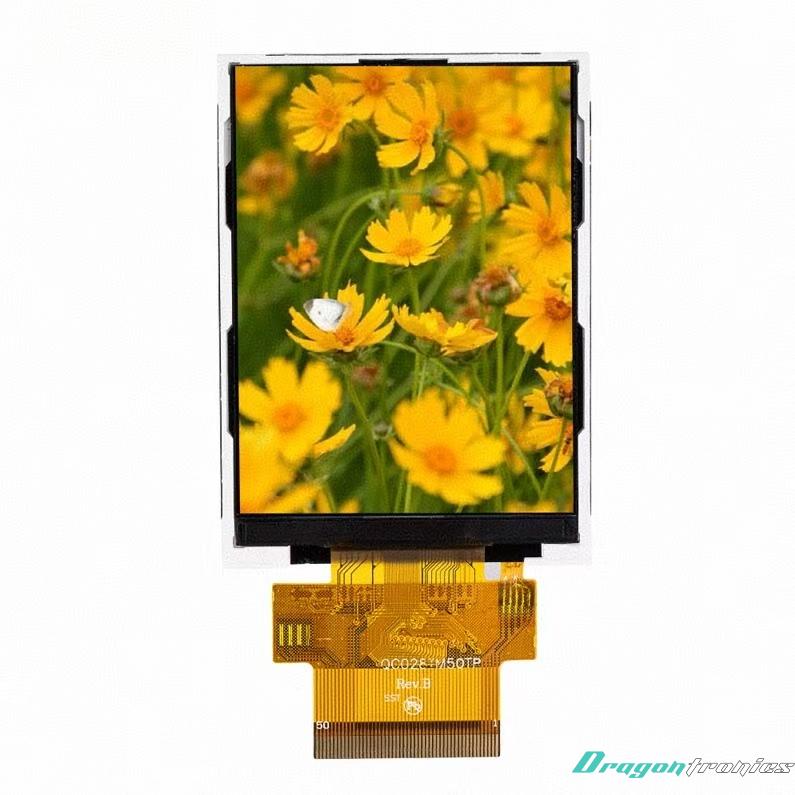

2.8 Inch TN TFT LCD Module Display Resolution 240×320

2.8" TN TFT LCD Module

1. Specifications

Specification Notes

• TN / Normally White:
o Default display state is white when no voltage is applied.
o Provides fast response time and cost-effective performance, with narrower viewing angles compared to other technologies.

• 240×320 Resolution:
o QVGA resolution with RGB sub-pixels.
o Suitable for displaying text, graphics, icons, and basic UI elements.

• 6 o’clock Viewing Direction:
o Best visual performance when viewed from below the display.
o Viewing from other angles may cause contrast or color shifting.

• 8-bit MPU Interface:
o Supports parallel communication with microcontrollers.
o Commonly used in embedded systems for command and data transfer.
o Balances simplicity and compatibility with various MCU platforms.

2. Functions

Display Function

• Displays text, images, icons, and graphical user interfaces
• Supports full-color rendering using RGB pixel structure

Communication Function

• Transfers command and display data via 8-bit MPU interface
• Compatible with common microcontrollers (e.g., STM32, Arduino, ESP series)

Control Function

• Supports standard display operations:
o Display ON/OFF
o Sleep / standby mode
o Address window setting
o Screen orientation control

Performance Characteristics

• Fast response time typical of TN panels
• Cost-effective solution for general-purpose display applications
• Best suited for applications where viewing angle is not critical

3. Applications

This 2.8-inch TFT LCD module is suitable for a variety of embedded and portable applications:

Industrial Equipment

• Control panels
• Measurement and monitoring devices
• Industrial instruments

Consumer Electronics

• Small display modules
• Entry-level GUI devices
• Handheld controllers

Embedded Systems / IoT

• Microcontroller-based systems (STM32, ESP32, Arduino)
• Human-Machine Interface (HMI)
• Smart control and automation systems

Portable Devices

• Data loggers
• Testing tools
• Portable monitoring devices

Summary

This 2.8-inch TN TFT LCD module features a 240×320 resolution, compact size, and an 8-bit MPU interface, making it a cost-effective and reliable display solution for embedded systems, industrial equipment, and portable devices requiring simple integration and fast response performance.
