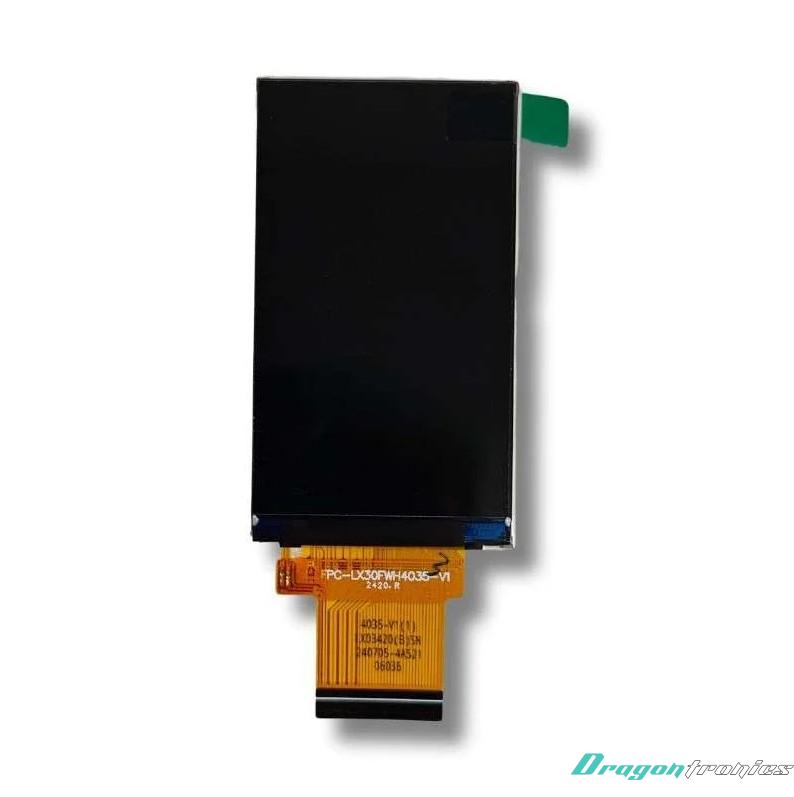

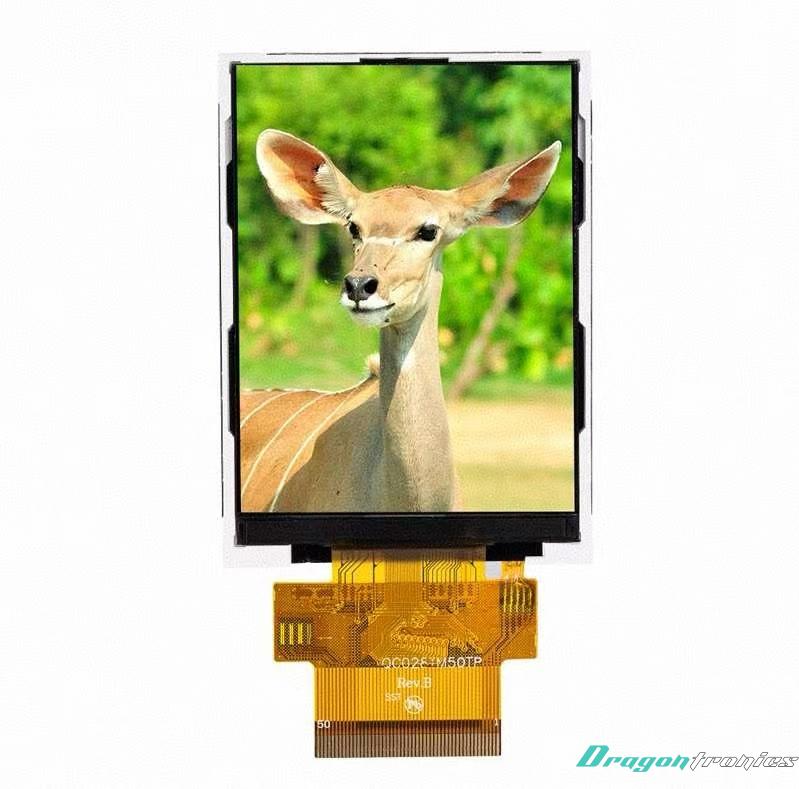

2.8 Inch TFT LCD Display Module-240x320 Display

2.8" TN TFT DISPLAY

Display Size:      2.8"

LCD Type:         TN/Normally white

Resolution:        240(RGB)*320

View Direction:  6 O'Clock

Module Outline: 50x69.2x3.75mm

Interface:            8bit MPU Interface

LCD Specifications

Functions

· Displays graphical and textual content

· Supports RGB pixel-based rendering (240×320 resolution)

· Operates using an 8-bit MPU interface for communication with microcontrollers

· “Normally white” mode: pixels appear white when inactive

· Optimized viewing from the 6 o’clock direction (best visibility from below)

Applications

· Embedded systems and microcontroller projects

· Industrial control panels

· Handheld devices

· Consumer electronics (e.g., small monitors, controllers)

· IoT devices and display modules

· DIY electronics (e.g., Arduino, Raspberry Pi interfaces

Summary

This is a 2.8-inch TN (Normally White) LCD with a 240 × 320 RGB resolution, designed for clear graphical display in compact devices. It features a 6 o’clock viewing direction, meaning optimal visibility from below, and comes in a compact module size of 50 × 69.2 × 3.75 mm. The display uses an 8-bit MPU interface, making it suitable for integration with microcontrollers in embedded and industrial applications.
