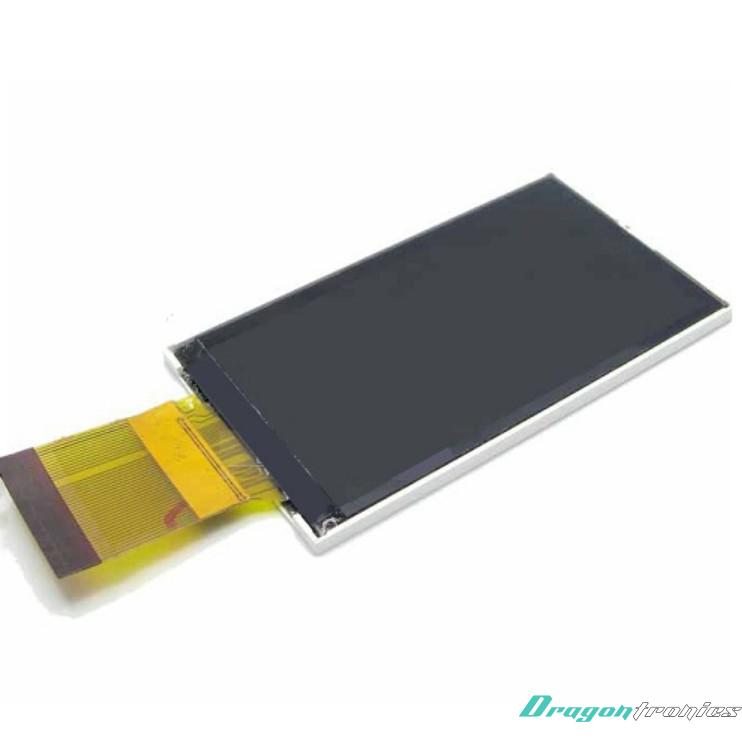

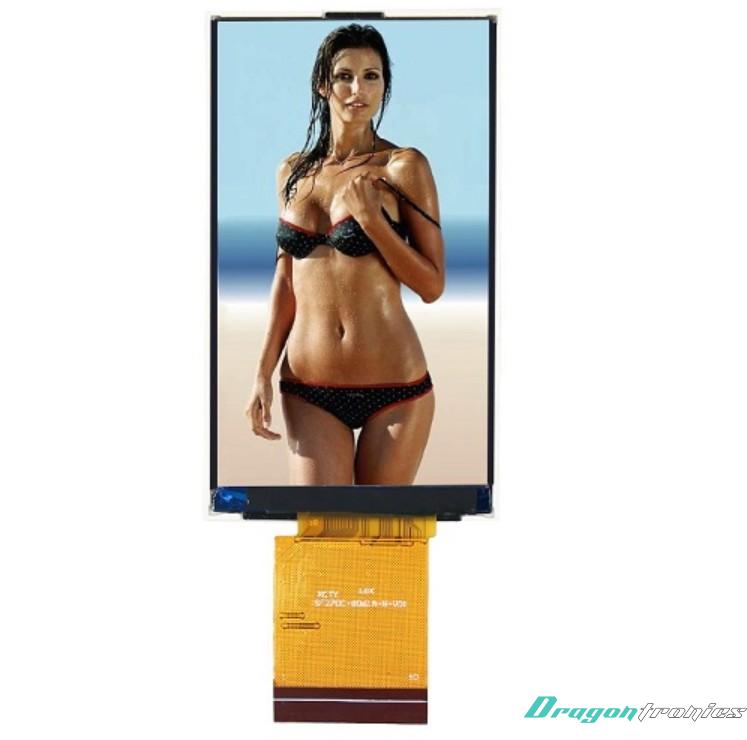

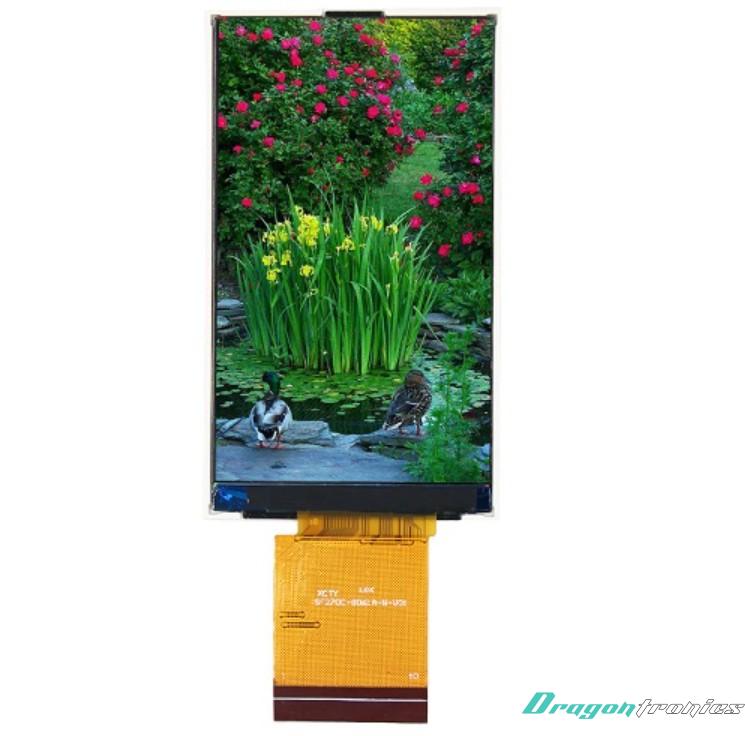

2.7 inch TFT LCD TN 320 (RGB) × 240 Display Module

2.7" TN TFT LCD Module

1. Specifications

Specification Notes

· TN / Normally White:

o Default display state is white when no voltage is applied.

o Offers fast response time and cost-effective performance, but with limited viewing angles.

· 320×240 Resolution:

o Standard QVGA resolution with RGB sub-pixels.

o Suitable for graphical user interfaces, icons, and text display.

· 9 o’clock Viewing Direction:

o Best image quality when viewed from the left side of the display.

o Viewing from other directions may result in contrast or color shift.

· 8-bit RGB + 3-wire SPI Interface:

o RGB (8-bit): Handles pixel data transmission.

o 3-wire SPI: Used for command control and register configuration.

o Combination provides a balance between performance and pin efficiency.

2. Functions

Display Function

· Displays text, graphics, icons, and simple UI elements.

· Supports full-color rendering using RGB pixel structure.

Communication Function

· Receives pixel data via 8-bit RGB interface.

· Uses 3-wire SPI for initialization, commands, and configuration.

Control Function

· Supports standard display operations:

o Display ON/OFF

o Sleep / standby mode

o Address window setting

o Screen orientation control

Performance Characteristics

· Fast response time typical of TN panels.

· Optimized for applications where cost and speed are more critical than wide viewing angle.

3. Applications

This 2.7-inch TFT LCD module is suitable for a wide range of embedded and portable applications:

Industrial Equipment

· Handheld measurement devices

· Industrial control panels

· Diagnostic instruments

Consumer Electronics

· Portable display devices

· Entry-level GUI interfaces

Embedded Systems / IoT

· Microcontroller-based systems (e.g., STM32, ESP32, Arduino)

· Human-Machine Interface (HMI) applications

· Smart control systems

Portable Devices

· Data loggers

· Barcode scanners

· Field service tools

Summary

This 2.7-inch TN TFT LCD module features QVGA (320×240) resolution, a compact form factor, and an 8-bit RGB + SPI interface, offering a cost-effective and responsive display solution for embedded systems, industrial devices, and portable applications where fast performance and simple integration are required.
