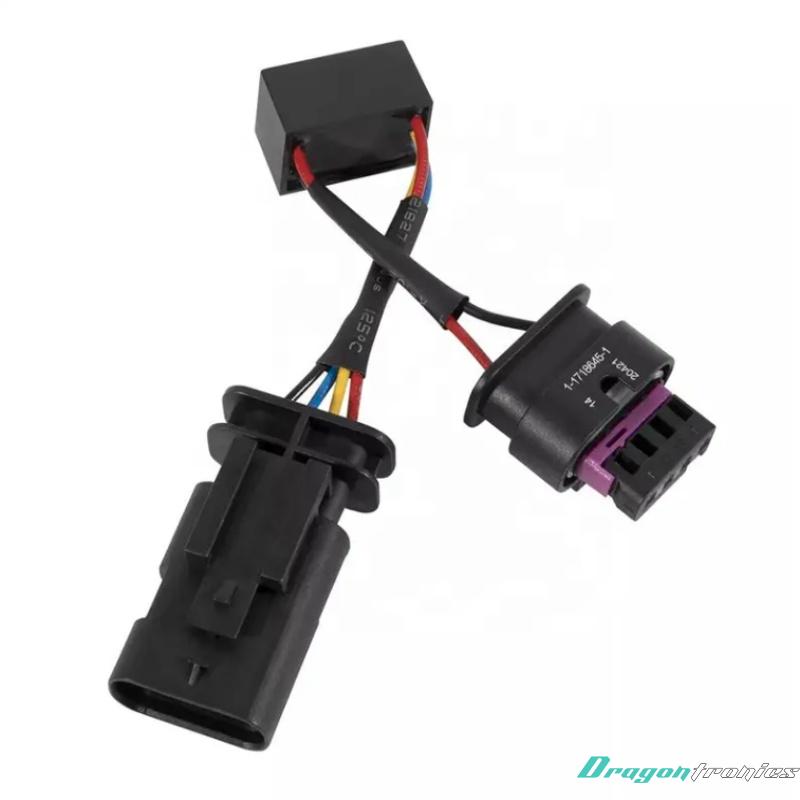

Locker Sensor Bypass Wiring Harness

A Locker Sensor Bypass Wiring Harness is an electrical component used to bypass or override the locker sensor in a vehicle’s differential lock or traction control system. Typically, these sensors are used in locking differentials or limited-slip differentials (LSD) in off-road or four-wheel-drive (4WD) vehicles, where they control or monitor the engagement and disengagement of the locking mechanism.

When performing modifications, repairs, or upgrades (such as swapping out a differential or installing an aftermarket locker), the vehicle’s factory wiring and sensors may not be compatible with the new setup. The Locker Sensor Bypass Harness is used to allow the vehicle’s electrical system to function properly without the original locker sensor being connected or actively controlling the system.

Key Functions of a Locker Sensor Bypass Wiring Harness:

1. Bypass/Override the Locker Sensor:

o The primary function of this harness is to bypass the factory locker sensor that would typically monitor or control the engagement of a differential locker (e.g., in a lockable rear differential). This is helpful when you install an aftermarket locking differential, or if the sensor is faulty or incompatible with the new setup.

2. Prevent Warning Lights or Error Codes:

o Many vehicles with traction control systems or advanced stability control systems will display warning lights or trigger error codes when the locker sensor is disconnected or not functioning properly. The bypass harness prevents these issues by tricking the vehicle’s computer into thinking the system is operating as it should.

3. Allow for Aftermarket Locker Installation:

o Aftermarket lockers (such as air lockers, electrical lockers, or manual lockers) often require different wiring or controls than the stock system. The bypass harness enables the new locker to function correctly without the need for the factory locker sensor to be part of the system, allowing the driver to engage or disengage the locker as desired.

4. Maintain Normal Vehicle Operation:

o The harness ensures that the vehicle's traction control and ABS (Anti-lock Braking System) systems continue to operate normally, even if the locker sensor is bypassed, ensuring that the vehicle doesn’t enter into a "limp mode" or have other issues due to sensor malfunctions or incompatibility.

Applications of a Locker Sensor Bypass Wiring Harness:

1. Aftermarket Locking Differentials:

o This harness is commonly used when installing an aftermarket locking differential, such as a Detroit Locker, ARB Air Locker, or Eaton Truetrac, in vehicles that originally came with a factory locking differential. The factory locker sensor may not be compatible with the new locker, and the bypass harness solves this issue.

2. Faulty Locker Sensors:

o If a factory locker sensor fails and cannot be easily replaced or repaired, a bypass harness can be used to eliminate the need for the sensor, allowing the vehicle to operate without triggering warning lights or error codes.

3. Differential Swaps or Upgrades:

o When swapping out the entire differential assembly (e.g., replacing a stock open differential with a limited-slip or locking differential), the bypass harness can be used to disconnect or bypass the factory locker sensor and avoid triggering problems in the vehicle’s electrical system.

4. Off-Road or 4WD Vehicles:

o This harness is often used in off-road or 4WD vehicles, where locking differentials are crucial for maintaining traction in tough terrain. These vehicles are frequently modified for performance, and bypassing the locker sensor can be part of that upgrade process.

5. Tuning and Custom Modifications:

o Enthusiasts or off-roaders who are modifying their vehicles for higher performance, custom features, or specialized off-road use might use a locker sensor bypass to tailor the vehicle’s drivetrain to their needs.

Why You Might Need a Locker Sensor Bypass Wiring Harness:

1. Aftermarket Component Compatibility: When upgrading to an aftermarket locker, the vehicle's factory locker sensor might not be compatible or might not work with the new system. The bypass harness allows the new system to operate without issues.

2. Preventing Error Codes: If a factory locker sensor fails or is disconnected, it can cause issues with the vehicle's electronics, such as check engine lights, traction control errors, or other diagnostic trouble codes. A bypass wiring harness prevents these issues.

3. Simplifying Modifications: For off-road enthusiasts and DIY mechanics, a locker sensor bypass wiring harness simplifies the installation of new components and reduces the need to rewire or troubleshoot complex factory sensor systems.

4. Improved Functionality: In some cases, bypassing the sensor allows for better control of the locker system, especially if you're installing a manual locker or a different type of traction device that requires independent control from the factory sensor system.

Key Features of a Locker Sensor Bypass Wiring Harness:

· Plug-and-play design for easy installation, reducing the need for splicing wires or complex rewiring.

· Durable connectors and materials designed to withstand off-road conditions and the harsh environment in which they are used.

· Pre-configured wiring to ensure compatibility with the specific make and model of the vehicle, often including adapters for different types of locker sensors or connectors.

· Prevents warning lights or dashboard alerts related to the locker system, allowing the vehicle’s electronics to continue functioning without error codes.

· Ensures proper operation of other vehicle systems, such as traction control and ABS, even when the factory locker sensor is bypassed.

Conclusion:

A Locker Sensor Bypass Wiring Harness is an essential tool for anyone upgrading, modifying, or replacing a vehicle’s differential locking system, especially in off-road or 4WD vehicles. It allows users to bypass or override the factory locker sensor to ensure the vehicle continues to operate properly, preventing error codes or warning lights when installing aftermarket lockers or modifying the drivetrain. By simplifying the modification process, the bypass harness ensures that drivers can take full advantage of their vehicle's capabilities without electronic interference or system malfunctions.
