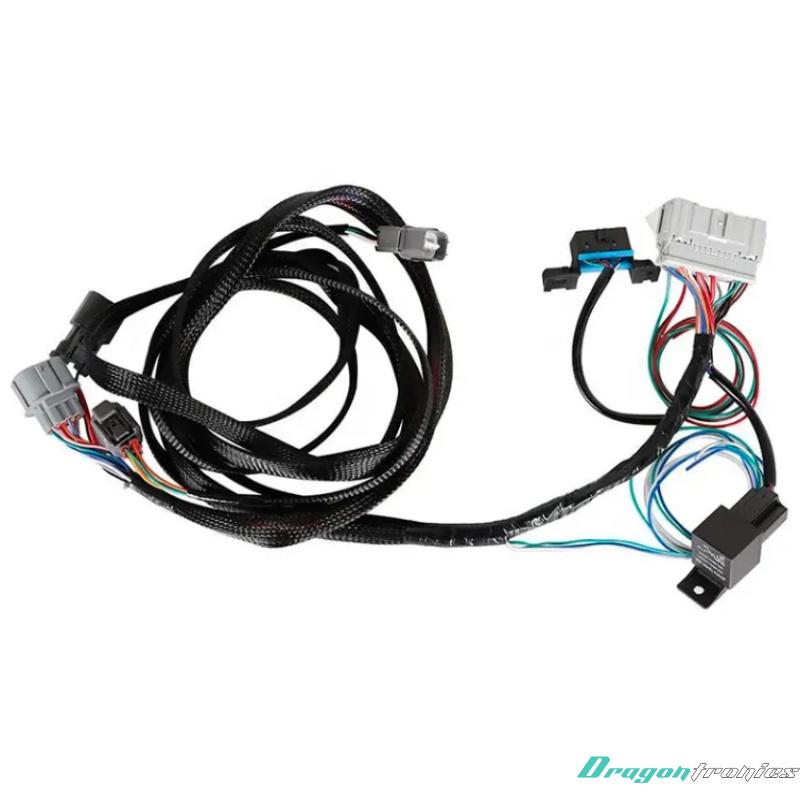

A K-Swap Conversion Harness is a custom electrical harness designed to facilitate the engine swap of a Honda K-series engine (such as the K20 or K24) into a vehicle that was originally designed for a different engine, typically from the Honda B-series or D-series engine families. The "K-Swap" refers to swapping one of Honda's K-series engines into a chassis that wasn't originally equipped with one.

This harness is an essential part of the K-Swap conversion, as it ensures that the engine and its related components can be connected to the vehicle’s existing electrical system, allowing the vehicle to run properly after the engine swap.

Key Functions of a K-Swap Conversion Harness:

1. Engine-to-Vehicle Electrical Interface:

o The K-Swap conversion harness connects the new K-series engine to the vehicle’s stock wiring system, such as the ECU (Engine Control Unit), sensors, fuel system, and ignition system. It allows the new engine's wiring to interface with the rest of the car’s electrical systems, which were initially designed for a different engine.

2. Adaptation of Sensors and ECU Connections:

o The harness includes connectors and wiring to ensure that all sensors (e.g., crankshaft position sensor, camshaft position sensor, MAP sensor, etc.) and the ECU can communicate properly with the new engine. This allows the vehicle to correctly read and manage engine parameters, ensuring proper performance and fuel management.

3. O2 Sensor and Knock Sensor Integration:

o The conversion harness typically includes connections for important sensors like oxygen sensors (O2) and knock sensors, which help the engine’s ECU monitor and adjust fuel-air ratios and ignition timing, leading to better performance and efficiency.

4. Compatibility with the Vehicle’s Electrical System:

o Since the vehicle's wiring is usually set up for a different engine, the K-Swap harness allows the K-series engine’s components to plug into the factory wiring without needing to modify or splice into the vehicle’s stock harness. This simplifies the conversion process and reduces the risk of electrical problems or errors.

5. Throttle Pedal and Cruise Control Integration:

o In some K-Swap conversions, the new engine may use an electronic throttle (DBW – Drive By Wire). The conversion harness can also help integrate the electronic throttle control and throttle pedal, along with features like cruise control, if applicable.

6. Integration with the Fuse Box:

o The harness connects to the vehicle's fuse box and integrates with the vehicle's power distribution system, ensuring the correct fuses and relays are in place to protect the engine and electrical systems.

Applications of a K-Swap Conversion Harness:

1. Honda Civic and Integra K-Swap:

o The most popular application of the K-Swap conversion harness is in Honda Civics, Integras, and other Honda vehicles that originally came with a B-series or D-series engine. The K-series engine (K20, K24, etc.) is known for its higher performance, and swapping it into these vehicles is a common modification for enthusiasts looking to boost power.

2. Performance and Racing Builds:

o K-swaps are also popular in performance and racing builds, where people want to upgrade from an older engine platform to a more powerful and modern K-series engine. The K-series engines offer a significant performance improvement over older engines like the B-series, especially in terms of reliability, tunability, and overall power output.

3. Project Cars and Custom Builds:

o Car enthusiasts and builders often use K-Swap conversion harnesses when performing an engine swap in project cars or custom builds. The K-series engine is often chosen because it has a lot of aftermarket support, and it’s known for being relatively easy to modify and tune.

4. Honda CRX and Other Classic Honda Models:

o Vehicles like the Honda CRX, Civic EF, or older models from the Honda lineup are also popular candidates for K-Swap conversions. These cars may not have originally been designed to fit a K-series engine, but the K-Swap conversion harness makes it possible to do the swap with fewer electrical modifications.

Key Components of a K-Swap Conversion Harness:

1. Engine Wiring:

o This includes wires that connect various components of the engine (like the fuel injectors, ignition coils, sensors, etc.) to the ECU, ensuring that the engine runs properly and the ECU can monitor and adjust various parameters.

2. Connector Plugs:

o The harness is designed with the appropriate plugs to match the connectors on both the K-series engine and the vehicle’s existing electrical system. These connectors ensure a secure and reliable connection.

3. ECU Connections:

o The conversion harness will typically have an adapter that connects the K-series engine's ECU to the vehicle’s existing wiring, allowing the ECU to control engine functions such as fuel delivery, ignition timing, and other performance variables.

4. Fuse and Relay Integration:

o The harness will integrate with the vehicle’s fuse box to provide the necessary protection for the new engine components, ensuring proper power distribution and preventing electrical damage.

5. Grounding Wires:

o Proper grounding is essential for the safe operation of any electrical system, and the harness will include grounds for various engine components to ensure the system operates without electrical issues.

Advantages of Using a K-Swap Conversion Harness:

· Simplicity and Convenience: A K-Swap harness simplifies the swap by providing a pre-made wiring solution, making the swap process much more straightforward and less time-consuming. It saves you from having to custom wire the engine yourself.

· Reliability: Because the harness is designed specifically for the K-series engine and the vehicle’s chassis, it ensures a reliable electrical connection, reducing the risk of electrical problems or failure after the swap.

· Cost-Effective: Buying a ready-made K-Swap conversion harness can save time and money compared to making a custom harness or modifying the existing wiring.

· Cleaner Installation: The harness is designed to integrate smoothly with the vehicle’s factory wiring, leading to a cleaner, more professional installation.

Conclusion:

A K-Swap Conversion Harness is a critical component when swapping a Honda K-series engine (such as the K20 or K24) into a vehicle that wasn't originally designed for it. The harness ensures that all electrical connections between the engine, the vehicle’s factory wiring, and the ECU are properly made, allowing the swapped engine to function reliably and efficiently. This harness is particularly valuable in performance builds, project cars, and racing applications where the K-series engine is chosen for its power, tunability, and aftermarket support.
