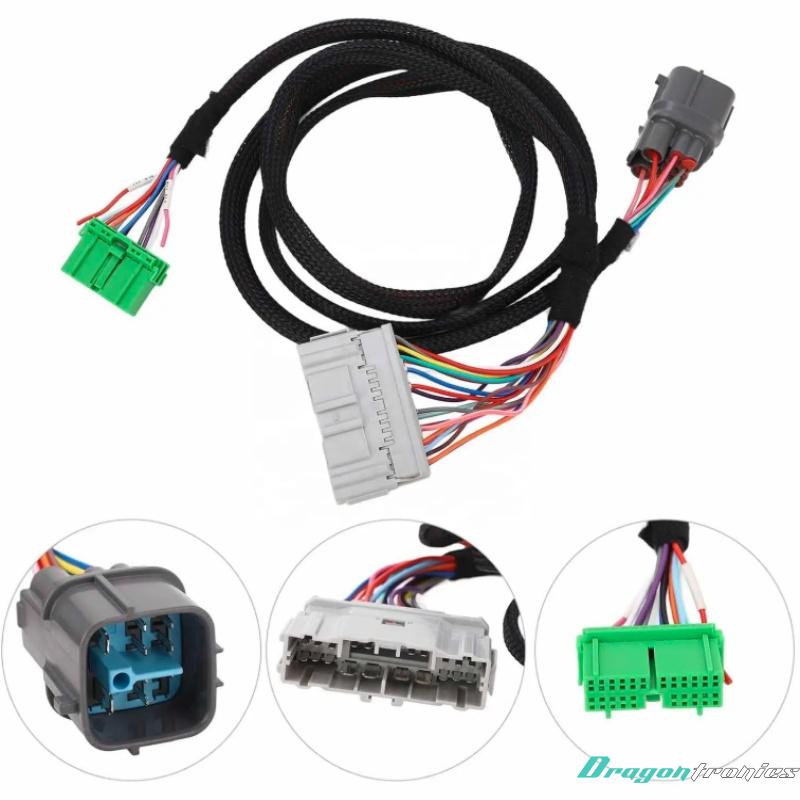

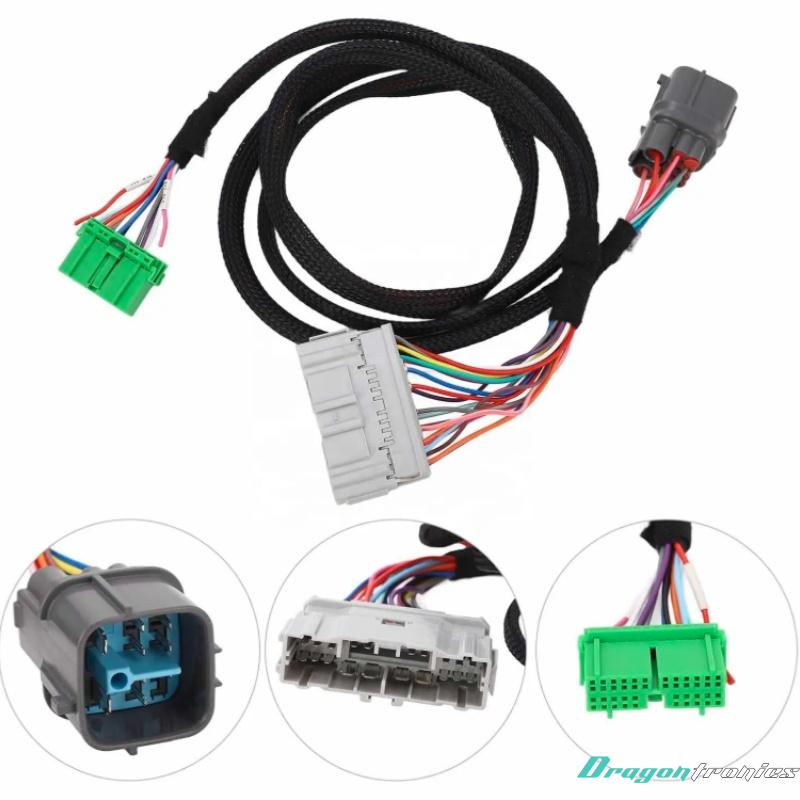

Chassis Specific Adapter Harness

Chassis Specific Adapter Harness is a specialized electrical wiring harness designed to adapt or interface a particular component or accessory (such as an aftermarket stereo, lights, or sensor) to a specific vehicle’s chassis or electrical system. It ensures compatibility between the vehicle’s factory wiring and the new component, allowing for easy installation without the need for splicing or rewiring.

Key Functions of a Chassis Specific Adapter Harness:

1. Vehicle-Specific Fitment:

o A chassis specific adapter harness is designed for a particular make, model, and year of vehicle, ensuring that it has the correct connectors and pinouts to match the vehicle's factory wiring system.

2. Plug-and-Play Installation:

o The primary function of this harness is to make installation easier by providing a plug-and-play solution. Instead of cutting or modifying the vehicle’s original wiring, the adapter harness allows you to connect aftermarket components directly to the factory wiring with the correct connectors.

3. Electrical Compatibility:

o The harness adapts the electrical signals between the vehicle's factory electrical system and aftermarket parts, such as stereos, lighting, fog lights, parking sensors, or camera systems. For example, when installing an aftermarket radio, the chassis-specific adapter will ensure the new radio connects correctly to the vehicle’s power, speaker wiring, and other systems like steering wheel controls or the antenna.

4. Preventing Wiring Issues:

o It ensures proper signal translation (such as voltage or resistance differences) between the vehicle's system and the new accessory, preventing damage to the vehicle's electrical system or the aftermarket component.

5. Retaining Factory Features:

o Some adapter harnesses are designed to allow the retention of factory features. For instance, a stereo adapter harness might allow you to keep the factory steering wheel controls, backup camera, or vehicle-specific features (like the original display screen or dashboard integration) when installing an aftermarket radio.

Common Applications of Chassis Specific Adapter Harnesses:

1. Aftermarket Audio/Headunit Installations:

o A very common use of chassis-specific adapter harnesses is in the installation of aftermarket car stereos or head units. The adapter ensures that the new stereo system connects to the vehicle’s power, speakers, and factory wiring correctly, often enabling features like steering wheel controls, Bluetooth, or backup cameras.

2. Lighting and Fog Light Installations:

o When installing aftermarket fog lights, LED lighting, or other custom lighting kits, a chassis-specific adapter harness can make the wiring process much simpler, ensuring the new lights can be powered and controlled through the vehicle’s electrical system.

3. Rearview Cameras and Parking Sensors:

o If you're adding rearview cameras or parking sensors, a chassis-specific adapter harness can help integrate these systems into the vehicle’s existing wiring without the need for complicated rewiring.

4. Trailer Wiring:

o For vehicles that require a trailer wiring harness, the chassis-specific adapter allows for easy connection between the vehicle’s electrical system and the trailer lights, brakes, and other electrical components.

5. Upgrades for OEM Features:

o Some adapters allow the installation of upgraded OEM or aftermarket options, like a backup camera or OEM navigation, where the adapter provides the necessary wiring to fit newer components into older vehicle models.

6. Custom Modifications:

o For custom projects (such as performance modifications, luxury upgrades, or utility enhancements), a chassis-specific adapter harness ensures the integration of custom parts without compromising the vehicle’s existing electrical systems.

Example of a Chassis Specific Adapter Harness Use:

Imagine you're upgrading your car's radio to an aftermarket stereo system. Your vehicle’s factory stereo uses a unique wiring configuration and connector type. A chassis-specific adapter harness will be designed for your car’s make and model. This adapter harness will allow you to plug the new stereo directly into the factory wiring, bypassing the need to manually cut wires or deal with mismatched connectors.

Advantages of Using a Chassis Specific Adapter Harness:

· Ease of Installation: Simplifies the process of installing aftermarket components, making it accessible even for those with limited automotive wiring experience.

· No Need for Splicing Wires: Prevents the need to cut or splice into the vehicle’s original wiring, which can be time-consuming and risky.

· Prevents Electrical Issues: Ensures proper electrical connections and protects both the vehicle and the new parts from potential electrical problems or damage.

· Retains Factory Features: Often designed to preserve certain OEM features, such as steering wheel controls, the factory infotainment system, or safety features like sensors or cameras.

· Cost-Effective: Saves time and effort during installation, which can reduce labor costs if you're having a professional do the work.

Conclusion:

A Chassis Specific Adapter Harness is a highly useful tool for integrating aftermarket components with a vehicle's factory electrical system. By providing the correct connections and ensuring electrical compatibility, it simplifies installation and helps prevent issues like incorrect wiring, electrical damage, or feature loss. This adapter is commonly used for audio system upgrades, lighting installations, and other aftermarket modifications that need to interface with the vehicle's existing wiring system.
