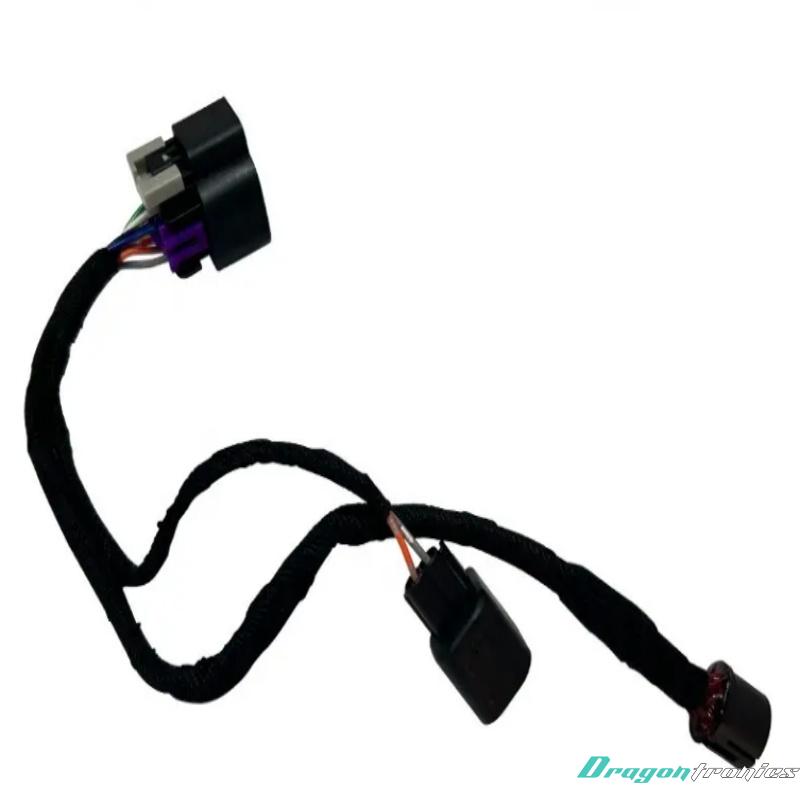

Rear View Camera Tailgate Wiring Harness

A Rear View Camera Tailgate Wiring Harness is an electrical assembly that connects the rear view camera system, typically installed on the vehicle's tailgate, to the vehicle’s main electrical system. This harness carries power and signal data to and from the camera, enabling it to provide a live feed to the driver (usually displayed on the dashboard screen) to assist with reversing or parking.

Functions of the Rear View Camera Tailgate Wiring Harness:

1. Power Supply:

o It provides electrical power to the rear view camera, which is essential for its operation. This includes powering the camera’s sensors and processing components that send the video feed to the in-vehicle screen.

2. Video Signal Transmission:

o It transmits the video signal from the rearview camera to the vehicle’s central display screen, allowing the driver to view what’s behind the vehicle. This signal can be analog or digital, depending on the system.

3. Tailgate Functionality:

o The harness enables the tailgate-mounted camera to function properly. Since the camera is located on the tailgate, the wiring must be flexible enough to work with the tailgate’s movement (opening and closing) without causing damage to the wires or connectors.

4. Signal Integration:

o It integrates with other systems such as the vehicle’s reverse lights and parking sensors. For instance, when the vehicle is put into reverse, the system activates the rearview camera, and the video feed is displayed on the dashboard screen.

Applications of the Rear View Camera Tailgate Wiring Harness:

1. Passenger Vehicles:

o In modern cars, trucks, and SUVs, the rear view camera has become a standard or optional feature, especially for safety and parking assist. The tailgate wiring harness connects the camera on the tailgate to the main vehicle systems.

2. Commercial Vehicles:

o Large vehicles, such as delivery trucks and vans, also use rear view cameras for safety, especially when reversing in tight spaces. The tailgate wiring harness is essential for connecting the camera to the vehicle’s display and power source.

3. Aftermarket Installations:

o Many vehicles that don’t come with a factory-installed rear view camera can be upgraded with aftermarket systems. In such cases, a rear view camera tailgate wiring harness is required to properly connect the camera to the vehicle’s electrical system and display screen.

4. Off-Road and Utility Vehicles:

o Off-road vehicles and utility trucks often have rear cameras for safety and to help drivers when reversing in challenging conditions. A rear view camera tailgate wiring harness in these vehicles must be durable and able to withstand rough environments.

5. Replacement/Repair:

o If the original wiring harness becomes damaged (due to wear, accidents, or environmental factors like rust or corrosion), it can be replaced with a new or upgraded harness to restore functionality.

Key Points:

· Powering the Camera: Provides electrical power to the rearview camera for operation.

· Video Transmission: Carries the video signal from the rear camera to the vehicle’s display screen.

· Flexibility: Must be flexible and durable enough to handle the motion of the tailgate, which opens and closes.

· Integration: It may integrate with other systems, such as reverse lights or parking sensors, to provide a comprehensive safety solution.

In summary, the Rear View Camera Tailgate Wiring Harness is an essential component in vehicles equipped with rear cameras, enabling the camera to function by providing power, transmitting video signals, and integrating with other safety systems for reversing and parking.
