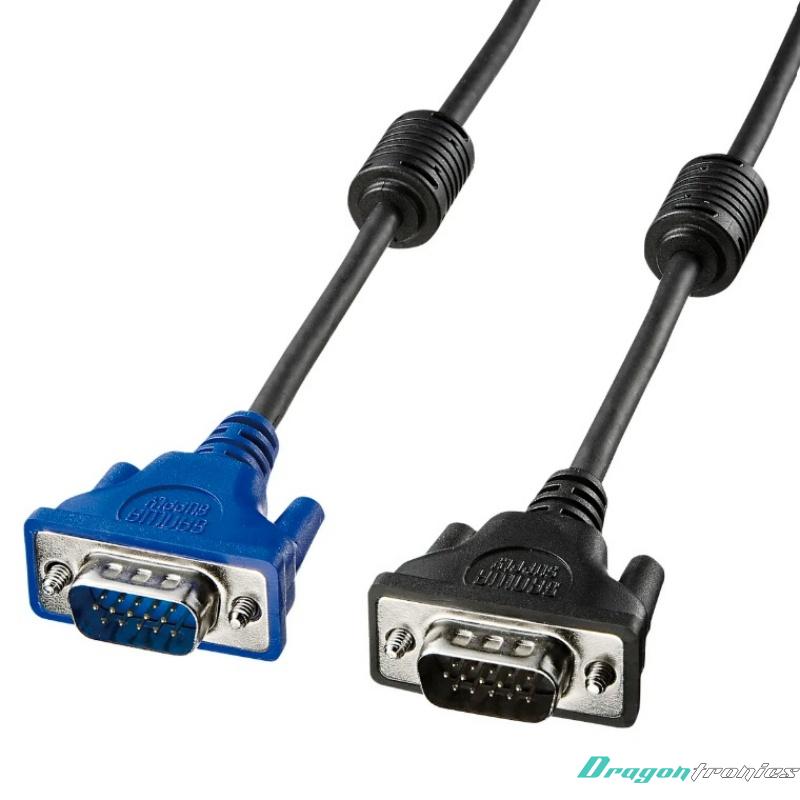

D-sub 15pin to D-sub 15pin VGA cable 1.5M Deluxe D-Sub Cable

A D-sub VGA cable is a type of video cable used to transmit analog video signals between devices, typically a computer and a monitor, or other display devices. The "D-sub" refers to the type of connector used, specifically the D-subminiature connector, and "VGA" refers to Video Graphics Array, which is a display standard that was widely used for analog computer monitors and graphics cards.

Key Features of a D-sub VGA Cable:

1. D-sub Connector:

o The D-sub connector, often called D-Subminiature, is a type of electrical connector that is widely used for video, audio, and data transfer. The "D" in D-sub comes from its characteristic D-shaped metal shield that surrounds the pins, providing protection and ensuring a secure connection.

o In the case of VGA, the connector is typically the 15-pin D-sub connector, which features 15 pins arranged in three rows (usually 5 pins per row).

2. VGA (Video Graphics Array):

o VGA is an analog video standard that was introduced by IBM in 1987. It was a major standard for computer graphics and video output, offering resolutions up to 640x480 pixels and a color depth of up to 256 colors. Although newer digital standards like HDMI and DisplayPort have replaced VGA in many modern devices, VGA is still used in some cases, particularly for older equipment or budget-friendly monitors.

o VGA cables carry analog signals for video, meaning they transmit data as continuous voltage levels, rather than the discrete, binary signals used in digital formats like HDMI.

3. Cable and Wiring:

o The VGA cable itself typically consists of multiple wires that carry different video signals. These include the red, green, and blue components of the RGB color signal, along with horizontal and vertical sync signals, and a ground connection. The cable is shielded to protect the analog signals from interference and signal degradation.

4. Male-to-Male or Male-to-Female:

o The VGA cable often comes in either a male-to-male or male-to-female configuration. In a male-to-male configuration, both ends of the cable feature a 15-pin male D-sub connector. In the male-to-female version, one end features a male connector, while the other end has a female connector.

Applications of a D-sub VGA Cable:

1. Connecting Computers to Monitors:

o One of the most common uses for a D-sub VGA cable is to connect a desktop computer or laptop to an external monitor. Many older monitors and projectors still rely on VGA inputs for video signal, especially in settings where legacy equipment is used.

2. Projectors:

o Projectors, particularly older models, often use VGA connections to receive video input from a laptop or computer. The VGA cable carries the analog signal from the computer's graphics card to the projector's display.

3. Video Output Devices:

o VGA cables are also used in other video output devices like gaming consoles (some older versions), video players, and other AV equipment that still supports the VGA standard.

4. Legacy Equipment:

o Older televisions and display devices that still have VGA input ports will often use VGA cables to connect to computers or older gaming consoles.

Advantages of D-sub VGA Cables:

1. Widely Compatible (for Older Devices):

o VGA remains compatible with a wide range of legacy devices such as older monitors, projectors, and desktop computers. If you're using older equipment that doesn't support HDMI or DisplayPort, a D-sub VGA cable might be the only way to connect devices.

2. Simple and Reliable:

o The VGA standard is simple to use and does not require any special software or digital processing. It’s essentially a plug-and-play connection in many cases, though it does require an analog signal to be processed by the connected devices.

3. Cost-Effective:

o VGA cables are generally inexpensive and are often included with older devices. For basic video transfer without the need for digital processing or higher resolutions, a VGA cable can be a cheap and reliable option.

4. Widely Available:

o Due to its widespread use in the past, VGA cables and connectors are still commonly available in many electronic stores, online retailers, and as spare parts.

Disadvantages of D-sub VGA Cables:

1. Analog Signal Limitation:

o VGA only supports analog signals, which means the signal quality can degrade over longer cable distances due to interference and signal loss. This results in lower picture quality compared to digital signals like HDMI or DisplayPort.

2. Lower Resolution and Quality:

o VGA supports lower resolutions and color depth than newer digital standards like HDMI, which can support much higher resolutions (up to 4K, 8K) and better color accuracy. VGA is often limited to 640x480 or 1024x768 resolutions, which are insufficient for modern high-definition applications.

3. No Audio Support:

o Unlike HDMI, VGA is a video-only cable. It cannot transmit audio signals. This is an issue for modern setups where you may want both video and audio through a single cable, as HDMI or DisplayPort would provide.

4. Bulkier and Older:

o The 15-pin D-sub connector is larger and bulkier than modern digital connectors like HDMI or USB-C, which can carry both video and audio in a smaller, more compact form. This can make VGA cables harder to manage and more cumbersome in certain setups.

Conclusion:

A D-sub VGA cable is a type of analog video cable used for transmitting video signals from a computer, laptop, or other video sources to a monitor, projector, or display device. It uses a 15-pin D-sub connector to carry RGB (red, green, blue) video signals, along with synchronization signals. VGA cables were widely used before the advent of modern digital connections like HDMI and DisplayPort, but they are still useful for connecting legacy devices and older displays that only support analog video.

Despite its limited resolution and lack of audio support, the VGA cable remains a reliable, cost-effective solution for older equipment or basic video needs, although it has largely been replaced by newer digital technologies in modern devices.
