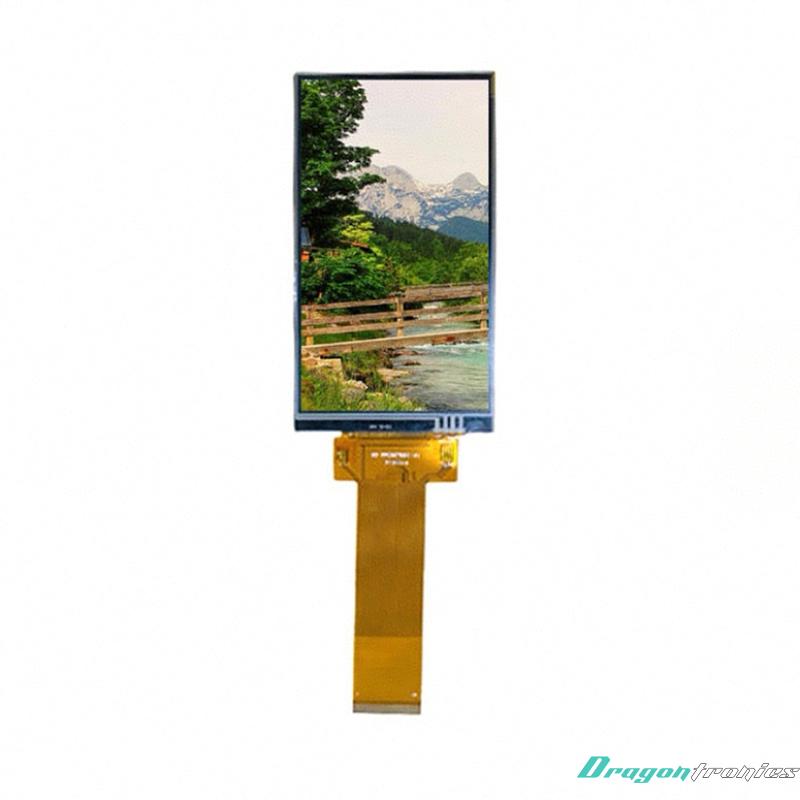

5 inch 480x854 SPI RGBI Interface 12LEDs Backlight IPS TFT LCD Panel Display Module

Product description: 5" IPS TFT LCD Display Module For Raspberry Pi Model: HTM-H050A7-B2-HI Type: HI driver-free module Display pixels: 800x480 Px Overall dimensions (mm): 121.7x96x6.5 Display inches: 5.0" Effective
INQUIRY

5.0" IPS TFT LCD Module – HTM-H050A7-B2-HI

1. Specifications

Parameter	Description
Model	HTM-H050A7-B2-HI
Display Type	HI driver-free IPS TFT LCD Module
Display Pixels	800 × 480 px
Display Size	5.0 inch
Overall Dimensions (W × H × T)	121.7 × 96 × 6.5 mm
Effective Display Area (W × H)	108 × 64.8 mm
Viewing Angle	IPS full viewing angle
Brightness	500 cd/m²
Interface	HI / VGA
Power Supply Voltage	5.0 V
Operating Temperature	-20°C to 70°C
Driver IC	To Be Determined (T.B.D)
Special Instructions	Anti-static, ESD protection 8 kV
Application	Industrial computers, intelligent equipment

Specification Notes

• 800×480 Resolution:
o WVGA resolution with RGB sub-pixels for clear graphics and text
o Suitable for industrial computing and embedded applications

• IPS Full Viewing Angle:
o Wide viewing angles with minimal color shift
o Maintains consistent image quality from all directions

• High Brightness (500 cd/m²):
o Good readability in moderately bright indoor environments

• HI/VGA Interface:
o Driver-free module simplifies integration with industrial computers and Raspberry Pi

• Operating Temperature (-20~70°C):
o Works reliably in standard industrial environments

• ESD Protection (8 kV):
o Protects module from electrostatic discharge, increasing reliability

2. Functions

Display Function

• Displays full-color text, graphics, icons, and GUI elements
• IPS panel ensures consistent image quality across wide viewing angles
• High brightness improves readability

Communication Function

• Supports HI and VGA interfaces for driver-free connection
• Compatible with industrial computers, Raspberry Pi, and embedded systems

Control Function

• Standard display operations supported:
o Display ON/OFF
o Sleep / standby mode
o Screen orientation adjustments
o Brightness control (via host system)

Performance Characteristics

• Fast response for TFT panels
• Wide viewing angles for multi-user display applications
• Reliable performance in standard industrial environments

3. Applications

Industrial Equipment

• Industrial computers and HMIs
• Intelligent equipment control panels
• Monitoring and visualization systems

Embedded Systems / IoT

• Raspberry Pi-based industrial projects
• Smart control and automation systems
• Portable data display and logging devices

Portable / Field Devices

• Field monitoring devices
• Data loggers and portable HMIs
• High-visibility embedded systems

Summary

The 5.0-inch IPS TFT LCD module (HTM-H050A7-B2-HI) features an 800×480 resolution, IPS full viewing angle, 500 cd/m² brightness, and a driver-free HI/VGA interface. Its anti-static design and industrial-grade temperature range (-20~70°C) make it ideal for industrial computers, intelligent equipment, and embedded applications requiring wide viewing angles and reliable full-color display.
