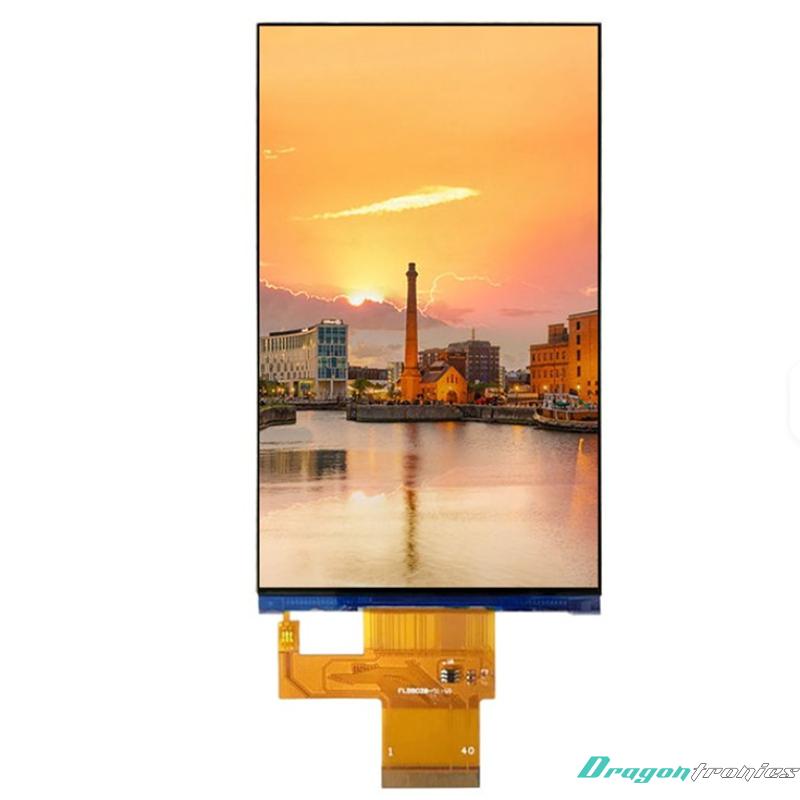

The 5.6-inch TFT LCD module (LCM-TFT056T1VGM2N30F-V01) features 640×480 resolution

Product description: 5.6 Inch TFT LCD Display Module | 640x480 Resolution With MIPI DSI • Model: LCM-TFT056T1VGM2N30F-V01 • Type: TFT standard display • Display pixels: 640x480 • Display inches: 126.5(W)x100(H)x9.5(D)
INQUIRY

5.6" TFT LCD Module – LCM-TFT056T1VGM2N30F-V01

1. Specifications

Parameter	Description
Model	LCM-TFT056T1VGM2N30F-V01
Display Type	TFT standard display
Display Pixels	640 × 480
Display Size / Module Dimensions (W × H × D)	126.5 × 100 × 9.5 mm
Active Area (AA)	112.9 × 84.67 mm
Viewing Angle	IPS full viewing angle
Backlight / Brightness	250 cd/m²
Interface	MIPI (with MIPI-RGB Bridge driver)
Pin	FPC 30-pin
Supply Voltage	3.3 V
Operating Temperature	-20°C to 70°C
Special Instructions	Anti-static ESD 8 kV
Application	Instrumentation, portable electronic devices

Specification Notes

• 640×480 Resolution:
o VGA resolution for clear and detailed display of text, graphics, and UI elements

• IPS Full Viewing Angle:
o Maintains consistent color and contrast across all viewing directions
o Suitable for multi-user or public-facing applications

• Backlight / Brightness (250 cd/m²):
o Adequate for indoor environments and portable electronics

• MIPI Interface with MIPI-RGB Bridge:
o High-speed interface for microcontroller or embedded applications
o Compact FPC 30-pin connection for easy integration

• Operating Temperature (-20~70°C) & ESD Protection (8 kV):
o Reliable operation in industrial and portable devices

2. Functions

Display Function

• Displays full-color text, graphics, and UI elements
• IPS panel ensures wide viewing angles with consistent color

Communication Function

• Uses MIPI interface for fast and efficient data transfer
• Compatible with embedded controllers and portable devices

Control Function

• Supports standard TFT operations:
o Display ON/OFF
o Sleep / standby mode
o Address window and orientation setting

Performance Characteristics

• Fast response typical of TFT panels
• High stability for instrumentation and portable devices
• Low-power operation suitable for embedded applications

3. Applications

Instrumentation

• Industrial meters and monitoring devices
• Control panels and measurement equipment

Portable Electronics

• Handheld instruments and data loggers
• Smart portable devices requiring VGA displays

Embedded Systems / IoT

• Microcontroller-based systems
• MIPI-compatible devices for industrial or consumer applications

Summary

The 5.6-inch TFT LCD module (LCM-TFT056T1VGM2N30F-V01) features 640×480 resolution, IPS full viewing angle, 250 cd/m² brightness, and a MIPI interface with 30-pin FPC. With ESD protection and wide operating temperature (-20~70°C), it is ideal for instrumentation, portable electronics, and embedded applications requiring reliable, wide-angle VGA display.
