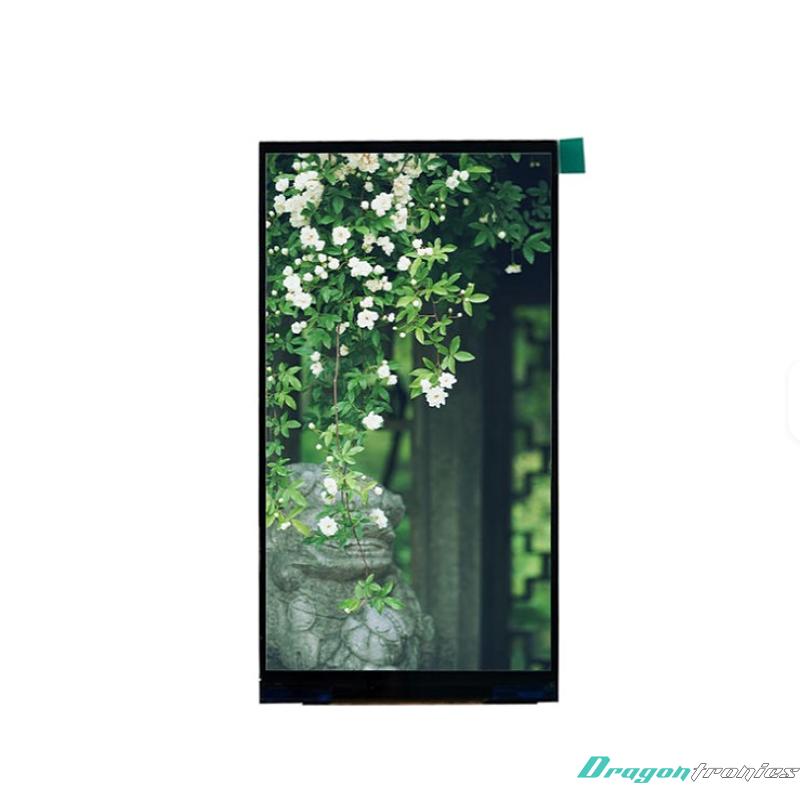

5.6 Inch TFT LCD Module

5.6" TFT LCD Module – HTM-H056A01-HI-A01

1. Specifications

Specification Notes

• 640×480 Resolution:
o VGA resolution suitable for clear text, graphics, and user interfaces

• Full Viewing Angle:
o Wide viewing angles with minimal color and contrast shift
o Suitable for multi-user industrial or consumer applications

• Brightness (200 cd/m²):
o Suitable for indoor industrial or consumer environments

• HI / VGA Interface:
o Driver-free module allows easy integration with industrial computers and embedded systems

• Operating Temperature (-10~60°C) & ESD Protection (8 kV):
o Reliable performance in standard industrial and home appliance environments

2. Functions

Display Function

• Displays full-color text, graphics, and icons
• Full-view panel ensures consistent image quality from all angles

Communication Function

• HI/VGA interface enables fast and simple connectivity
• Compatible with industrial control systems, medical devices, and embedded controllers

Control Function

• Supports standard display operations:
o Display ON/OFF
o Sleep / standby mode
o Screen orientation adjustment
o Brightness adjustment via host system

Performance Characteristics

• Fast response for industrial and consumer applications
• Reliable display performance for multi-user environments
• Low-power and driver-free operation

3. Applications

Industrial Control

• Control panels
• Monitoring systems
• Automation equipment

Home Appliances

• Smart displays for household devices
• Interface panels for home electronics

Medical Equipment

• Patient monitoring devices
• Medical instrumentation displays

Summary

The 5.6-inch TFT LCD module (HTM-H056A01-HI-A01) features a 640×480 resolution, full-view angle, 200 cd/m² brightness, and a HI/VGA interface. With ESD protection (8 kV), wide operating voltage (9–12V), and industrial-grade performance, it is ideal for home appliances, medical devices, and industrial control applications.
