3.5 inch TFT LCD ILI9486 3/4-wire SPI compatible 8bit/16bit parallel port 40PIN 12 'CLOCK 320x480 display

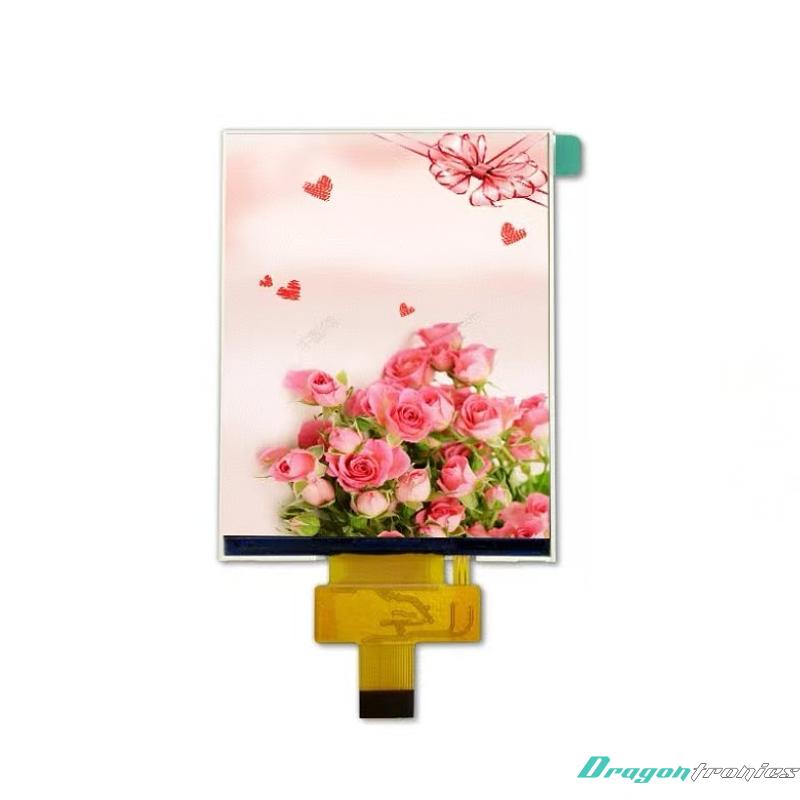

3.5" TFT LCD Module – ZH035SHV007NS (ILI9486)

1. Specifications

Specification Notes

• 320×480 Resolution:
o HVGA resolution suitable for clear text, graphics, and GUI display
o Supports RGB pixel structure for full-color output

• 12 o’clock Viewing Direction:
o Best image quality when viewed from the top
o Other angles may show contrast or color shift

• 200 nits Brightness / 200:1 Contrast:
o Suitable for indoor applications
o Provides basic display clarity for embedded systems

• Flexible Interface (MCU + SPI):
o 8/16-bit parallel MCU interface for high-speed data transfer
o 3/4-wire SPI for command and control
o 40-pin connection for integration flexibility

• ILI9486 Driver IC:
o Widely used controller for TFT displays
o Supports multiple interface modes and standard display functions

2. Functions

Display Function

• Displays full-color text, graphics, and user interface elements
• Suitable for GUI-based embedded applications

Communication Function

• Supports both parallel (8/16-bit MCU) and serial (SPI) communication
• Flexible integration with various microcontrollers

Control Function

• Supports standard TFT display operations:
o Display ON/OFF
o Sleep / standby mode
o Address window setting
o Screen orientation control

Performance Characteristics

• Reliable and stable performance with ILI9486 controller
• Flexible interface options for different system designs
• Optimized for cost-sensitive embedded applications

3. Applications

Embedded Systems / IoT

• Microcontroller platforms (STM32, Arduino, ESP32, etc.)
• Human-Machine Interface (HMI)
• Smart control panels

Consumer Electronics

• Portable display devices
• Entry-level GUI interfaces

Industrial Equipment

• Control panels
• Monitoring systems
• Instrument displays

Portable Devices

• Handheld tools
• Data loggers
• Field testing equipment

Summary

The 3.5-inch TFT LCD module (ZH035SHV007NS) features a 320×480 resolution, 12 o’clock viewing direction, and ILI9486 driver IC. With flexible 8/16-bit MCU and SPI interfaces, it offers a cost-effective and versatile display solution for embedded systems, industrial applications, and portable devices requiring reliable GUI performance.
