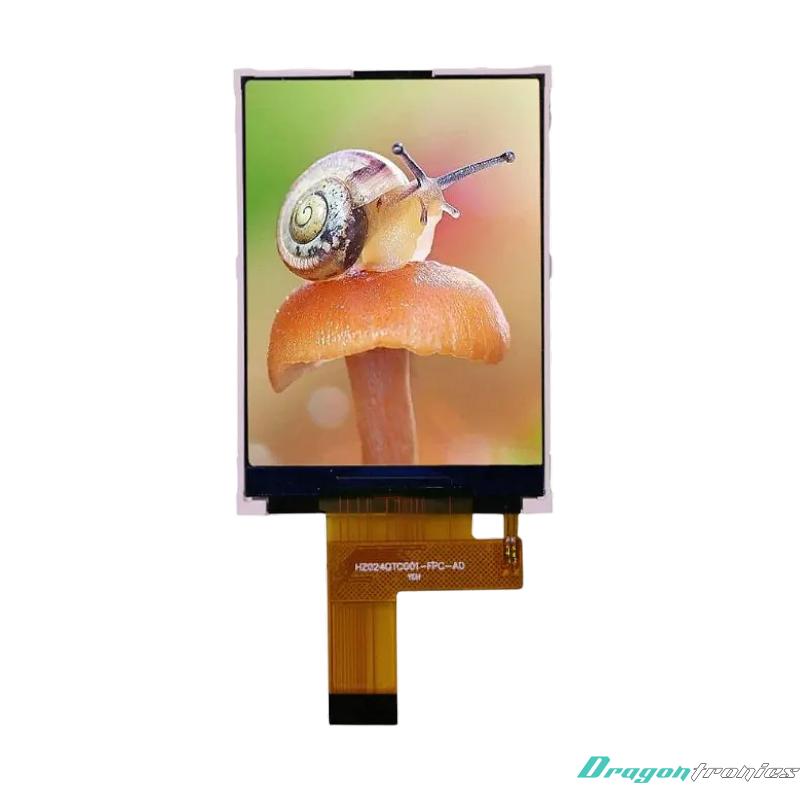

2.4 Inch TFT Color LCD Display Modules -2

1. Specifications

Specification Notes

• 320×240 Resolution (QVGA):
o Standard resolution suitable for text, icons, and basic graphics
o Optimized for compact embedded displays

• 16.7M Colors:
o Supports full-color (24-bit) display
o Enables rich and vibrant image rendering

• MIPI Interface:
o High-speed serial interface for efficient data transmission
o Suitable for modern embedded processors and compact designs

• LED Backlight:
o Provides uniform brightness and low power consumption

• Connector Mounting:
o Easy integration and replacement in embedded systems

2. Functions

Display Function

• Displays full-color text, graphics, icons, and UI elements
• Suitable for compact graphical interfaces

Communication Function

• Uses MIPI interface for high-speed communication
• Compatible with embedded processors and advanced microcontrollers

Control Function

• Supports standard display operations:
o Display ON/OFF
o Sleep / standby mode
o Address window setting
o Screen orientation control

Performance Characteristics

• Compact size with good color performance
• Efficient power consumption
• Suitable for modern embedded designs

3. Applications

Embedded Systems / IoT

• Microcontroller and processor-based systems
• Human-Machine Interface (HMI)
• Smart control panels

Consumer Electronics

• Portable devices
• Smart handheld products
• Compact multimedia displays

Industrial Equipment

• Monitoring systems
• Instrument displays
• Control interfaces

Portable Devices

• Data loggers
• Handheld testing equipment
• Compact display modules

 Summary

This 2.4-inch TFT color LCD module features a 320×240 (QVGA) resolution, 16.7M color support, and a high-speed MIPI interface with JD9852 driver IC. Its compact size, vibrant display, and efficient performance make it ideal for embedded systems, consumer electronics, and industrial applications requiring a small yet capable color display.
