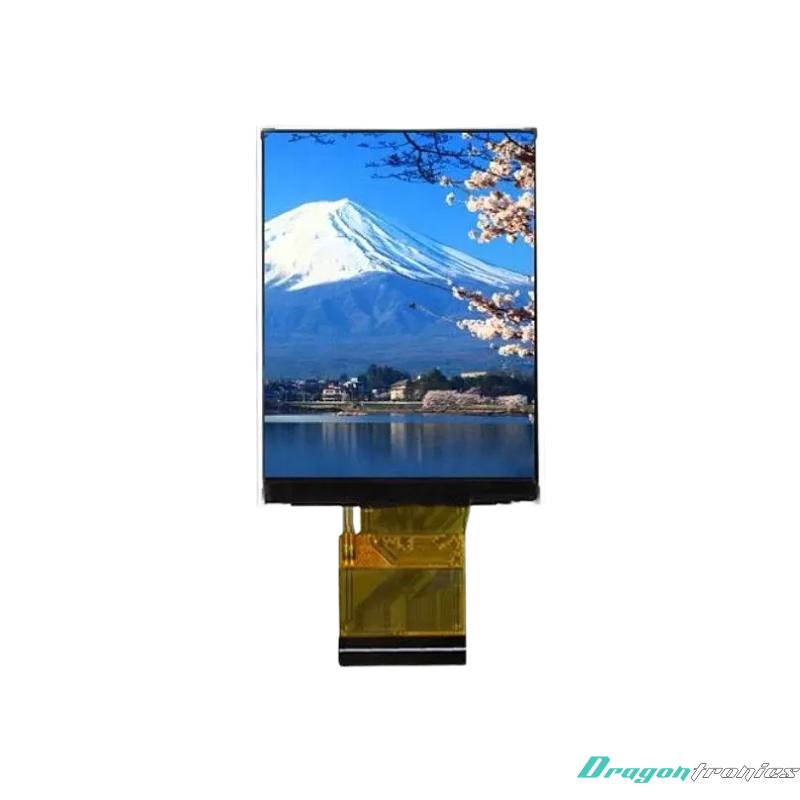

2.7 inch flexible transparent tft lcd display screen with brightness 300nits-13

2.7-Inch Flexible Transparent TFT LCD Display (300 nits, RGB + SPI)

1. Overview

This 2.7-inch flexible transparent TFT LCD display is designed for innovative and space-constrained applications. With its transparent structure and flexible form factor, it enables unique design possibilities while maintaining clear visibility. The module supports an 8-bit RGB interface with an additional SPI control interface, ensuring flexible integration into embedded systems.

2. Specifications

General

• Product Name: 2.7 Inch TFT LCD Display Screen
• Display Size: 2.7 inch
• Display Type: TFT LCD (Flexible, Transparent)

Display Characteristics

• Resolution: (Not specified)
• Brightness: 300 nits
• Viewing Direction: 3 o’clock
• Viewing Angle: Directional (optimized viewing from 3 o’clock direction)
• Transparency: Yes (transparent display panel)

Mechanical

• Outline Dimensions: 45.7 (H) × 62.6 (V) × 2.4 (T) mm

Interface & Connectivity

• Display Interface: 8-bit RGB (Vertical Stripe)
• Control Interface: 3-line SPI

3. Key Features

• Flexible and transparent display for innovative product designs
• 300 nits brightness for clear visibility
• Combination of RGB and SPI interfaces for flexible control and data transfer
• Slim and lightweight construction
• Directional viewing optimized for specific installation angles
• Suitable for next-generation display applications

4. Functions

• Displays graphical content, text, and symbols
• Enables overlay-style visuals on transparent surfaces
• Supports real-time data display in embedded systems
• Can be integrated into interactive or smart display solutions
• Allows creative UI/UX designs using transparency

5. Applications

• Smart wearable devices
• Augmented reality (AR) interfaces
• Smart windows and glass displays
• Automotive heads-up displays (HUD)
• Retail and advertising displays
• Industrial and IoT devices

6. Summary

The 2.7-inch flexible transparent TFT LCD display offers a unique combination of transparency, flexibility, and reliable performance. With 300 nits brightness and dual interface support (RGB + SPI), it provides versatile integration options. Its innovative design makes it ideal for advanced applications such as smart glass, wearable technology, and futuristic user interfaces.
