5.0 Inch TN TFT LCD Module (OTM8009A, MCU -2Interface)

Product description: 5 Inch IPS TFT LCD Module 720x1280 Resolution ILI9881 Driver IC 30 Pin MIPI DSI Interface LED Backlight Smart Home Viewing Direction: ALL Luminance: 350cd/㎡ Interface: MIPI Driving IC: ILI9881D-00
INQUIRY

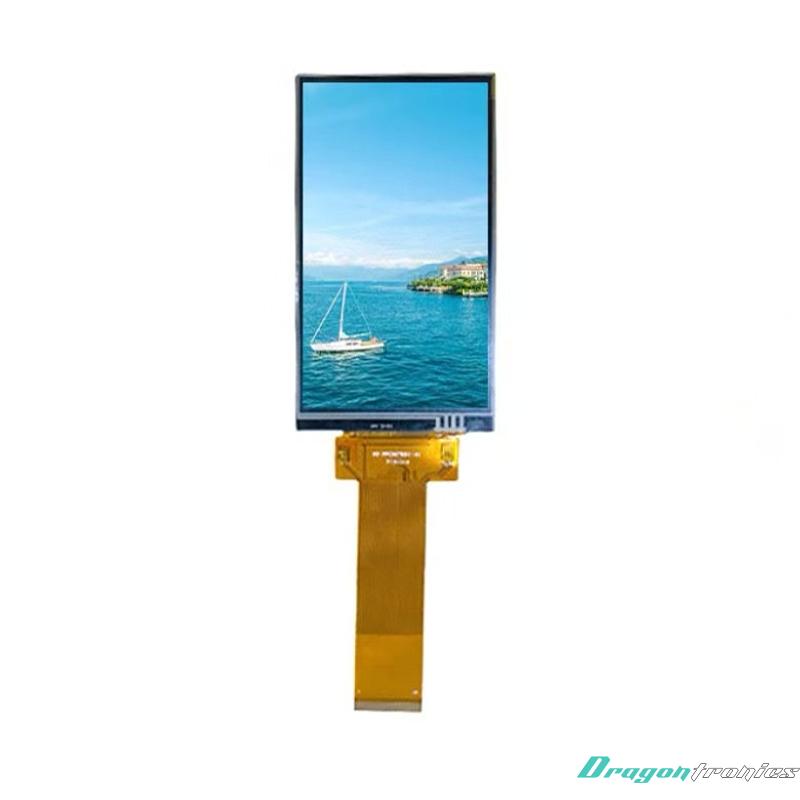

5.0" IPS TFT LCD Module (720×1280, MIPI DSI, ILI9881D)

1. Specifications

Parameter	Description
Display Type	IPS TFT LCD Module
Display Size	5.0 inch
Resolution	720 (RGB) × 1280 pixels
Viewing Direction	Full view (all viewing angles)
Active Area (W × H)	62.10 × 110.40 mm
Cover Lens Dimensions (W × H × T)	66.10 × 120.40 × 1.7 ± 0.05 mm
Brightness (Luminance)	350 cd/m²
Interface	MIPI DSI (30-pin)
Driver IC	ILI9881D-00T00GA
Backlight	LED
Application	Smart Home

Specification Notes

• 720×1280 Resolution:
o HD resolution in portrait format for sharp images and detailed UI
o Suitable for modern graphical interfaces and multimedia display

• IPS Full Viewing Angle:
o Consistent color and contrast from all directions
o Ideal for interactive and multi-user environments

• MIPI DSI Interface (30-pin):
o High-speed serial interface for efficient data transfer
o Commonly used in advanced embedded and smart devices

• Brightness (350 cd/m²):
o Suitable for indoor environments with good visibility

• ILI9881D Driver IC:
o Supports high-resolution display and MIPI communication
o Provides stable and efficient display control

2. Functions

Display Function

• Displays full-color graphics, text, icons, and multimedia content
• High resolution ensures sharp and detailed visuals

Communication Function

• Uses MIPI DSI interface for high-speed data transmission
• Compatible with advanced processors and embedded systems

Control Function

• Supports standard display operations:
o Display ON/OFF
o Sleep / standby mode
o Address window setting
o Screen orientation control

Performance Characteristics

• Wide viewing angles with IPS technology
• Smooth and high-quality display performance
• Optimized for modern smart device applications

3. Applications

Smart Home

• Smart control panels
• Home automation interfaces
• Smart display terminals

Embedded Systems / IoT

• Advanced embedded platforms
• Interactive control systems
• Smart IoT devices

Consumer Electronics

• Handheld smart devices
• Portable multimedia displays

Industrial Applications

• Monitoring systems
• Control interfaces
• Intelligent display terminals

Summary

This 5.0-inch IPS TFT LCD module features a 720×1280 HD resolution, full viewing angle, and MIPI DSI interface with ILI9881D driver IC. With its high-quality display performance and compact design, it is ideal for smart home systems, embedded applications, and modern interactive devices requiring sharp and vibrant visuals.
