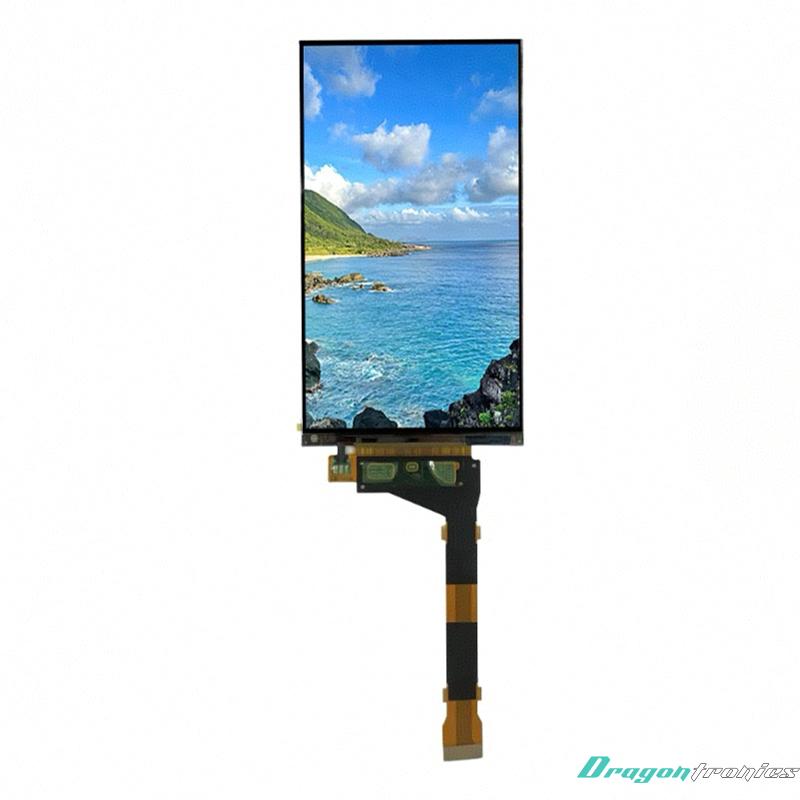

Display 5 inch 800*480 24 Bit RGB interface tft lcd touch screen display 5 inch square display

Product description: Application: IOT & Smart Home, Smart Product Interface: RGB Resolution: 800*480 Interface Type: 24 bits RGB Active Area: 108.0(W) * 64.8(H) Backlight: 18 LEDS, 6*3 Outline dimension: 120.7(W)x75
INQUIRY

5.0" TFT LCD Touch Display Module (800×480, 24-bit RGB Interface)

1. Specifications

Parameter	Description
Display Type	TFT LCD with Touch Panel
Display Size	5.0 inch
Resolution	800 × 480 pixels
Active Area (W × H)	108.0 × 64.8 mm
Module Outline (W × H × T)	120.7 × 75.8 × 4.93 mm
Interface	24-bit RGB interface
Backlight	LED (18 LEDs, 6 × 3 configuration)
Application	IoT, Smart Home, Smart Devices

Specification Notes

• 800×480 Resolution:
o WVGA resolution suitable for clear graphics, UI elements, and multimedia content
o Supports full-color rendering with RGB sub-pixels

• 24-bit RGB Interface:
o Supports up to 16.7 million colors
o High-speed data transmission for smooth and detailed display

• Integrated Touch Panel:
o Enables user interaction for control and navigation
o Ideal for modern smart interfaces

• LED Backlight (18 LEDs):
o Provides uniform brightness across the screen
o Suitable for indoor and semi-bright environments

• Compact Form Factor:
o Standard 5-inch size for easy integration into embedded systems

2. Functions

Display Function

• Displays full-color text, graphics, icons, and UI elements
• Suitable for rich graphical interfaces

Communication Function

• Uses 24-bit RGB interface for high-speed pixel data transmission
• Compatible with embedded processors and display controllers

Touch Function

• Provides interactive touch input
• Enables intuitive user interface control

Control Function

• Supports standard display operations:
o Display ON/OFF
o Sleep / standby mode
o Screen orientation control
o Brightness control (via system design)

Performance Characteristics

• Smooth and vivid display performance
• Reliable operation for smart and connected devices
• Optimized for embedded and IoT applications

3. Applications

IoT & Smart Home

• Smart home control panels
• IoT dashboards
• Smart appliance interfaces

Smart Devices

• Interactive control displays
• Touch-enabled consumer electronics

Embedded Systems

• Human-Machine Interface (HMI)
• Automation and control systems

Industrial & Commercial

• Monitoring systems
• Control panels
• Smart terminals

Summary

This 5.0-inch TFT LCD touch display module features an 800×480 resolution, 24-bit RGB interface, and integrated touch functionality. With its compact design and LED backlight, it is ideal for IoT, smart home, and embedded applications requiring a responsive and high-quality user interface.
