5-Inch TN TFT LCD Display Modules with 480*854 Pixels MCU Interface and OTM8009A Driver IC

Product description: Resolution: 480*854 Operating Temperature: -20~ 70 °C Outline Dimension: 66.4(W)*120.05(H)*2.1(T) mm Active Area: 61.56 (W)* 109.53 (H) mm Outline Dimension: 66.4(W)*120.05(H)*2.1(T) mm Viewing A
INQUIRY

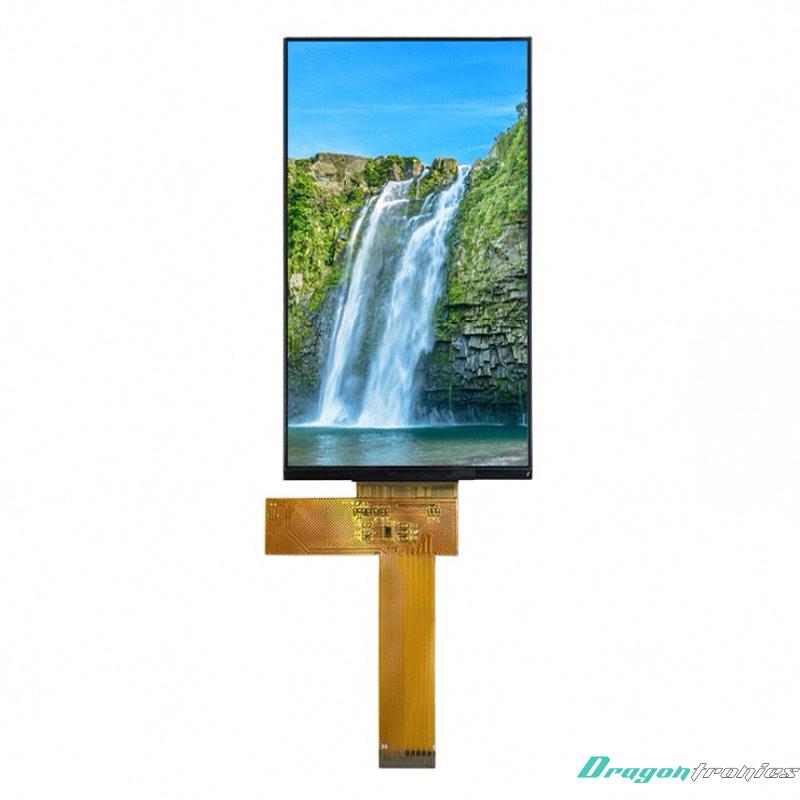

5.0" TN TFT LCD Module (OTM8009A, MCU Interface)

1. Specifications

Parameter	Description
Display Type	TN TFT LCD Module
Display Size	5.0 inch
Resolution	480 × 854 pixels
Viewing Direction	12 o’clock
Active Area (W × H)	61.56 × 109.53 mm
Module Outline (W × H × T)	66.4 × 120.05 × 2.1 mm
Interface	MCU interface
Driver IC	OTM8009A
Operating Temperature	-20°C to 70°C

Specification Notes

• 480×854 Resolution:
o High-resolution display in portrait format
o Suitable for detailed graphics, text, and modern UI layouts

• TN Panel (Twisted Nematic):
o Cost-effective with fast response time
o Limited viewing angles compared to IPS panels

• 12 o’clock Viewing Direction:
o Optimized for viewing from the top side
o Off-angle viewing may cause contrast or color shift

• MCU Interface:
o Parallel interface suitable for microcontroller-based systems
o Enables direct control of display data and commands

• OTM8009A Driver IC:
o Supports high-resolution TFT displays
o Provides stable performance and standard control functions

2. Functions

Display Function

• Displays full-color graphics, text, icons, and UI elements
• Supports high-resolution rendering for modern interfaces

Communication Function

• Uses MCU interface for data and command transmission
• Compatible with embedded systems and microcontrollers

Control Function

• Supports standard TFT operations:
o Display ON/OFF
o Sleep / standby mode
o Address window setting
o Screen orientation control

Performance Characteristics

• Fast response time typical of TN panels
• Optimized for portrait display applications
• Reliable performance in standard industrial environments

3. Applications

Embedded Systems / IoT

• Microcontroller-based systems
• Human-Machine Interface (HMI)
• Smart control panels

Consumer Electronics

• Portable display devices
• Smart handheld products
• Entry-level multimedia interfaces

Industrial Equipment

• Monitoring systems
• Control panels
• Instrument displays

Portable Devices

• Data loggers
• Field service tools
• Handheld terminals

Summary

This 5.0-inch TN TFT LCD module features a 480×854 resolution, MCU interface, and OTM8009A driver IC. With its compact design and portrait-oriented display, it is well-suited for embedded systems, industrial equipment, and portable devices requiring a cost-effective, high-resolution display solution.
