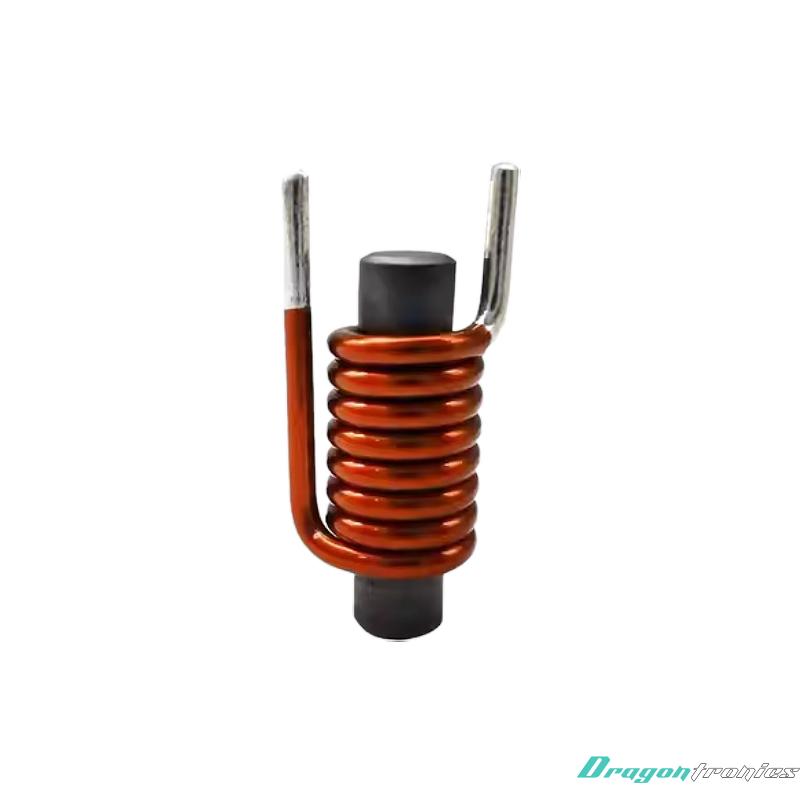

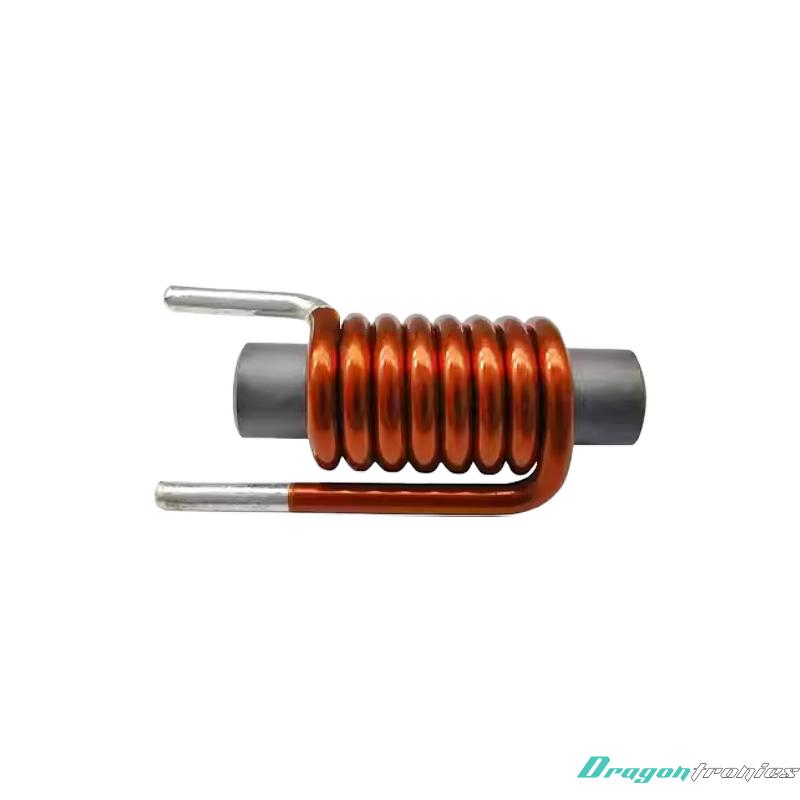

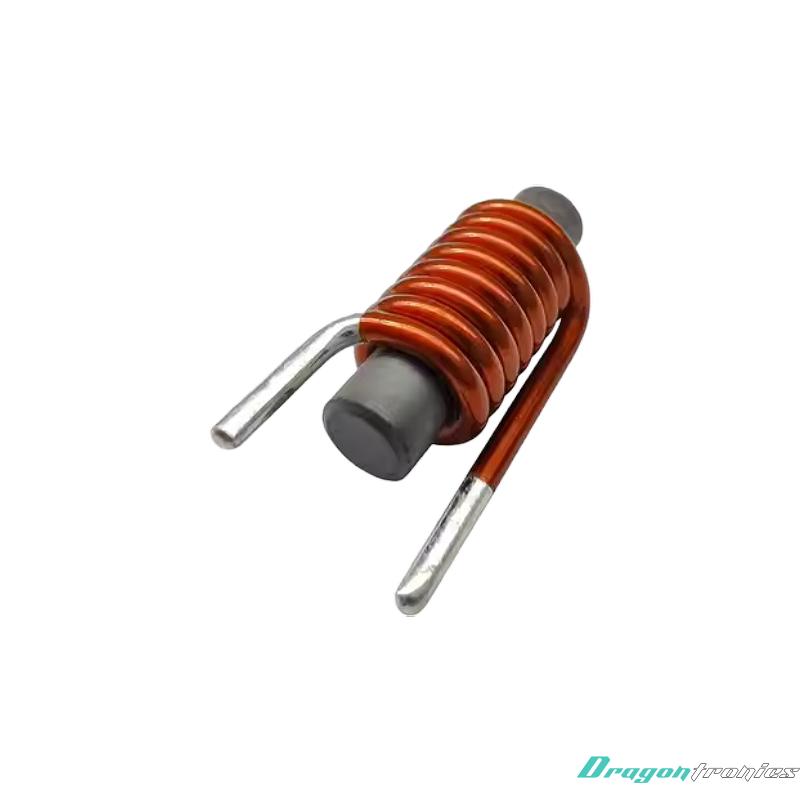

Radial lead inductor

How a Radial Lead Inductor Works:

1. Magnetic Field Creation:

· When an electric current flows through the coil of the inductor, a magnetic field is created around the coil. This magnetic field is proportional to the current flowing through the wire, with the magnetic flux increasing as the current increases.

2. Inductance:

· The coil's ability to resist changes in current is called inductance. The inductor stores energy in its magnetic field and opposes changes to the current flowing through it. When the current changes (either increasing or decreasing), the inductor generates an opposing voltage (according to Lenz's Law), which resists the change in current.

3. Function of the Radial Leads:

· The radial leads are simply the electrical connections that allow the inductor to be placed in a circuit. The leads are positioned radially (outward from the base) for easy insertion into a through-hole PCB (printed circuit board), making the component easy to mount and solder.

4. Energy Storage and Magnetic Field:

· The magnetic field is confined to the region inside and around the coil, and the energy is stored in the magnetic field when current flows. When the current is turned off or changes, the collapsing magnetic field can induce a voltage in the inductor that opposes the change, which is the core characteristic of an inductor's behavior.

5. Applications of Radial Lead Inductors: Radial lead inductors are commonly used in various electronic circuits, particularly those that require energy storage, filtering, or inductive coupling. Common applications include:

· Power Supplies: Radial lead inductors are frequently used in DC-DC converters, voltage regulators, and other power supply circuits to filter out ripple or smooth voltage.

· Filters: Inductors are widely used in LC filters (inductors combined with capacitors) to filter unwanted frequencies. Radial lead inductors can be found in power supply filters, audio filters, and RF filters.

· Chokes: Inductors used to block high-frequency noise are called chokes. Radial lead chokes are common in power supply lines to prevent electromagnetic interference (EMI) and radio frequency interference (RFI).

· Energy Storage: Radial lead inductors can be used in applications where energy storage in the magnetic field is important, such as in inductive energy storage systems or transformers.

· Radio Frequency (RF) Circuits: In RF circuits, radial lead inductors can be used to create tuned circuits or to block high-frequency signals while allowing low-frequency or DC signals to pass.

· Transformers: Some radial lead inductors can be part of transformers (in low-power applications) or used in coupling circuits where inductive coupling is required.
