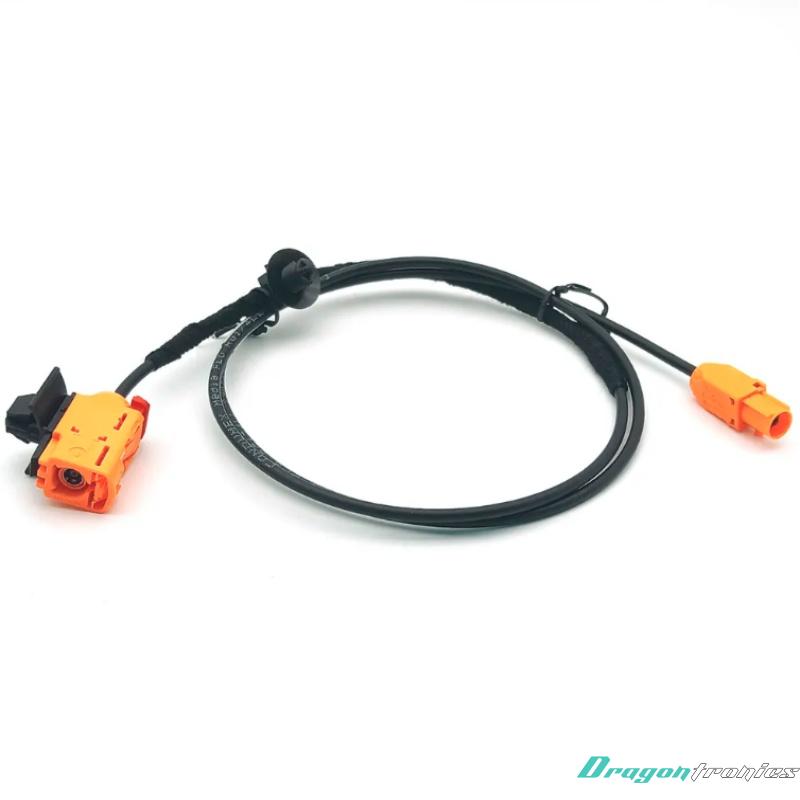

Male to Female RF Coaxial Cable For GM Rearview Camera Rear Closure

An RF coaxial cable for a GM rearview camera rear closure is a specialized cable designed to connect the rearview camera to the vehicle's display system. This cable ensures that the video signal from the rearview camera is transmitted clearly and reliably to the display unit inside the vehicle. Here's a detailed explanation:

Specifications

1. Cable Structure:

· Center Conductor: Typically made of copper or aluminum, which carries the video signal.

· Insulating Layer: Surrounds the center conductor to prevent signal loss.

· Conductive Shield: Made of braided copper or aluminum, it shields the signal from electromagnetic interference (EMI).

· Outer Insulating Jacket: Protects the cable from physical damage and environmental factors

2. Connectors:

· Types: Common types include F-type or custom connectors specific to GM vehicles, ensuring secure and reliable connections

· Waterproof and Heat-Resistant: Designed to withstand environmental factors such as moisture and high temperatures

3. Cable Types:

· Low Loss Coaxial Cables: Used to minimize signal loss over the distance between the rearview camera and the display unit

Functions

1. Signal Transmission:

· High-Frequency Signals: Transmits high-frequency video signals from the rearview camera to the vehicle's display system with minimal loss

2. Shielding:

· EMI Protection: The conductive shield prevents electromagnetic interference, ensuring a clear video signal

Applications

1. Rearview Camera Systems:

· Video Signal Transmission: Connects the rearview camera to the vehicle's display unit, allowing the driver to see the area behind the vehicle when reversing

2. Safety and Convenience:

· Enhanced Visibility: Provides a clear video feed from the rear of the vehicle, enhancing safety and convenience during parking and reversing

By ensuring reliable signal transmission and protection from interference, the RF coaxial cable for GM rearview camera rear closure plays a crucial role in the functionality and efficiency of the vehicle's rearview camera system.
