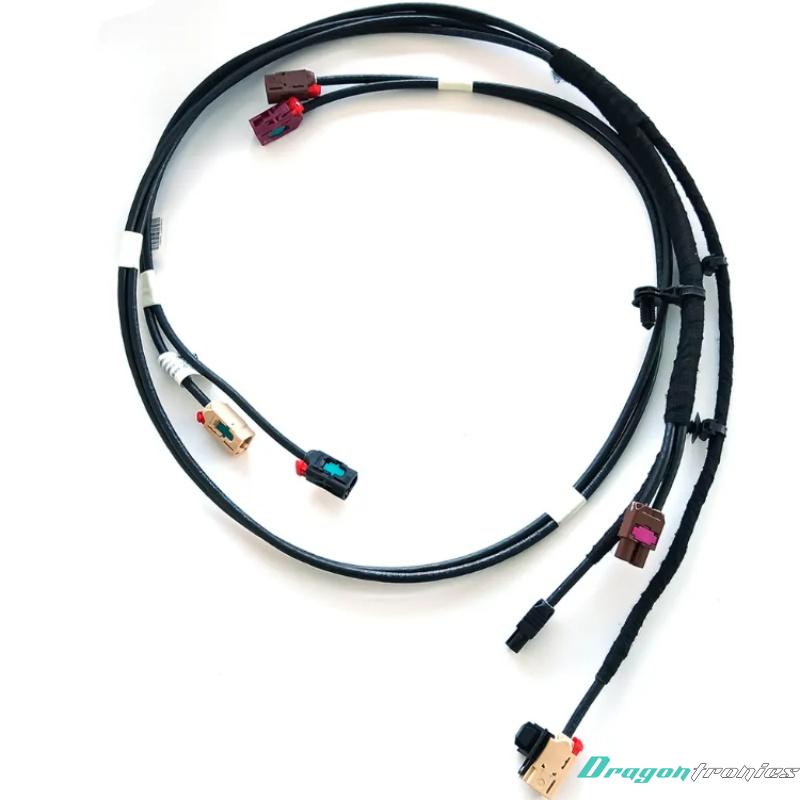

Male Female Antenna Coaxial Cable Assembly

An Antenna Coaxial Cable is a type of electrical cable specifically designed to transmit radio frequency (RF) signals between an antenna and a receiving or transmitting device, such as a radio, television, or wireless communication equipment. This cable is commonly used in various applications, including broadcasting, telecommunications, satellite systems, and Wi-Fi networks.

Function of Antenna Coaxial Cable:

· Signal Transmission: The primary function of an antenna coaxial cable is to carry RF signals from an antenna to a receiver (or vice versa). The coaxial design of the cable ensures that the signal remains intact and travels without significant loss or interference over a long distance.

· Minimizes Signal Loss: The design of coaxial cables helps to minimize signal attenuation (signal loss) and electromagnetic interference (EMI), which is particularly important when transmitting RF signals over long distances. The shield and insulation ensure that the signal remains clear and strong.

· Versatility: Antenna coaxial cables are used in many different RF systems, including television broadcasts, radio communication, Wi-Fi networks, cellular communication, satellite TV, GPS systems, and more. They are integral in ensuring that signals are transmitted clearly and effectively between the antenna and the devices.

Types of Antenna Coaxial Cable:

1. RG-6 Coaxial Cable:

o One of the most common types of coaxial cables used for TV antennas, satellite dishes, and cable television installations. It has a thicker insulation layer compared to other coaxial cables, offering better protection against signal loss over longer distances.

2. RG-59 Coaxial Cable:

o Often used for shorter runs in TV installations and security systems, RG-59 has thinner insulation than RG-6 and is more flexible. It is typically used for lower-frequency signals over short distances.

3. RG-11 Coaxial Cable:

o RG-11 is a thicker, higher-quality coaxial cable often used for longer distances, such as in satellite installations or large-scale antenna systems. It is designed to minimize signal loss over extended distances.

4. LMR (Low Loss Coaxial Cable):

o LMR cables are designed for applications requiring minimal signal loss and are commonly used in high-performance systems like wireless communications, GPS, or mobile base stations.

5. Heliax Coaxial Cable:

o A high-quality, high-performance coaxial cable used in professional broadcast systems and telecommunications. It provides excellent signal transmission with minimal loss, even over long distances.

Applications of Antenna Coaxial Cable:

1. Television and Radio Broadcasts:

o Coaxial cables are used to transmit signals from the antenna to the TV or radio receiver, ensuring high-quality audio and video signals without significant interference.

2. Satellite Systems:

o Coaxial cables are essential in connecting the satellite dish to the receiver, ensuring the signal from the satellite is transmitted clearly for watching satellite TV or receiving data.

3. Wi-Fi Networks:

o In Wi-Fi systems, coaxial cables are used to connect antennas to wireless routers or access points, ensuring effective wireless signal transmission for internet access.

4. Two-Way Radios and Communication Systems:

o Coaxial cables are often used in two-way radio systems, including amateur radio, military communications, and public safety communications, as they are ideal for transmitting RF signals over long distances.

5. Cellular Networks:

o Cellular antenna systems use coaxial cables to connect antennas to base stations or transmitters, ensuring stable communication across mobile networks.

6. GPS Systems:

o Coaxial cables are used in GPS antennas to provide precise, real-time location data by transmitting signals from GPS satellites to the GPS receiver.

7. Networking and Data Communication:

o In some cases, coaxial cables are used for data transmission in Ethernet or broadband networks, particularly in older systems (e.g., cable modems or coaxial internet networks).

Conclusion:

An Antenna Coaxial Cable is an essential component for transmitting radio frequency (RF) signals between an antenna and a receiver or transmitter. Its design, which includes a central conductor, insulation, shielding, and an outer jacket, ensures the efficient and safe transmission of signals while minimizing interference and signal loss.

Coaxial cables are widely used in telecommunications, television broadcasting, satellite systems, Wi-Fi networks, and many other RF applications due to their reliability, durability, and efficiency.
