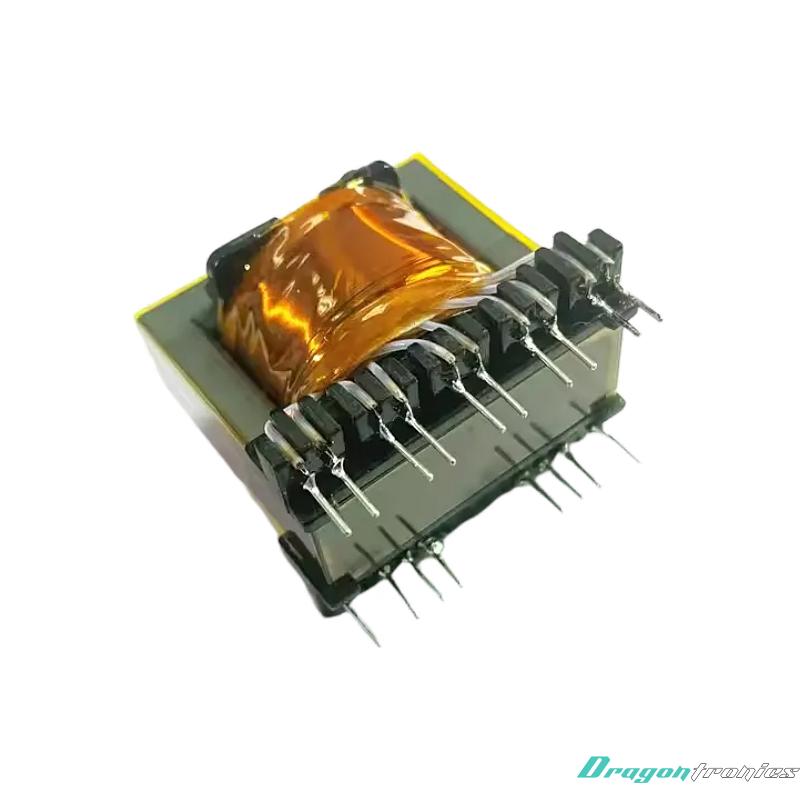

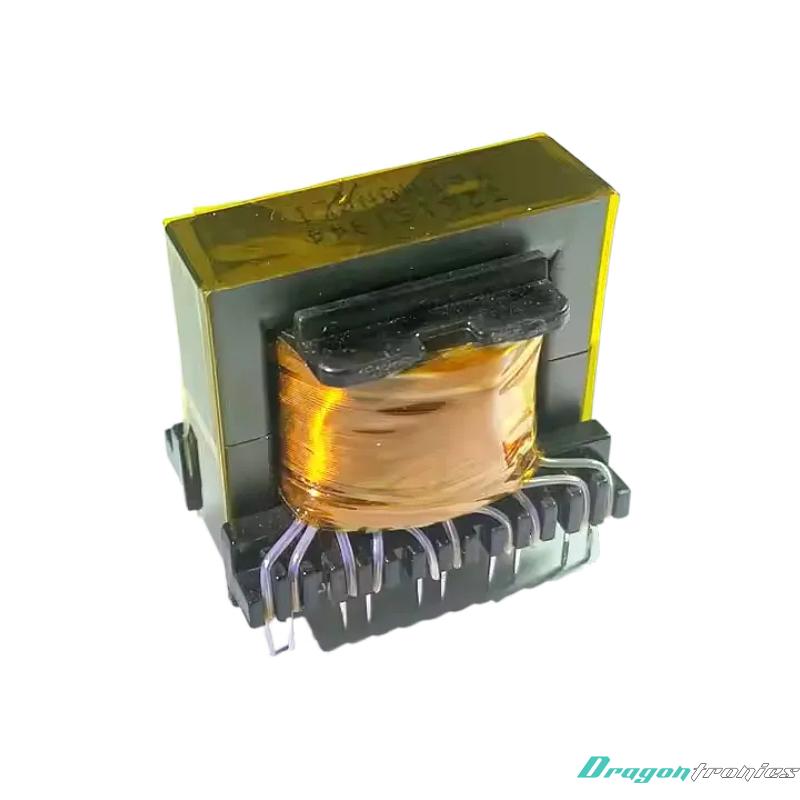

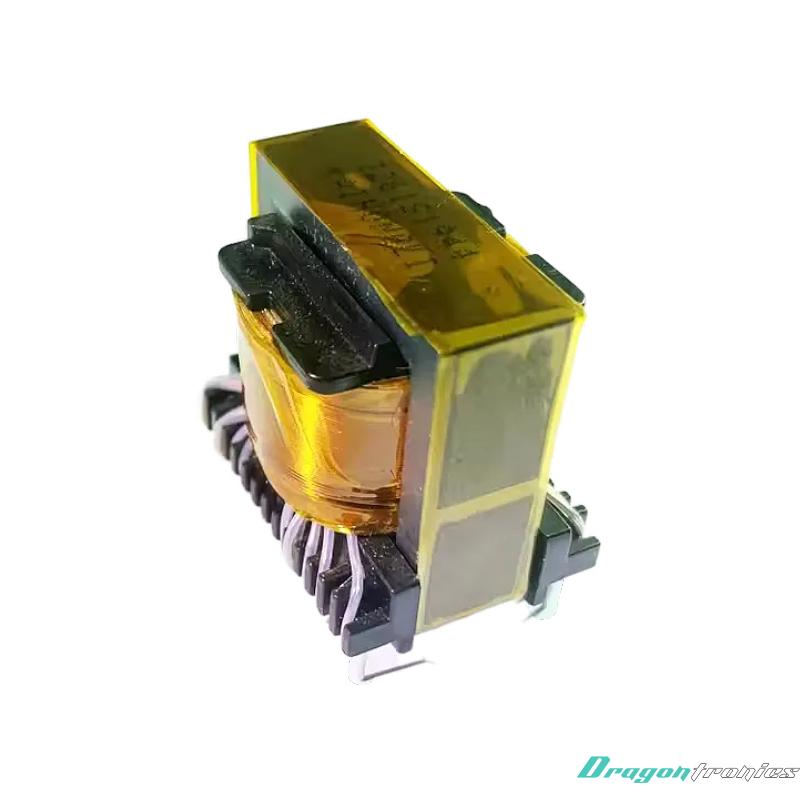

High Temperature Transformer for Renewable Energy Systems

Basic Operation for High Temperature Transformers:

1. Electromagnetic Induction:
• A high-temperature transformer operates by transferring electrical energy from a primary winding to a secondary winding via a magnetic field. When alternating current (AC) passes through the primary coil, it creates a magnetic field that induces a voltage in the secondary coil, according to Faraday’s Law of Induction.
2. Magnetic Core:
• The magnetic core (typically made of high-grade silicon steel or amorphous alloys) provides a pathway for the magnetic flux between the primary and secondary windings. This core is designed to withstand heat without losing its magnetic properties.
3. Insulation and Cooling:
• As with all transformers, insulation is a critical part of the design. For high-temperature transformers, special attention is paid to the insulation system, which ensures that the windings do not short-circuit or break down due to heat. The transformer’s insulation can operate effectively at higher temperatures, while cooling systems work to maintain the core and windings within safe operating limits.
4. Temperature Management:
• The transformer’s design also includes temperature management systems to ensure that the core does not overheat. In oil-immersed high-temperature transformers, the oil circulates through the windings, absorbing heat and transporting it to the surface of the tank, where it is dissipated. In air-cooled systems, fans or heat exchangers may be used to improve airflow and heat dissipation.

Summary:

A high-temperature transformer is a specialized transformer designed to operate effectively in environments with elevated ambient temperatures. These transformers are equipped with advanced insulating materials, high-temperature cores, and cooling systems that enable them to perform reliably in industrial, aerospace, military, and high-power energy applications. They work by converting electrical energy via electromagnetic induction while ensuring that core losses are minimized and insulation remains intact, even under high thermal stress. These transformers are crucial for applications where heat
